Fusion of dual modalities of non-invasive sensory feedback for object profiling with prosthetic hands.

INTRODUCTION

Either non-invasive somatotopic or substitute sensory feedback is capable of conveying a single modality of sensory information from prosthetic hands to amputees. However, the neurocognitive ability of amputees to integrate multi-modality sensory information for functional discrimination is unclear. The purpose of this study was to assess the fusion of non-invasive somatotopic tactile and substitute aperture feedbacks for profile perception of multiple physical features during grasping objects.

METHODS

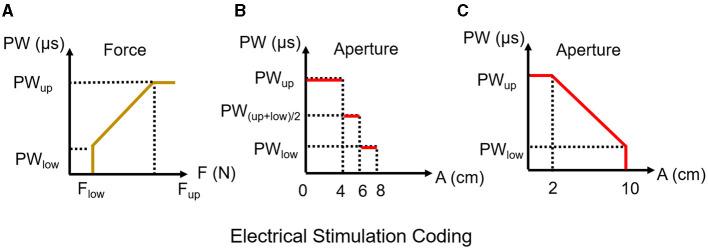

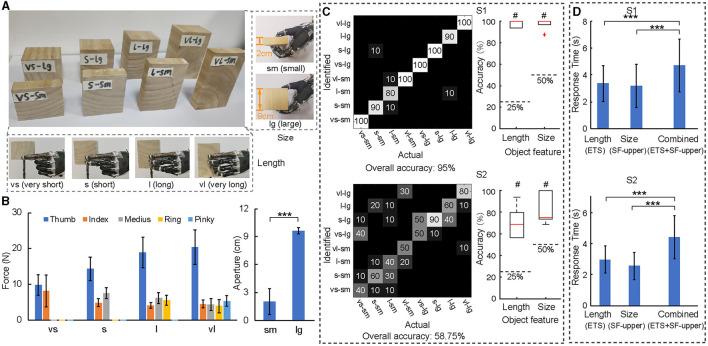

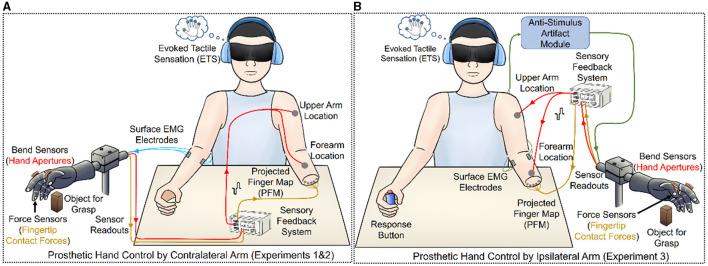

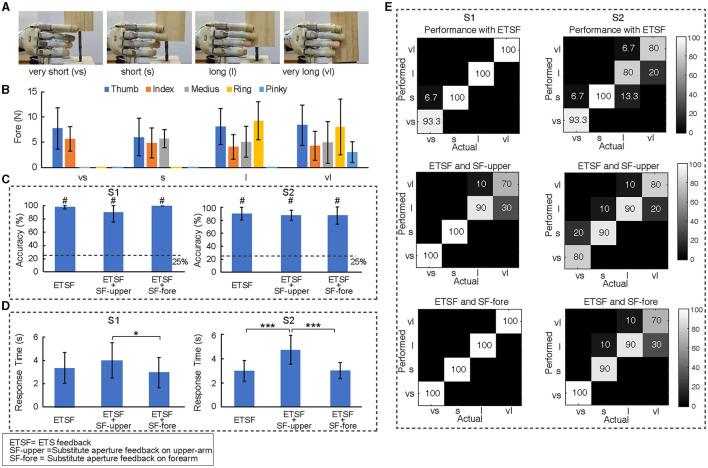

Two left transradial amputees with somatotopic evoked tactile sensation (ETS) of five fingers participated in the study. The tactile information of prosthetic hand was provided to amputees by the ETS feedback elicited on the stump projected finger map. Hand aperture information was conveyed to amputees with substitute electrotactile stimulation on the forearm or upper arm. Two types of sensory feedback were integrated to a commercial prosthetic hand. The efficacy of somatotopic ETS feedback on object length identification task was assessed with or without substitute aperture stimulation. The object size identification task was utilized to assess how ETS stimulation at the stump may affect aperture perception with stimulation on the ipsilateral upper arm or forearm. Finally, the task of identifying combined length and size was conducted to evaluate the ability of amputees to integrate the dual modalities of sensory feedback for perceiving profile features.

RESULTS

The study revealed that amputee subjects can effectively integrate the ETS feedback with electrotactile substitutive feedback for object profile discrimination. Specifically, ETS was robust to provide object length information with electrotactile stimulation at either the forearm or upper arm. However, electrotactile stimulation at the upper arm for aperture perception was less susceptible to the interference of ETS stimulation than at the forearm.

DISCUSSION

Amputee subjects are able to combine somatotopic ETS and aperture feedbacks for identifying multi-dimensional features in object profiling. The two sensory streams of information can be fused effectively without mutual interference for functional discrimination.
