Experimental and numerical evaluation for drum dynamic reliability under extremely complex working conditions.

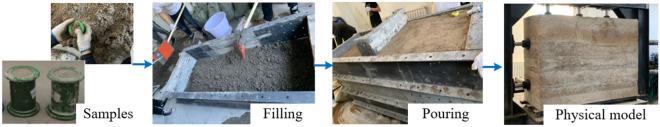

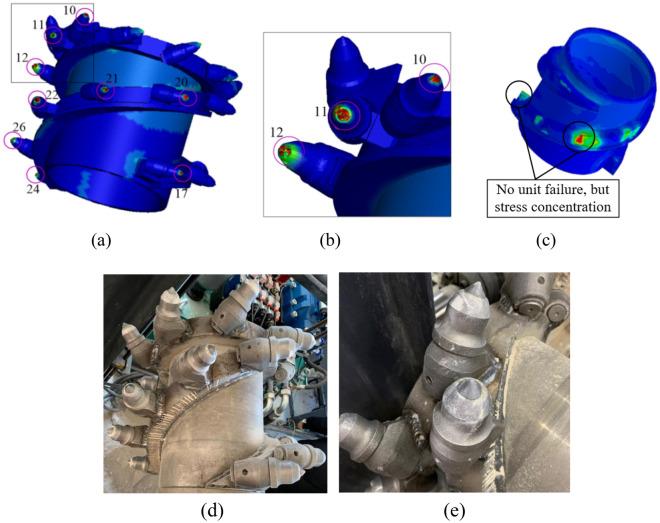

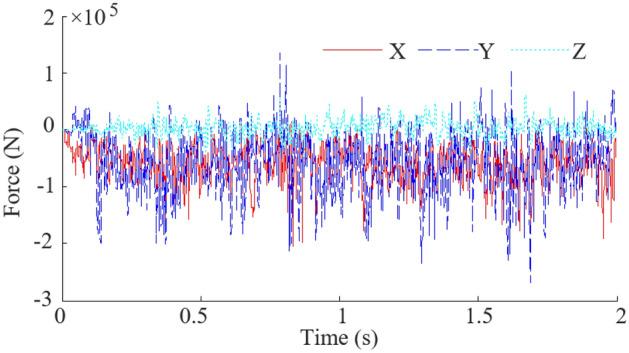

Coal mining machine drums are prone to damage and malfunction under extremely complex working conditions, which seriously affects the efficiency and safety of coal production. In this paper, based on the theory of coal rock cutting and virtual simulation technology, finite element models of drum cutting coal rock were established and then verified by physical experiments. Through simulation analysis, the dynamic reliability of the drum was studied from three aspects: load, stress and wear, and a mathematical model of drum load was established with respect to the traction speed and drum rotation speed; based on the orthogonal test, the optimal working parameters to improve the wear resistance of the drum were derived. The results of the study found that when the traction speed increases, the load on the drum increases, and when the drum rotation speed increases, the load on the drum decreases; when the traction speed is increased from 2 to 6 m/min, the stress on the pick body under different rotation speeds increases to different degrees, with an average increase rate of 27.394%; when the drum rotation speed is 90 r/min, the traction speed is 3 m/min, and the coal loading mode is projectile loading, the wear depth of the picks and spiral blades is relatively small. The research method and results of this paper can provide a reference for the selection of the drum working parameters.
