Three-dimensional spatial analysis of temporomandibular joint in adolescent Class II division 1 malocclusion patients: comparison of Twin-Block and clear functional aligner.

BACKGROUND

Our study aimed to use three-dimensional (3D) spatial morphological measurement methods to compare the influence of Twin-Block and clear functional aligners on the temporomandibular joint (TMJ) of adolescent Class II division 1 malocclusion mandibular retraction patients. We also aimed to explore the similarities and differences in the effects on the TMJ upon using Twin-Block and clear functional aligner.

METHODS

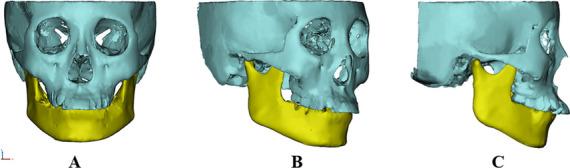

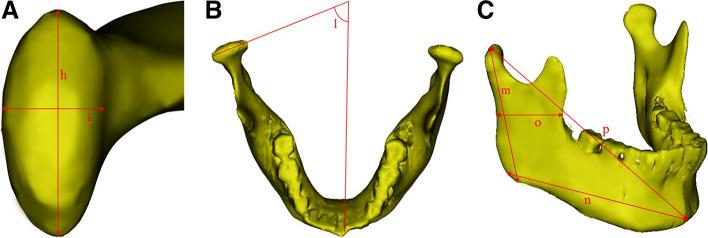

Cone-beam computed tomography (CBCT) data of 49 patients with Class II division 1 malocclusion (Twin-Block group: 24; clear functional aligner group: 25) were collected before and after functional orthodontic treatment, and a 3D model of the TMJ was reconstructed using MIMICS 21.0 software. Eighteen measurement parameters, including the anterior, superior, and posterior joint spaces, were measured and compared using the 3D model.

RESULTS

After the two groups underwent functional appliance treatment, the height, volume, and surface area of the condyle, length of the mandibular ramus and mandibular length increased; The retro-displaced condyle moved to the middle position of the articular fossa, while the rest of the condylar position did not change significantly. Remodeling of the articular fossa after treatment was not evident. The superior joint space of the clear functional aligner group increased, but there was no significant change after Twin-Block appliances treatment.

CONCLUSIONS

Both appliances promote condylar growth and sagittal and vertical development of the mandible in adolescent Class II division 1 malocclusion mandibular retraction patients. The length of the mandibular ramus showed a more significant increase following treatment with the Twin-Block appliances than with clear function aligners.
