Laboratory of Artificial Vision and Thermography/Mechatronics, Faculty of Engineering, Autonomous University of Queretaro, Campus San Juan del Rio, San Juan del Rio 76807, Mexico.
Postgraduate Studies Division, Psychology Faculty, National Autonomous University of Mexico, Mexico City 04510, Mexico.
Sensors (Basel). 2023 Dec 27;24(1):152. doi: 10.3390/s24010152.

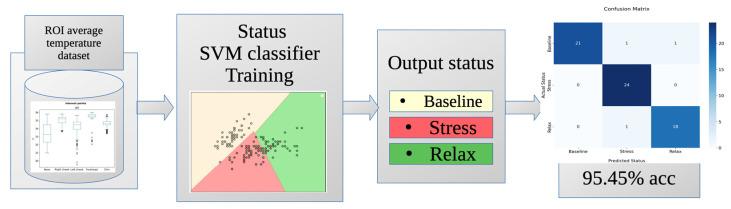

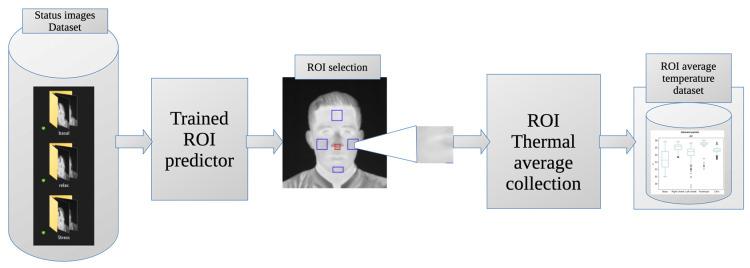

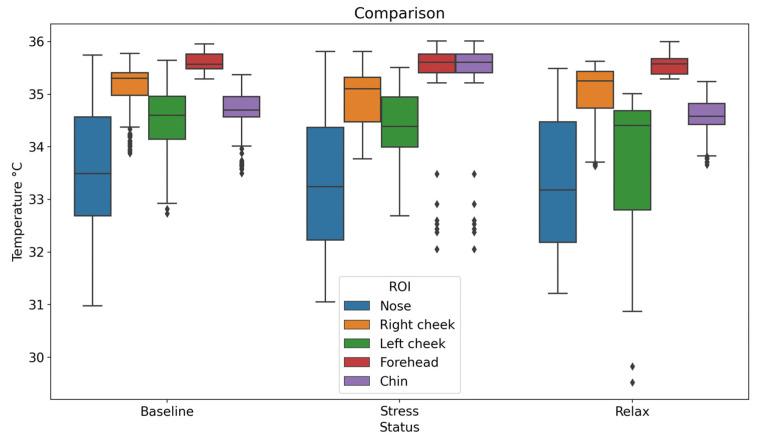

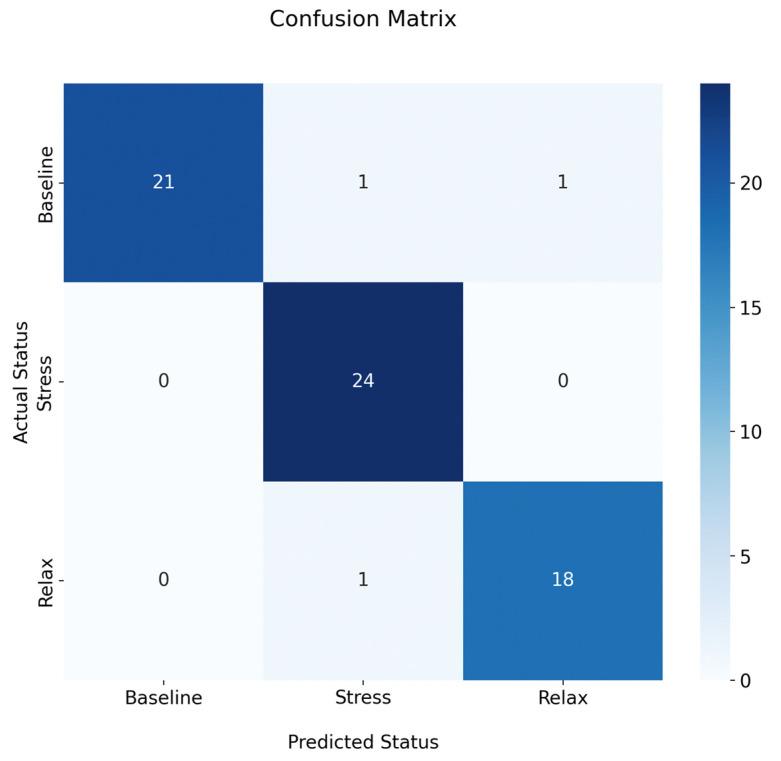

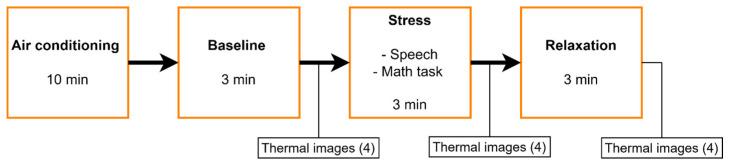

Stress is a factor that affects many people today and is responsible for many of the causes of poor quality of life. For this reason, it is necessary to be able to determine whether a person is stressed or not. Therefore, it is necessary to develop tools that are non-invasive, innocuous, and easy to use. This paper describes a methodology for classifying stress in humans by automatically detecting facial regions of interest in thermal images using machine learning during a short Trier Social Stress Test. Five regions of interest, namely the nose, right cheek, left cheek, forehead, and chin, are automatically detected. The temperature of each of these regions is then extracted and used as input to a classifier, specifically a Support Vector Machine, which outputs three states: baseline, stressed, and relaxed. The proposal was developed and tested on thermal images of 25 participants who were subjected to a stress-inducing protocol followed by relaxation techniques. After testing the developed methodology, an accuracy of 95.4% and an error rate of 4.5% were obtained. The methodology proposed in this study allows the automatic classification of a person's stress state based on a thermal image of the face. This represents an innovative tool applicable to specialists. Furthermore, due to its robustness, it is also suitable for online applications.
压力是当今影响许多人的一个因素,也是导致许多生活质量下降的原因之一。因此,有必要能够确定一个人是否有压力。因此,有必要开发非侵入性、无害且易于使用的工具。本文描述了一种通过在短时间的特里尔社会压力测试中使用机器学习自动检测热图像中的面部感兴趣区域来对人类压力进行分类的方法。自动检测五个感兴趣区域,即鼻子、右脸颊、左脸颊、额头和下巴。然后提取每个区域的温度,并将其用作分类器的输入,特别是支持向量机,该分类器输出三种状态:基线、压力和放松。该提案是在 25 名参与者的热图像上开发和测试的,这些参与者接受了压力诱导协议,然后接受了放松技术。在测试所开发的方法后,获得了 95.4%的准确率和 4.5%的错误率。本研究提出的方法允许根据面部的热图像自动分类一个人的压力状态。这是一种适用于专家的创新工具。此外,由于其稳健性,它也适用于在线应用。
