Construction of a Nomogram-Based Prediction Model for the Risk of Diabetic Kidney Disease in T2DM.

INTRODUCTION

To investigate the predictors of diabetic kidney disease (DKD) in type 2 diabetes mellitus (T2DM) patients and establish a nomogram model for predicting the risk of DKD.

METHODS

The clinical data of T2DM patients, admitted to the Endocrinology Department of Chengde Central Hospital from October 2019 to September 2020 and divided into a case group or a control group based on whether they had DKD, were collected. The predictive factors of DKD were screened by univariate and multivariate analysis, and a nomogram prediction model was constructed for the risk of DKD in T2DM. Bootstrapping was used for model validation, receiver operating characteristic (ROC) curve and GiViTI calibration curve were used for evaluating the discrimination and calibration of prediction model, and decision analysis curve (DCA) was used for evaluating the practicality of model.

RESULTS

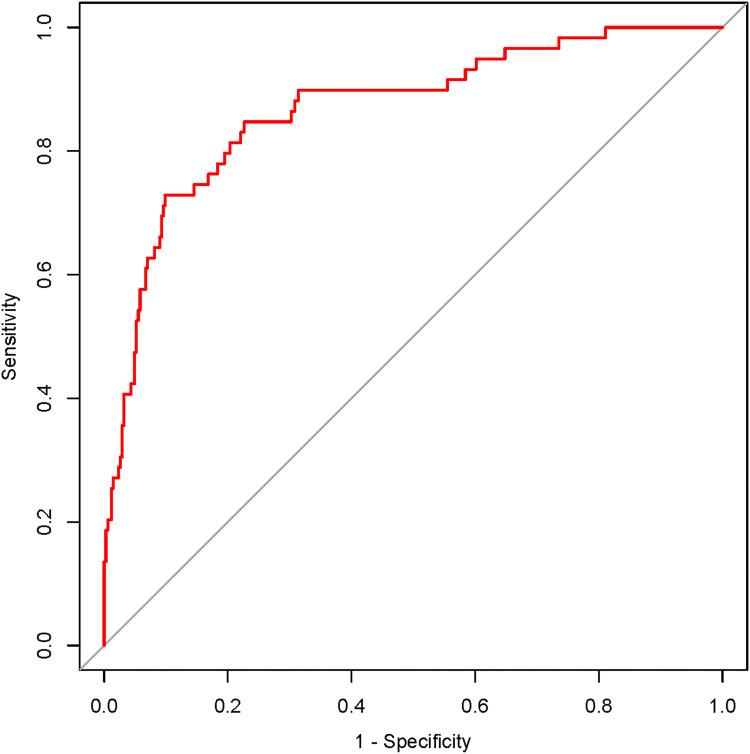

Predictors for DKD are diabetic retinopathy (DR), hypertension, history of gout, smoking history, using insulin, elevation of body mass index (BMI), triglyceride (TG), cystatin C (Cys-C), and reduction of 25 (OH) D. The nomogram prediction model based on the above nine predictors had good representativeness (Bootstrap method: precision: 0.866, Kappa: 0.334), differentiation [the area under curve (AUC) value: 0.868], and accuracy (GiViTI-corrected curved bands, P = 0.836); the DAC curve analysis showed that the prediction model, whose threshold probability was in the range of 0.10 to 0.70, had clinical practical value.

CONCLUSION

The risk of DKD in T2DM could be predicted accurately by DR, hypertension, history of gout, smoking history, using insulin, elevation of BMI, TG, Cys-C, and reduction of 25 (OH) D.
