Comprehensive advancement in endoscopy: optical design, algorithm enhancement, and clinical validation for merged WLI and CBI imaging.

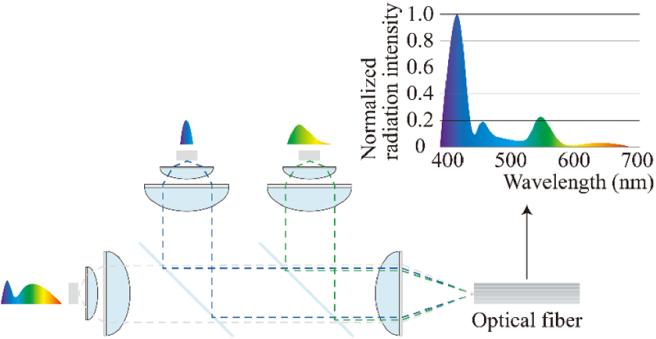

As endoscopic imaging technology advances, there is a growing clinical demand for enhanced imaging capabilities. Although conventional white light imaging (WLI) endoscopy offers realistic images, it often cannot reveal detailed characteristics of the mucosa. On the other hand, optical staining endoscopy, such as Compound Band Imaging (CBI), can discern subtle structures, serving to some extent as an optical biopsy. However, its image brightness is low, and the colors can be abrupt. These two techniques, commonly used in clinical settings, have complementary advantages. Nonetheless, they require different lighting conditions, which makes it challenging to combine their imaging strengths on living tissues. In this study, we introduce a novel endoscopic imaging technique that effectively combines the advantages of both WLI and CBI. Doctors don't need to manually switch between these two observation modes, as they can obtain the image information of both modes in one image. We calibrated an appropriate proportion for simultaneous illumination with the light required for WLI and CBI. We designed a new illumination spectrum tailored for gastrointestinal examination, achieving their fusion at the optical level. Using a new algorithm that focuses on enhancing specific hemoglobin tissue features, we restored narrow-band image characteristics lost due to the introduction of white light. Our hardware and software innovations not only boost the illumination brightness of the endoscope but also ensure the narrow-band feature details of the image. To evaluate the reliability and safety of the new endoscopic system, we conducted a series of tests in line with relevant international standards and validated the design parameters. For clinical trials, we collected a total of 256 sets of images, each set comprising images of the same lesion location captured using WLI, CBI, and our proposed method. We recruited four experienced clinicians to conduct subjective evaluations of the collected images. The results affirmed the significant advantages of our method. We believe that the novel endoscopic system we introduced has vast potential for clinical application in the future.
