Punde Prashant A
Department of Oral and Maxillofacial Surgery, School of Dental Sciences and Hospital, Krishna Vishwa Vidyapeeth Deemed to be University, Satara, Maharashtra, India.
Ann Maxillofac Surg. 2023 Jul-Dec;13(2):154-157. doi: 10.4103/ams.ams_104_23. Epub 2023 Dec 19.

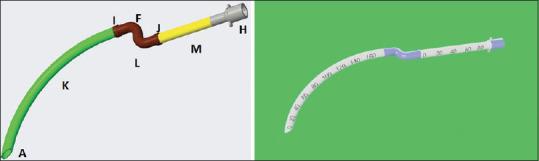

In conventional practice for retromolar intubation, endotracheal tube (ET) is bent. This leads to compression of the inner diameter of the tube which in turn reduces airflow. Furthermore, conventionally ETs are stabilised in position using inflated tracheal cuff. Elastic sticky tapes around the exit pose hindrance for surgical procedures on the face. Surgical manipulation and maxillomandibular fixation may lead to compression, damage or accidental extubation of ET. We have developed a modified ET dedicated to retromolar intubation with innovative means for tube stabilisation to solve these problems.

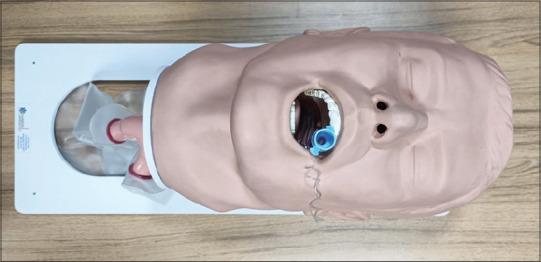

To study the efficacy of the tube, a comparative study was done on mannequins. Null hypothesis of no change in air pressure and oxygen concentration in bent conventional ET versus modified ET was formulated. Comparison was done on the basis of the peak air pressure (PEP) and oxygen concentration, which was checked using air-gas monitor.
The mean PEP was found to be 24.29 psi with standard deviation (SD) of 9.54 in sequentially bent conventional tube. This was found to be only 10.35 psi with SD of 3.22 in modified ET. Oxygen delivery was found to be 3.96 L/min in bent conventional tube, which was 5.22 L/min in modified tube. Both the findings were statistically significant.

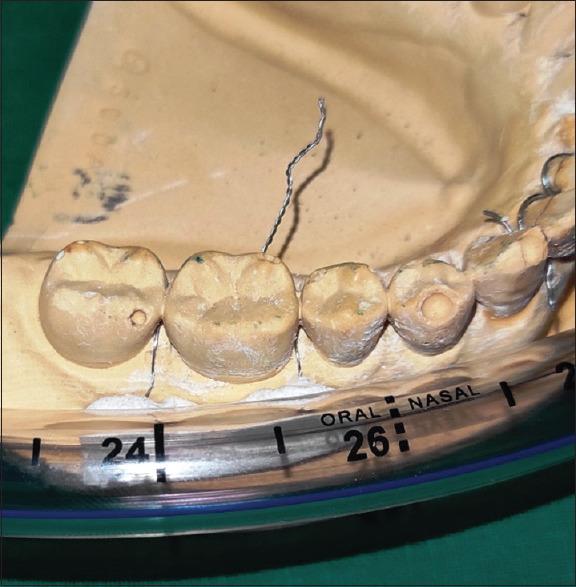

Modified retromolar tube (PUNTUBE) has been found to be efficient in maintaining low PEP while delivering more oxygen as compared to bent conventional tube. Novel mode of tube stabilisation in the form of PUNSTAB is an easy and effective way of tube stabilisation.
在常规的磨牙后插管操作中,气管内导管(ET)是弯曲的。这会导致导管内径受压,进而减少气流。此外,传统上通过充气的气管套囊来固定ET的位置。出口周围的弹性胶带会妨碍面部手术操作。手术操作和颌间固定可能会导致ET受压、损坏或意外拔管。我们开发了一种专门用于磨牙后插管的改良ET,采用创新的导管固定方法来解决这些问题。
为了研究该导管的效果,在人体模型上进行了一项对比研究。提出了弯曲的传统ET与改良ET相比气压和氧气浓度无变化的零假设。根据峰值气压(PEP)和氧气浓度进行比较,使用气-气监测仪进行检查。
在依次弯曲的传统导管中,平均PEP为24.29磅力/平方英寸,标准差(SD)为9.54。在改良ET中,平均PEP仅为10.35磅力/平方英寸,SD为3.22。在弯曲的传统导管中氧气输送量为3.96升/分钟,在改良导管中为5.22升/分钟。这两个结果均具有统计学意义。
与弯曲的传统导管相比,改良的磨牙后导管(PUNTUBE)在保持低PEP的同时能够输送更多氧气,已被证明是有效的。以PUNSTAB形式的新型导管固定方式是一种简便有效的导管固定方法。
