Claucherty Ethan, Cummins Danielle, Rossi Angelica, Aliakbarian Bahar
The Axia Institute, Michigan State University, 1910 W. St. Andrews Rd., Midland, MI 48640, USA.
Department of Civil, Chemical, and Environmental Engineering, University of Genoa, 16145 Genoa, Italy.
Foods. 2024 Feb 20;13(5):643. doi: 10.3390/foods13050643.

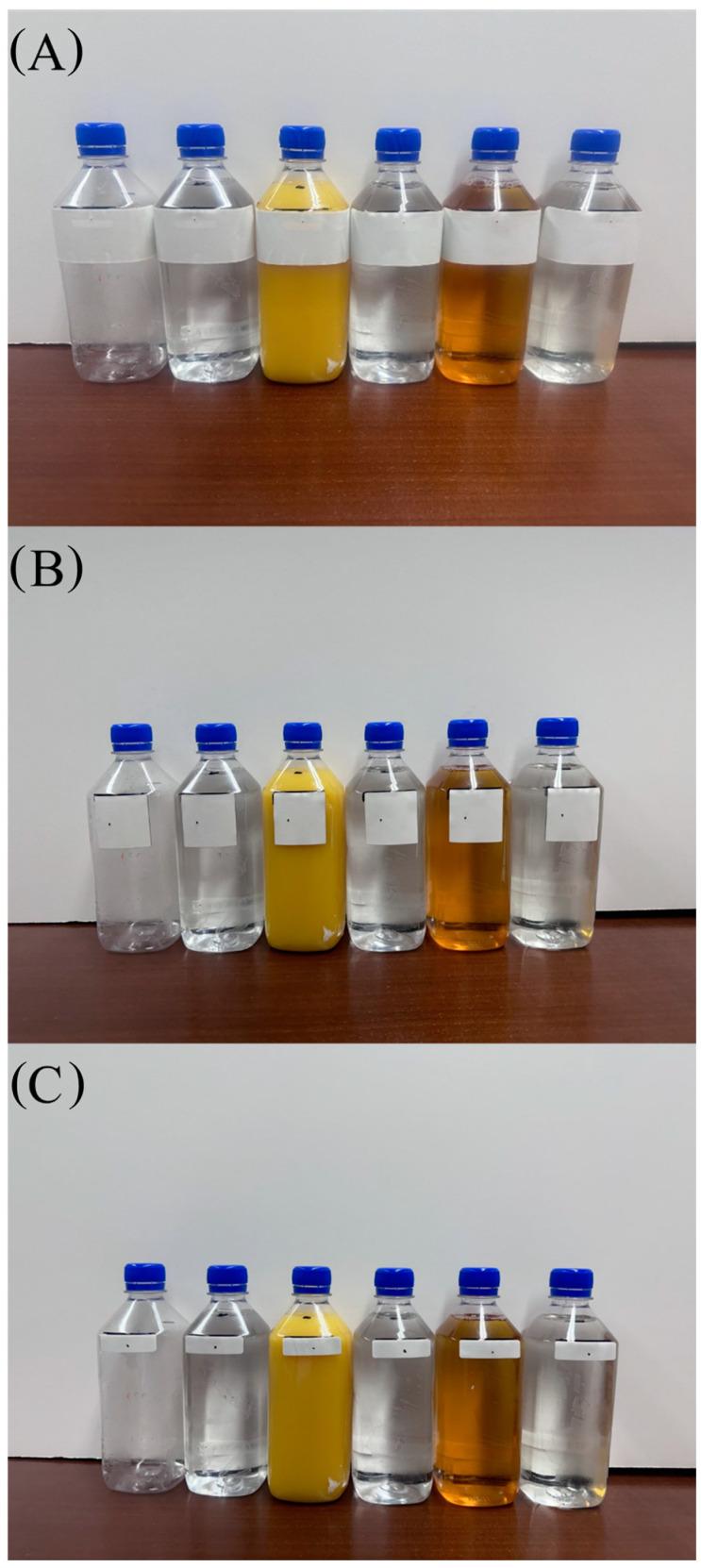

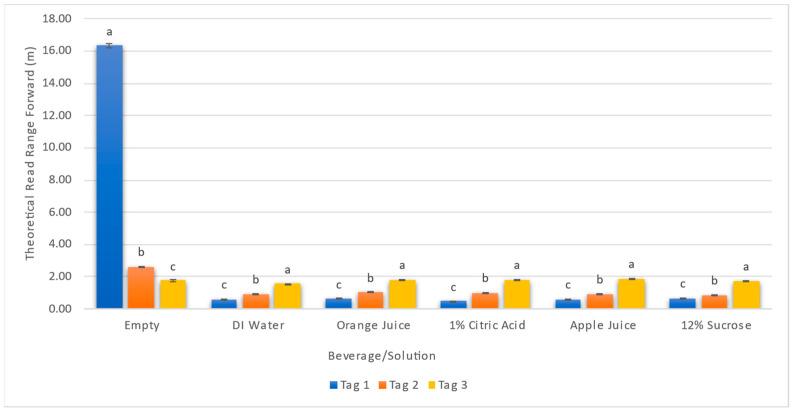

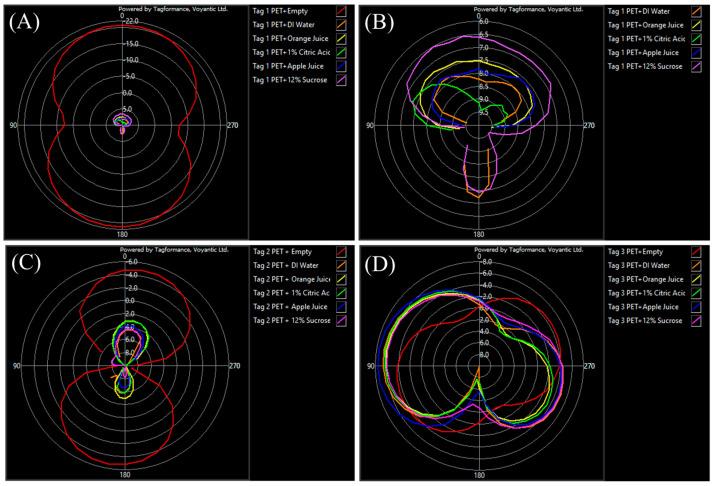

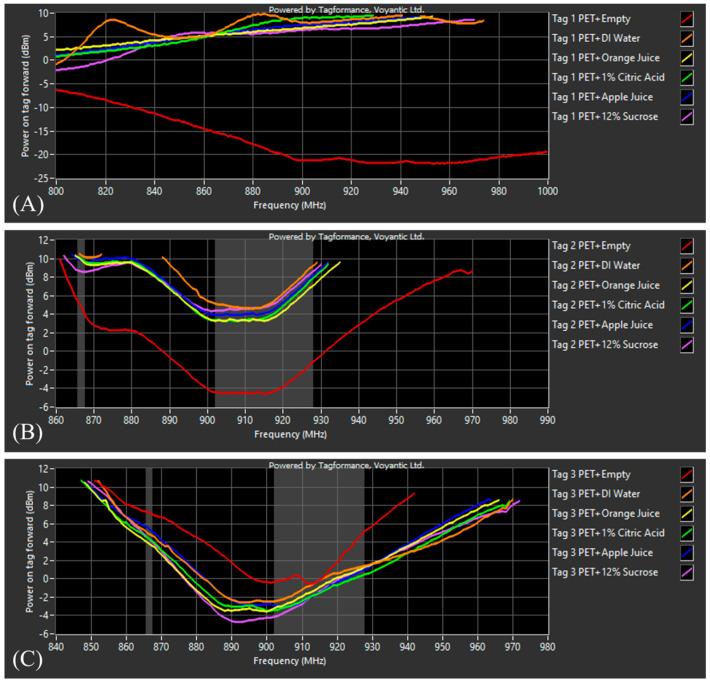

Radio frequency identification (RFID) technology is crucial in revolutionizing the food supply chain and combating global food waste. However, this technology faces challenges in full integration due to disruptive effects on tags caused by the dielectric properties of food and beverage ingredients, chemical constituents, and their packaging. This paper aims to demonstrate the effect of packaging and beverage contents on RFID tag performance. Three commercially available ultra-high frequency (UHF) RFID tags with different designs were tested on polyethylene terephthalate (PET) bottles, measuring tag performance through sensitivity, backscatter, and read range in the presence of various water-based solutions and commercially available beverages. The results highlight the substantial impact of the beverage type and tag design on RFID performance. The results of this study showed that tag 3 was the most consistent and readable tag amongst those tested in the presence of different beverage contents. Tag 3 resulted in a sensitivity ranging from -0.49 to -2.01 dBm, backscatter from -38.16 to 43.59 dBm, and read range from 1.58 to 1.88 m, while tag 1 performed the best in the presence of an empty PET bottle resulting in a sensitivity of -20.78 dBm, backscatter of -23.65 dBm, and read range of 16.34 m. The results of this study can be used for further investigations to develop a mathematical model that predicts the RFID tag performance based on the food composition. This model will be helpful for the design of the tags while facilitating the adoption of smart packaging for food traceability.
射频识别(RFID)技术在革新食品供应链和应对全球食品浪费方面至关重要。然而,由于食品和饮料成分的介电特性、化学成分及其包装对标签产生的破坏作用,这项技术在全面整合方面面临挑战。本文旨在证明包装和饮料内容物对RFID标签性能的影响。在聚对苯二甲酸乙二酯(PET)瓶上测试了三种具有不同设计的市售超高频(UHF)RFID标签,通过在各种水性溶液和市售饮料存在的情况下的灵敏度、反向散射和读取范围来测量标签性能。结果突出了饮料类型和标签设计对RFID性能的重大影响。这项研究的结果表明,在不同饮料内容物存在的情况下进行测试时,标签3是最稳定且可读的标签。标签3的灵敏度范围为-0.49至-2.01 dBm,反向散射范围为-38.16至43.59 dBm,读取范围为1.58至1.88米,而标签1在空PET瓶存在的情况下表现最佳,灵敏度为-20.78 dBm,反向散射为-23.65 dBm,读取范围为16.34米。这项研究的结果可用于进一步研究,以开发一个基于食品成分预测RFID标签性能的数学模型。该模型将有助于标签设计,同时促进采用智能包装进行食品可追溯性管理。
