Prediction of Thermo-Mechanical Properties of 8-Harness Satin-Woven C/C Composites by Asymptotic Homogenization.

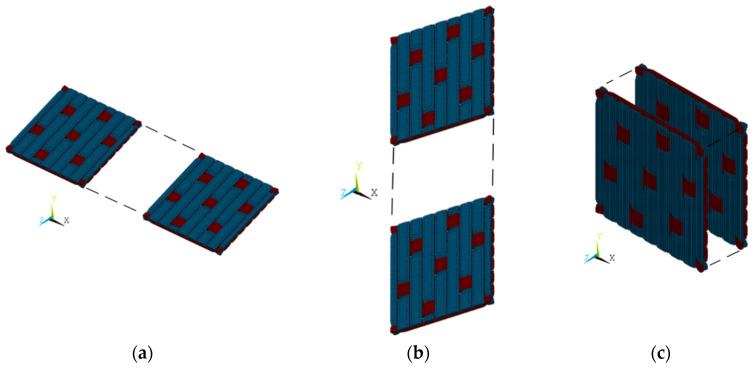

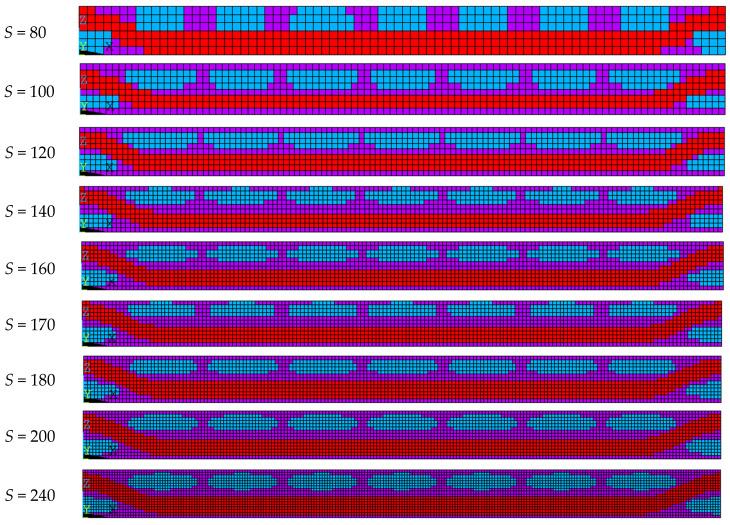

The elasticity matrix and the coefficients of thermal expansion (CTEs) of 8-harness satin-woven (8HS) carbon-fiber-reinforced carbon matrix (C/C) composites at high temperatures were obtained by the asymptotic homogenization method (AHM) and finite element method (FEM). By analyzing the microstructure of the 8HS C/C composites, a representative volume element (RVE) model considering a braided structure was established. The effects of the temperature and component volume fraction on the elasticity matrix and CTEs of the composites were investigated. The sensitivity of model parameters, including the size of RVE model and mesh sensitivity, were studied. The optimal calculation model was employed. In addition, the effects of the 4HS methods and 8HS methods on the elastic constants of the composites were compared. The temperature and variation in the carbon fiber volume fraction were found to have a significant impact on the elasticity matrix and CTEs of composite materials. At the same volume fraction of carbon fibers, some elastic coefficients of the 4HS composite material were slightly lower than those of 8HS composite material. This research affords a computational strategy for the accurate prediction of the themo-mechanical properties of satin-woven C/C composites.
