Lapiro Igor, Eid Rami, Kovler Konstantin
National Building Research Institute, Faculty of Civil and Environmental Engineering, Technion-Israel Institute of Technology, Haifa 3200003, Israel.
Department of Civil Engineering, Braude College of Engineering, Karmiel 2161002, Israel.
Materials (Basel). 2024 Mar 11;17(6):1295. doi: 10.3390/ma17061295.
Coastal regions, home to a significant portion of the world's population, confront a formidable challenge: the corrosive impact of chloride-rich environments on vital infrastructure. These areas often host essential transportation systems, such as trains and metros, reliant on pre-existing electrical infrastructure. Unfortunately, complete isolation of this infrastructure is rarely feasible, resulting in the emergence of stray currents and electrical potentials that expedite corrosion processes. When coupled with conducive mediums facilitating chemical electrocell formation, the corrosion of reinforced concrete elements accelerates significantly. To combat this issue, international standards have been established, primarily focusing on augmenting the thickness of reinforcement bar covers and restricting stray voltage between rails and the ground. Nevertheless, these measures only provide partial solutions. When subjected to service loads, these elements develop cracks, especially when exposed to stray currents and chlorides, dramatically increasing corrosion rates. Corrosion products, which expand in volume compared to steel, exert internal forces that widen cracks, hastening the deterioration of structural elements. The study deals with the degradation of reinforced concrete columns under the combined action of loads, chloride-rich environments, and electrical voltage-simulating stray currents. In these conditions, degradation and reduction of load-bearing capacity accelerate compared to unloaded conditions, significantly amplifying the corrosion rate. Astonishingly, even in the absence of mechanical loads, stray currents alone induce tensile stresses in elements due to corrosion product formation, leading to longitudinal cracks parallel to the reinforcement bars.

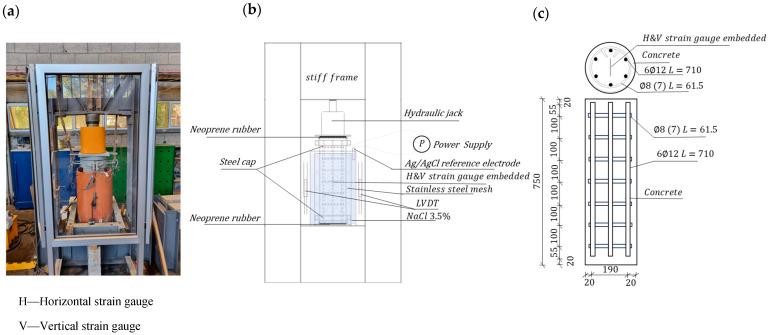

沿海地区居住着世界上很大一部分人口,面临着一项严峻挑战:富含氯化物的环境对重要基础设施产生的腐蚀性影响。这些地区通常有诸如火车和地铁等重要交通系统,依赖于既有的电力基础设施。不幸的是,完全隔离这种基础设施很少可行,这导致杂散电流和电位的出现,加速了腐蚀过程。当与促进化学电池形成的有利介质相结合时,钢筋混凝土构件的腐蚀会显著加速。为应对这一问题,已经制定了国际标准,主要侧重于增加钢筋保护层的厚度以及限制轨道与地面之间的杂散电压。然而,这些措施只是提供了部分解决方案。当承受使用荷载时,这些构件会出现裂缝,尤其是在暴露于杂散电流和氯化物时,腐蚀速率会急剧增加。与钢材相比体积会膨胀的腐蚀产物会施加内力使裂缝变宽,加速结构构件的劣化。该研究探讨了在荷载、富含氯化物的环境以及模拟杂散电流的电压共同作用下钢筋混凝土柱的劣化情况。在这些条件下,与无荷载情况相比,劣化和承载能力的降低会加速,显著放大腐蚀速率。令人惊讶的是,即使在没有机械荷载的情况下,仅杂散电流就会由于腐蚀产物的形成在构件中产生拉应力,导致与钢筋平行的纵向裂缝。
