Zheng Chen, Han Xu, Sun Fangfang, Zhang Yue, Huang Zihang, Ma Tianyi
Institute of Clean Energy Chemistry, Key Laboratory for Green Synthesis and Preparative Chemistry of Advanced Materials of Liaoning Province, College of Chemistry, Liaoning University, Shenyang 110036, China.
Engineering Laboratory of Advanced Energy Materials, Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China.
Materials (Basel). 2024 Mar 20;17(6):1417. doi: 10.3390/ma17061417.

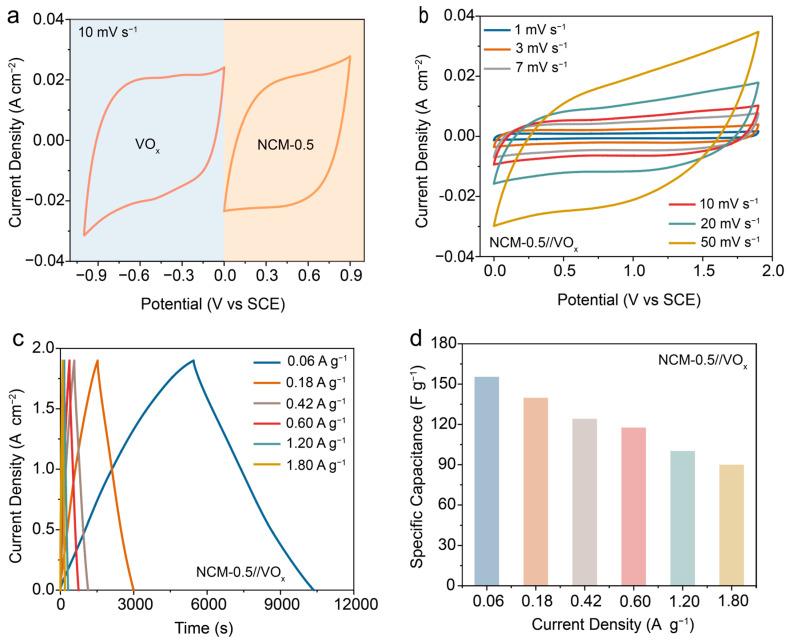

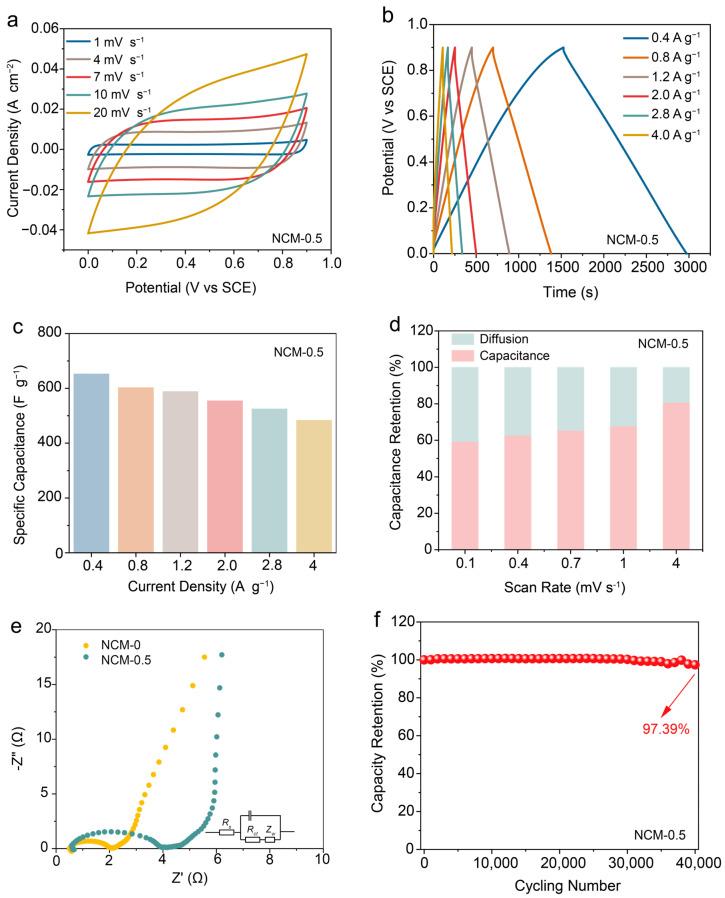

Aqueous supercapacitors have occupied a significant position among various types of stationary energy storage equipment, while their widespread application is hindered by the relatively low energy density. Herein, N/F co-doped carbon materials activated by manganese clusters (NCM) are constructed by the straightforward experimental routine. Benefiting from the elevated conductivity structure at the microscopic level, the optimized NCM-0.5 electrodes exhibited a remarkable specific capacitance of 653 F g at 0.4 A g and exceptional cycling stability (97.39% capacity retention even after 40,000 cycles at the scanning rate of 100 mV s) in a neutral 5 M LiCl electrolyte. Moreover, we assembled an asymmetric device pairing with a VO anode (NCM-0.5//VO), which delivered a durable life span of 95% capacity retention over 30,000 cycles and an impressive energy density of 77.9 Wh kg. This study provides inspiration for transition metal element doping engineering in high-energy storage equipment.
水系超级电容器在各类固定式储能设备中占据着重要地位,但其广泛应用却受到相对较低的能量密度的阻碍。在此,通过简单的实验流程构建了由锰簇激活的氮/氟共掺杂碳材料(NCM)。得益于微观层面电导率结构的提升,优化后的NCM-0.5电极在中性5 M LiCl电解液中,在0.4 A g时表现出653 F g的显著比电容以及出色的循环稳定性(即使在100 mV s的扫描速率下经过40,000次循环后容量保持率仍为97.39%)。此外,我们组装了与VO阳极配对的不对称器件(NCM-0.5//VO),其在30,000次循环中实现了95%的容量保持率的耐用寿命以及77.9 Wh kg的可观能量密度。该研究为高能储能设备中的过渡金属元素掺杂工程提供了启示。
