Zirconium-Modified Medium-Entropy Alloy (TiVNb)Cr for Hydrogen Storage.

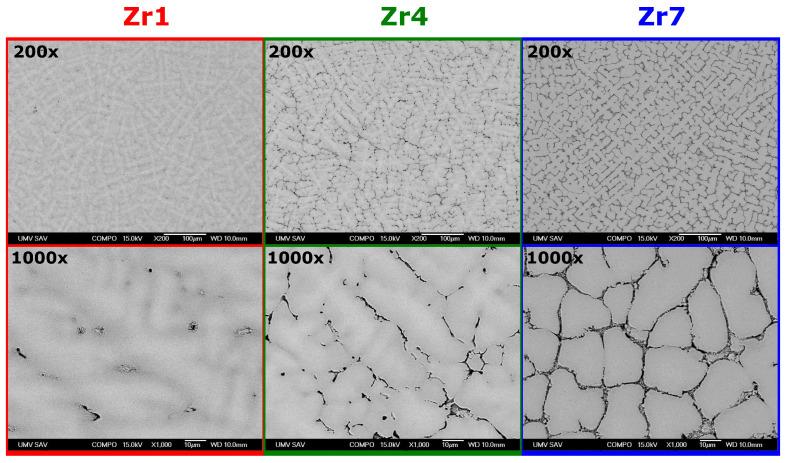

In this study, we investigate the effect of small amounts of zirconium alloying the medium-entropy alloy (TiVNb)Cr, a promising material for hydrogen storage. Alloys with 1, 4, and 7 at.% of Zr were prepared by arc melting and found to be multiphase, comprising at least three phases, indicating that Zr addition does not stabilize a single-phase solid solution. The dominant BCC phase () is the primary hydrogen absorber, while the minor phases and play a crucial role in hydrogen absorption/desorption. Among the studied alloys, (TiVNb)CrZr shows the highest hydrogen storage capacity, ease of activation, and reversibly retrievable hydrogen. This alloy can absorb hydrogen at room temperature without additional processing, with a reversible capacity of up to 0.74 wt.%, corresponding to hydrogen-to-metal ratio H/M = 0.46. The study emphasizes the significant role of minor elemental additions in alloy properties, stressing the importance of tailored compositions for hydrogen storage applications. It suggests a direction for further research in metal hydride alloys for effective and safe hydrogen storage.
