Golubović Zorana, Bojović Božica, Kirin Snežana, Milovanović Aleksa, Petrov Ljubiša, Anđelković Boban, Sofrenić Ivana
Faculty of Mechanical Engineering, University of Belgrade, 11120 Belgrade, Serbia.
Innovation Center of Faculty of Mechanical Engineering, 11120 Belgrade, Serbia.
Polymers (Basel). 2024 Apr 10;16(8):1035. doi: 10.3390/polym16081035.

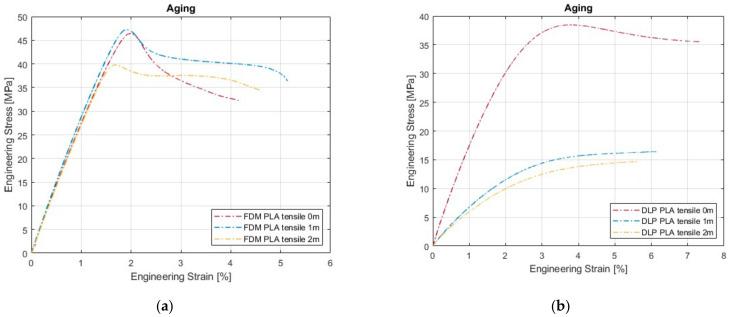

Additive manufacturing, with its fast development and application of polymeric materials, led to the wide utilization of polylactic acid (PLA) materials. As a biodegradable and biocompatible aliphatic polyester, produced from renewable sources, PLA is widely used in different sectors, from industry to medicine and science. The aim of this research is to determine the differences between two forms of the PLA material, i.e., fused deposition modeling (FDM) printed filament and digital light processing (DLP) printed resin, followed by aging due to environmental and hygiene maintenance conditions for a period of two months. Specimens underwent 3D scanning, tensile testing, and Fourier transform infrared (FTIR) spectrometry to obtain insights into the material changes that occurred. Two-way Analysis of Variance (ANOVA) statistical analysis was subsequently carried out to determine the statistical significance of the determined changes. Significant impairment can be observed in the dimensional accuracies between both materials, whether they are non-aged or aged. The mechanical properties fluctuated for aged FDM specimens: 15% for ultimate tensile stress, 15% for elongation at yield, and 12% for elastic modulus. Regarding the DLP aged specimens, the UTS decreased by 61%, elongation at yield by around 61%, and elastic modulus by 62%. According to the FTIR spectral analysis, the PLA materials degraded, especially in the case of resin specimens. Aging also showed a significant influence on the elastic modulus, ultimate tensile stress, elongation at yield, elongation at break, and toughness of both materials, which was statistically shown by means of a two-way ANOVA test. The data collected in this research give a better understanding of the underlying aging mechanism of PLA materials.
随着聚合物材料的快速发展和应用,增材制造使得聚乳酸(PLA)材料得到了广泛应用。作为一种由可再生资源生产的可生物降解且生物相容的脂肪族聚酯,PLA在从工业到医学和科学的不同领域都有广泛应用。本研究的目的是确定PLA材料的两种形式之间的差异,即熔融沉积成型(FDM)打印长丝和数字光处理(DLP)打印树脂,然后在环境和卫生维护条件下老化两个月。对试样进行了三维扫描、拉伸测试和傅里叶变换红外(FTIR)光谱分析,以深入了解所发生的材料变化。随后进行了双向方差分析(ANOVA)统计分析,以确定所确定变化的统计显著性。无论是未老化还是老化的两种材料,在尺寸精度方面都可观察到显著损伤。老化的FDM试样的力学性能波动:极限拉伸应力为15%,屈服伸长率为15%,弹性模量为12%。对于DLP老化试样,极限拉伸强度下降了61%,屈服伸长率下降了约61%,弹性模量下降了62%。根据FTIR光谱分析,PLA材料发生了降解,尤其是树脂试样的情况。老化对两种材料的弹性模量、极限拉伸应力、屈服伸长率、断裂伸长率和韧性也有显著影响,这通过双向ANOVA测试在统计上得到了证明。本研究收集的数据有助于更好地理解PLA材料潜在的老化机制。
