Takahara Masatoshi
Center for Hand, Elbow, and Sports Medicine, Izumi Orthopaedic Hospital, Sendai, Japan.
JSES Int. 2023 Oct 31;8(3):588-601. doi: 10.1016/j.jseint.2023.09.010. eCollection 2024 May.
The etiology and pathogenesis of osteochondritis dissecans (OCDs) lesions remain controversial.
This review presents the recent evolution about the healing, imaging, pathogenesis, and how to treat OCD of the capitellum in overhead athletes.

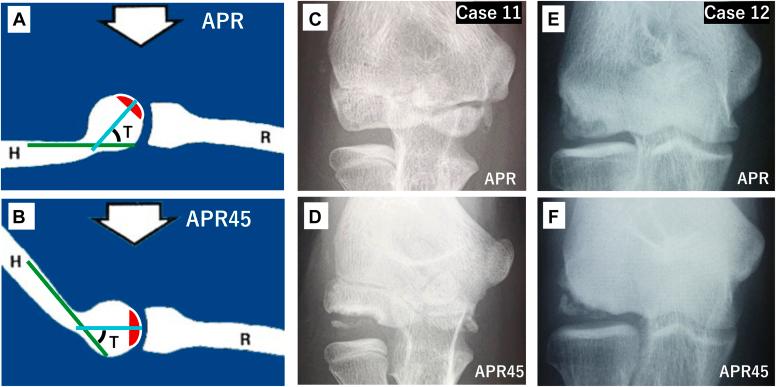

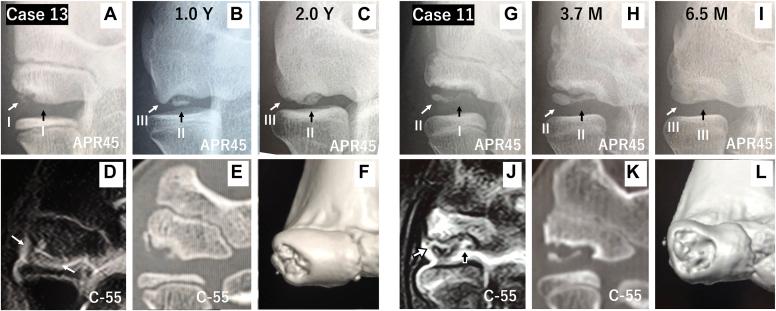

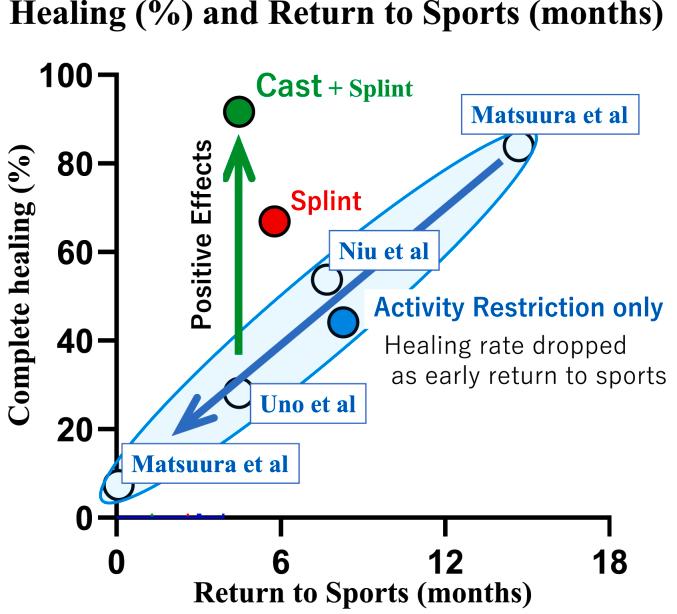

Compressive and shear forces to the growing capitellum can cause subchondral separation, leading to OCD, composed of 3 layers: articular fragment, gap, and underlying bone. Subchondral separation can cause ossification arrest (stage IA), followed by cartilage degeneration (stage IB) or delayed ossification (stage IIA), occasionally leading to osteonecrosis (stage IIB) in the articular fragment. Articular cartilage fracture and gap reseparation make the articular fragment unstable. The mean tilting angle of capitellar OCD is 57.6 degrees in throwers. Anteroposterior radiography of the elbow at 45 degrees of flexion (APR45) can increase the diagnostic reliability, showing OCD healing stages, as follows: I) radiolucency, II) delayed ossification, and III) union. Coronal computed tomography and magnetic resonance imaging with an appropriate tilting angle can also increase the reliability. MRI is most useful to show the instability, although it occasionally underestimates. Sonography contributes to detection of early OCD in adolescent throwers on the field. OCD lesions in the central aspect of the capitellum can be more unstable and may not heal. Cast immobilization has a positive effect on healing for stable lesions. Arthroscopic removal provides early return to sports, although a large osteochondral defect is associated with a poor prognosis. Fragment fixation, osteochondral autograft transplantation, and their hybrid technique have provided better results.
Further studies are needed to prevent problematic complications of capitellar OCD, such as osteoarthritis and chondrolysis.
剥脱性骨软骨炎(OCDs)病变的病因和发病机制仍存在争议。
本综述介绍了关于 overhead 运动员肱骨小头 OCD 的愈合、影像学、发病机制以及治疗方法的最新进展。
生长中的肱骨小头受到的压缩力和剪切力可导致软骨下分离,进而引发 OCD,其由三层组成:关节碎片、间隙和下方骨质。软骨下分离可导致骨化停滞(IA 期),随后出现软骨退变(IB 期)或延迟骨化(IIA 期),偶尔会导致关节碎片发生骨坏死(IIB 期)。关节软骨骨折和间隙重新分离会使关节碎片不稳定。投掷运动员肱骨小头 OCD 的平均倾斜角度为 57.6 度。45 度屈曲位肘关节前后位 X 线片(APR45)可提高诊断可靠性,显示 OCD 的愈合阶段,如下:I)透亮区,II)延迟骨化,III)愈合。具有合适倾斜角度的冠状位计算机断层扫描和磁共振成像也可提高可靠性。MRI 对显示不稳定性最有用,尽管偶尔会低估。超声有助于在现场检测青少年投掷运动员的早期 OCD。肱骨小头中央部位的 OCD 病变可能更不稳定且可能无法愈合。石膏固定对稳定病变的愈合有积极作用。关节镜下切除可使运动员早期重返运动,尽管大的骨软骨缺损预后较差。碎片固定、骨软骨自体移植及其联合技术已取得更好的效果。
需要进一步研究以预防肱骨小头 OCD 的问题性并发症,如骨关节炎和软骨溶解。
