使用局部亚甲蓝对核形态计量进行成像,使用低成本扫描暗场显微镜。

Use of topical methylene blue to image nuclear morphometry with a low-cost scanning darkfield microendoscope.

机构信息

Rice University, Department of Bioengineering, Houston, Texas, United States.

The University of Texas M.D. Anderson Cancer Center, Department of Head and Neck Surgery, Houston, Texas, United States.

出版信息

J Biomed Opt. 2024 May;29(5):050501. doi: 10.1117/1.JBO.29.5.050501. Epub 2024 May 21.


DOI:10.1117/1.JBO.29.5.050501
PMID:38774711
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11107336/
Abstract

SIGNIFICANCE: Fiber-optic microendoscopy is a promising approach to noninvasively visualize epithelial nuclear morphometry for early cancer and precancer detection. However, the broader clinical application of this approach is limited by a lack of topical contrast agents available for use. AIM: The aim of this study was to evaluate the ability to image nuclear morphometry with a novel fiber-optic microendoscope used together with topical application of methylene blue (MB), a dye with FDA approval for use in chromoendoscopy in the gastrointestinal tract. APPROACH: The low-cost, high-resolution microendoscope implements scanning darkfield imaging without complex optomechanical components by leveraging programmable illumination and the rolling shutter of the image sensor. We validate the integration of our system and MB staining for visualizing epithelial cell nuclei by performing imaging on fresh animal specimens and imaging on healthy volunteers. RESULTS: The results indicate that scanning darkfield imaging significantly reduces specular reflection and resolves epithelial nuclei with enhanced image contrast and spatial resolution compared to non-scanning widefield imaging. The image quality of darkfield images with MB staining is comparable to that of fluorescence images with proflavine staining. CONCLUSIONS: Our approach enables real-time microscopic evaluation of nuclear patterns and has the potential to be a powerful noninvasive tool for early cancer detection.

摘要

意义:光纤微内窥镜是一种有前途的方法,可以非侵入性地可视化上皮细胞核形态计量学,用于早期癌症和癌前病变的检测。然而,由于缺乏可用于使用的局部对比剂,这种方法的更广泛的临床应用受到限制。

目的:本研究的目的是评估使用新型光纤微内窥镜结合亚甲蓝(MB)局部应用进行核形态计量成像的能力,MB 是一种已获得美国食品和药物管理局批准用于胃肠道染色内镜的染料。

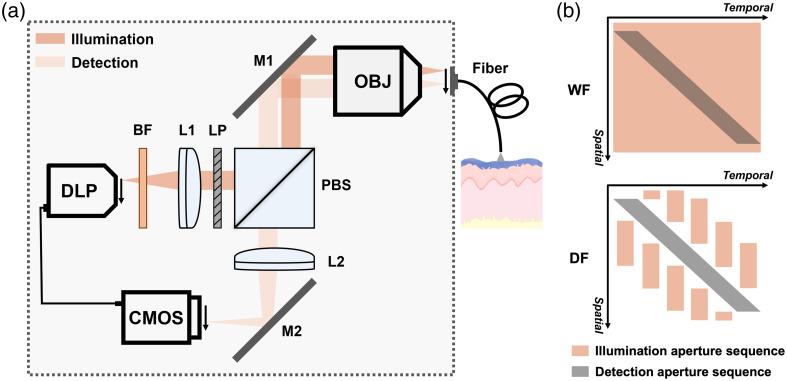

方法:低成本、高分辨率的微内窥镜通过利用可编程照明和图像传感器的卷帘快门,实现了无需复杂的光电机械组件的扫描暗场成像。我们通过对新鲜动物标本进行成像以及对健康志愿者进行成像,验证了我们的系统与 MB 染色的集成,以用于可视化上皮细胞细胞核。

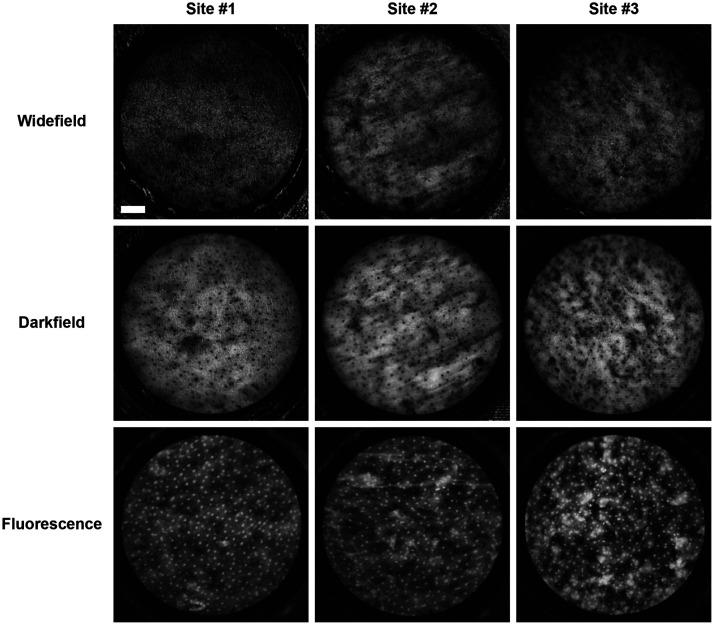

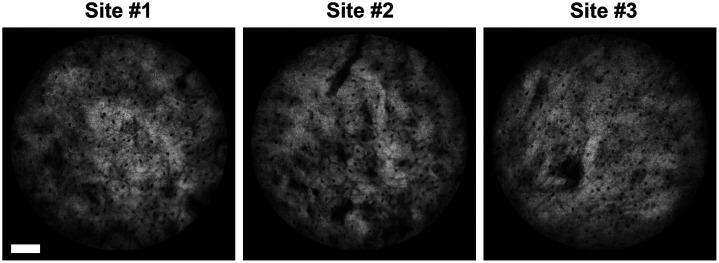

结果:结果表明,与非扫描宽场成像相比,扫描暗场成像显著减少镜面反射,并通过增强的图像对比度和空间分辨率解析上皮细胞核。与吖啶橙荧光染色的荧光图像相比,MB 染色的暗场图像的图像质量相当。

结论:我们的方法能够实时微观评估核模式,并有潜力成为早期癌症检测的强大非侵入性工具。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/aa254ad1d845/JBO-029-050501-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/ff5e5d3f2db2/JBO-029-050501-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/b201775b0ead/JBO-029-050501-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/aa254ad1d845/JBO-029-050501-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/ff5e5d3f2db2/JBO-029-050501-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/b201775b0ead/JBO-029-050501-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5206/11107336/aa254ad1d845/JBO-029-050501-g003.jpg
