Alrowaili Z A, El-Tantawy Asmaa I, Saad S A, Mahmoud M H, El-Nasser Karam S, Mohaymen Taha Taha Abdel
Physics Department, College of Science, Jouf University, P.O. Box 2014, Sakaka, Saudi Arabia.
Physics and Engineering Mathematics Department, Faculty of Electronic Engineering, Menoufia University, Menouf 32952, Egypt.
Heliyon. 2024 May 23;10(11):e31785. doi: 10.1016/j.heliyon.2024.e31785. eCollection 2024 Jun 15.

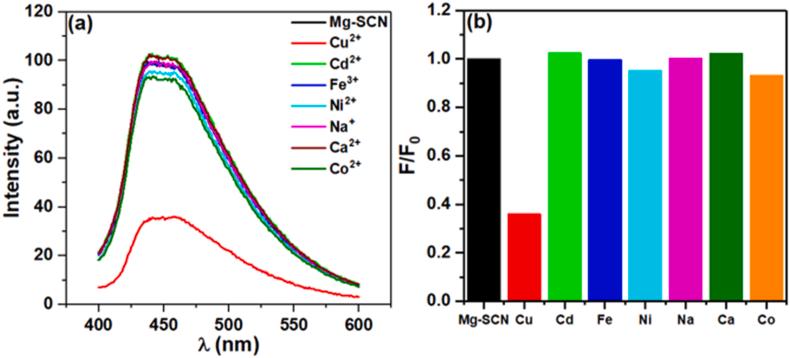

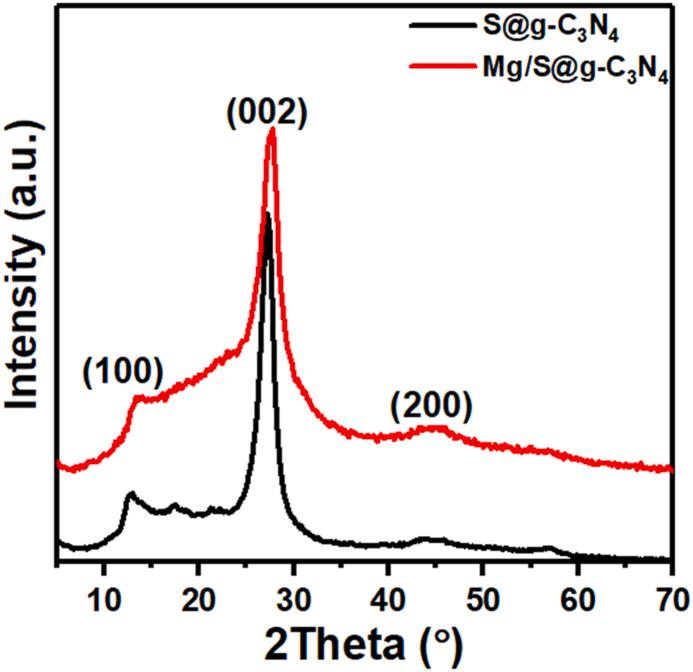

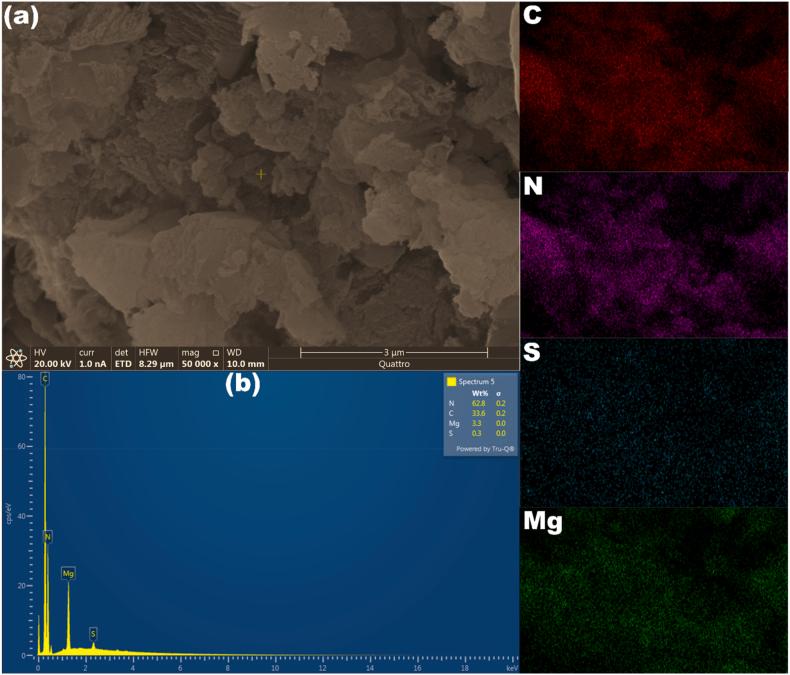

This work describes the development of a novel fluorescence sensor based on magnesium/S@g-CN nanosheets for selective detection of copper (Cu) ions in water. Mg/S@g-CN nanosheets were prepared by the polycondensation technique and investigated by X-ray diffraction (XRD), ATR-FTIR spectroscopy, scanning electron microscopy (SEM), surface area (BET), and UV-Vis optical absorption measurements. XRD and ATR-FTIR analysis showed the characteristic peaks for S@g-CN. The broad full width at half maximum (0.056 radians) implies a smaller crystallite size, representing smaller Mg/S@g-CN sheets. SEM micrograph showed non-exfoliated nanosheets with flake-like structures. The EDS mapping confirmed the presence of magnesium, carbon, nitrogen, and sulfur throughout the nanosheets. The Mg/S@g-CN nanosheets possess a high surface area of 40 m/g and mesopores within the nanosheets, with a size of 1.57 nm. The band gap of the Mg/S@g-CN nanosheet was estimated to be 3.0 eV. The sensor exhibits a strong quenching response towards Cu ions, with a decrease in fluorescence intensity as the concentration of Cu increased from 1 μM to 20 μM. The Stern-Volmer quenching constant (K) showed a relatively high value of 185053 M. The estimated value of LOD by the Mg/S@g-CN sensor for Cu was 16.2 nM. The sensor offered high sensitivity and selectivity for Cu detection over other heavy metals.
这项工作描述了一种基于镁/硫@石墨相氮化碳纳米片的新型荧光传感器的开发,用于选择性检测水中的铜(Cu)离子。通过缩聚技术制备了镁/硫@石墨相氮化碳纳米片,并通过X射线衍射(XRD)、衰减全反射傅里叶变换红外光谱(ATR-FTIR)、扫描电子显微镜(SEM)、比表面积(BET)和紫外可见吸收光谱进行了研究。XRD和ATR-FTIR分析显示了硫@石墨相氮化碳的特征峰。半高宽较宽(0.056弧度)意味着微晶尺寸较小,代表较小的镁/硫@石墨相氮化碳片。SEM显微照片显示了具有片状结构的未剥离纳米片。能谱映射证实了整个纳米片中存在镁、碳、氮和硫。镁/硫@石墨相氮化碳纳米片具有40 m²/g的高比表面积和纳米片内尺寸为1.57 nm的中孔。镁/硫@石墨相氮化碳纳米片的带隙估计为3.0 eV。该传感器对铜离子表现出强烈的猝灭响应,随着铜浓度从1 μM增加到20 μM,荧光强度降低。斯特恩-沃尔默猝灭常数(K)显示出相对较高的值,为185053 M⁻¹。镁/硫@石墨相氮化碳传感器对铜的检测限估计值为16.2 nM。该传感器对铜的检测具有高灵敏度和选择性,优于其他重金属。
