Department of Radiology and Research Institute of Radiology, Republic of Korea.
Division of Cardiology, Asan Medical Center, University of Ulsan College of Medicine, Seoul, Republic of Korea.
PLoS One. 2024 Jun 6;19(6):e0303986. doi: 10.1371/journal.pone.0303986. eCollection 2024.

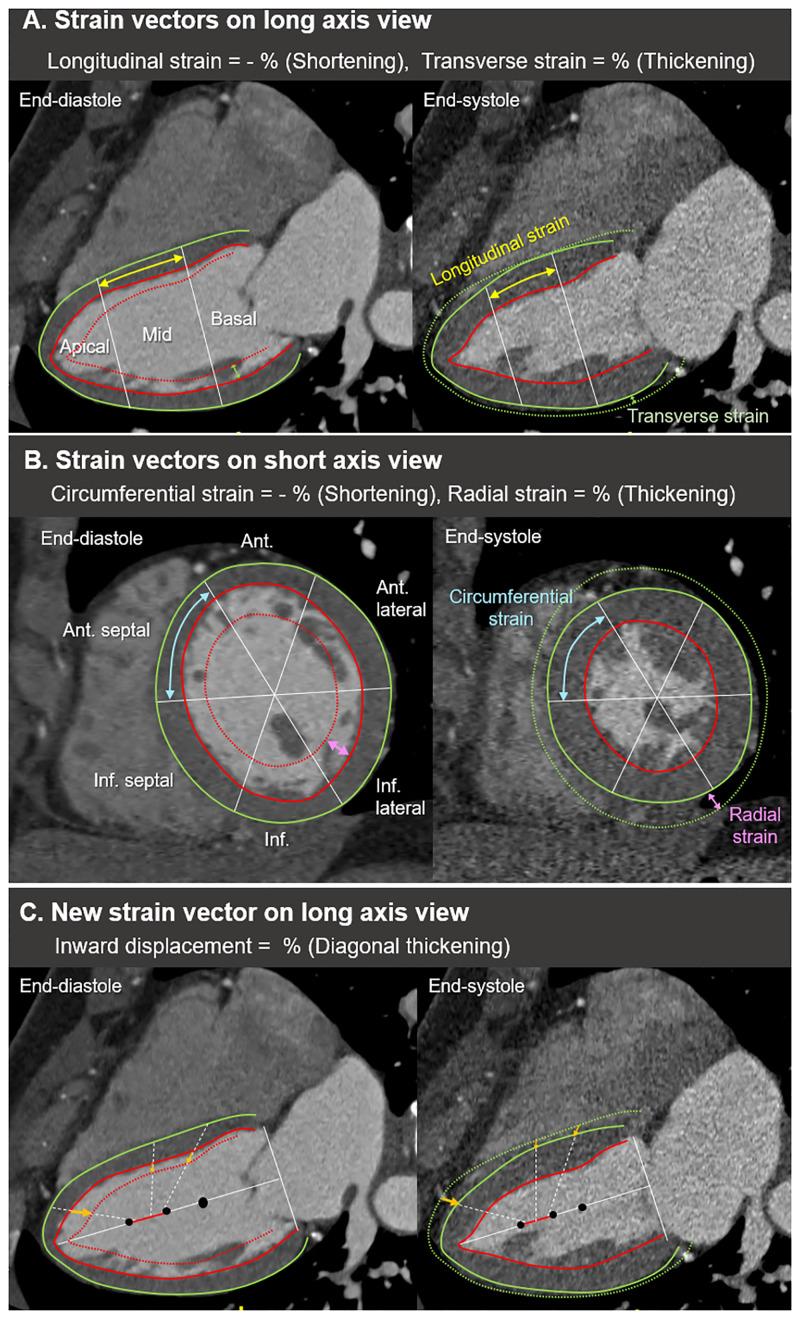

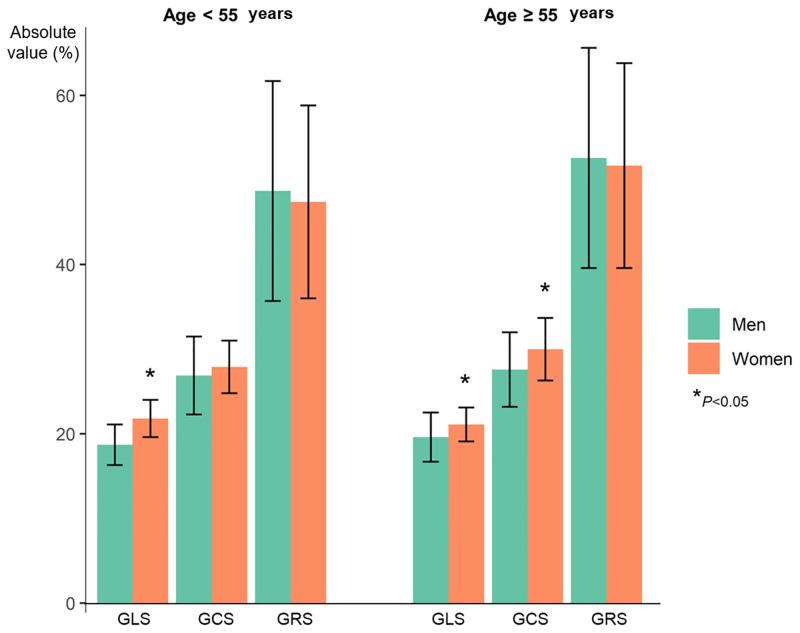

Research on cardiovascular diseases using CT-derived strain is gaining momentum, yet there is a paucity of information regarding reference standard values beyond echocardiography, particularly in cardiac chambers other than the left ventricle (LV). We aimed to compile CT-derived strain values from the four cardiac chambers in healthy adults and assess the impact of age and sex on myocardial strains. This study included 101 (mean age: 55.2 ± 9.0 years, 55.4% men) consecutive healthy individuals who underwent multiphase cardiac CT. CT-derived cardiac strains, including LV global and segmental longitudinal, circumferential, and transverse strains, left atrial (LA), right atrial (RA), and right ventricle (RV) strains were measured by the commercially available software. Strain values were classified and compared by their age and sex. The normal range of CT-derived LV global longitudinal strain (GLS), global circumferential strain (GCS), and global radial strain (GRS) were -20.2 ± 2.7%, -27.9 ± 4.1%, and 49.4 ± 12.1%, respectively. For LA, reservoir strain, pump strain, and conduit strain were 28.6 ± 8.5%, 13.2 ± 6.4%, and 15.5 ± 8.6%, respectively. The GLS of RA and RV were 27.9 ± 10.9% and -22.0 ± 5.7%, respectively. The absolute values of GLS of RA and RV of women were higher than that in men (32.4 ± 11.4 vs. 24.3 ± 9.1 and -25.2 ± 4.7 vs. -19.4 ± 5.0, respectively; p<0.001, both). Measurement of CT-derived strain in four cardiac chambers is feasible. The reference ranges of CT strains in four cardiac chambers can be used for future studies of various cardiac diseases using the cardiac strains.
使用 CT 衍生应变研究心血管疾病正受到关注,但除左心室(LV)以外的其他心脏腔室(如右心房、右心室)的超声心动图以外的参考标准值信息有限。本研究旨在汇编健康成年人四个心腔的 CT 衍生应变值,并评估年龄和性别对心肌应变的影响。该研究纳入了 101 名(平均年龄:55.2±9.0 岁,55.4%为男性)连续的健康个体,他们接受了多期心脏 CT 检查。使用商业可得的软件测量了 CT 衍生的心脏应变,包括 LV 整体和节段性纵向、周向和横向应变,左心房(LA)、右心房(RA)和右心室(RV)应变。通过年龄和性别对应变值进行分类和比较。CT 衍生的 LV 整体纵向应变(GLS)、整体周向应变(GCS)和整体径向应变(GRS)的正常范围分别为-20.2±2.7%、-27.9±4.1%和 49.4±12.1%。LA 的储备应变、泵应变和导管应变分别为 28.6±8.5%、13.2±6.4%和 15.5±8.6%。RA 和 RV 的 GLS 分别为 27.9±10.9%和-22.0±5.7%。女性 RA 和 RV 的 GLS 绝对值高于男性(32.4±11.4 比 24.3±9.1 和-25.2±4.7 比-19.4±5.0,均 P<0.001)。四个心腔 CT 衍生应变的测量是可行的。四个心腔 CT 应变的参考范围可用于未来使用心脏应变研究各种心脏疾病。
