Shi Boya, Kan Lian, Zhao Yuliang, Jin Shangzhong, Jiang Li
College of Optical and Electronic Technology, China Jiliang University, Hangzhou 310018, China.
Nanomaterials (Basel). 2024 Jun 6;14(11):987. doi: 10.3390/nano14110987.

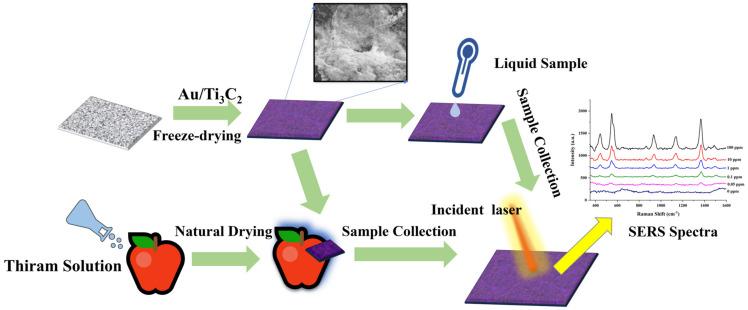

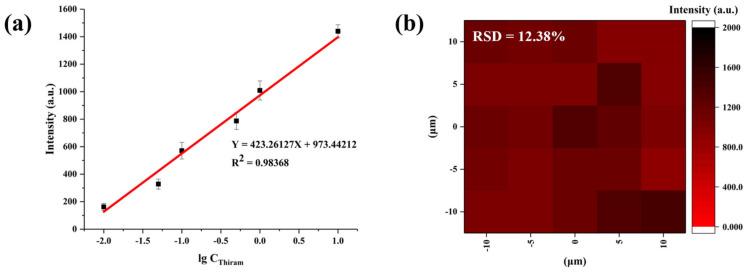

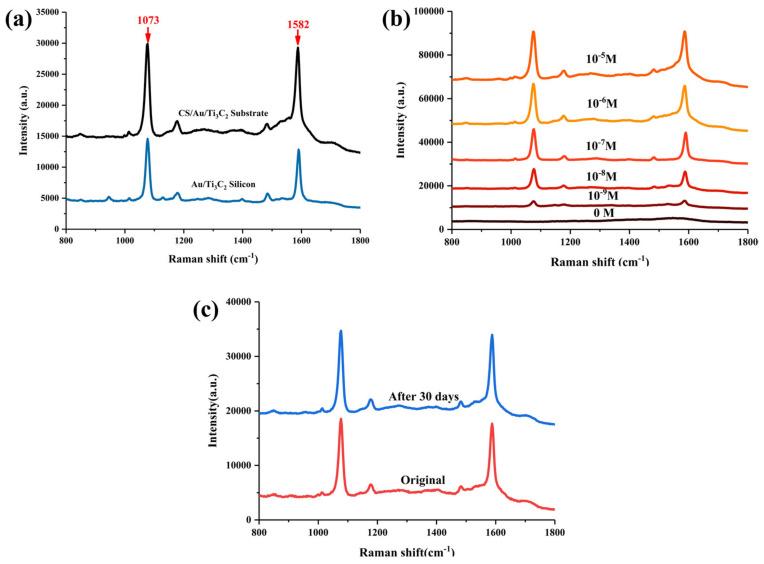

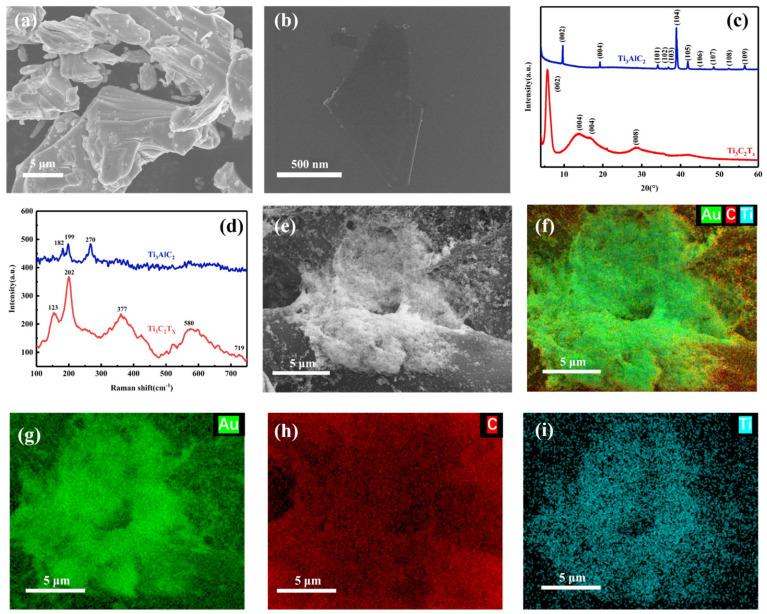

There is a growing interest in the use of flexible substrates for label-free and in situ Surface-enhanced Raman Spectroscopy (SERS) applications. In this study, a flexible SERS substrate was prepared using self-assembled Au/TiC nanocomposites deposited on a cellulose (CS) paper. The Au/TiC nanocomposites uniformly wrapped around the cellulose fibers to provide a three-dimensional plasma SERS platform. The limit of detection (LOD) of CS/Au/TiC was as low as 10 M for 4-mercaptobenzoic acid(4-MBA) and crystal violet (CV), demonstrating good SERS sensitivity. CS/Au/TiC was used for in situ SERS detection of thiram on apple surfaces by simple swabbing, and a limit of detection of 0.05 ppm of thiram was achieved. The results showed that CS/Au/TiC is a flexible SERS substrate that can be used for the detection of thiram on apple surfaces. These results demonstrate that CS/Au/TiC can be used for the non-destructive, rapid and sensitive detection of pesticides on fruit surfaces.
人们对将柔性基底用于无标记和原位表面增强拉曼光谱(SERS)应用的兴趣与日俱增。在本研究中,通过将自组装的金/碳化钛纳米复合材料沉积在纤维素(CS)纸上制备了一种柔性SERS基底。金/碳化钛纳米复合材料均匀地包裹在纤维素纤维周围,以提供一个三维等离子体SERS平台。对于4-巯基苯甲酸(4-MBA)和结晶紫(CV),CS/金/碳化钛的检测限低至10⁻⁸ M,显示出良好的SERS灵敏度。通过简单擦拭,CS/金/碳化钛用于苹果表面福美双的原位SERS检测,实现了0.05 ppm福美双的检测限。结果表明,CS/金/碳化钛是一种可用于检测苹果表面福美双的柔性SERS基底。这些结果表明,CS/金/碳化钛可用于水果表面农药的无损、快速和灵敏检测。
