Shi Yinbiao, Su Xiaojia, Wang Xiaoyan, Ding Mingye
College of Science, Nanjing Forestry University, Nanjing 210037, China.
Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin 300071, China.
Polymers (Basel). 2024 Jun 1;16(11):1568. doi: 10.3390/polym16111568.

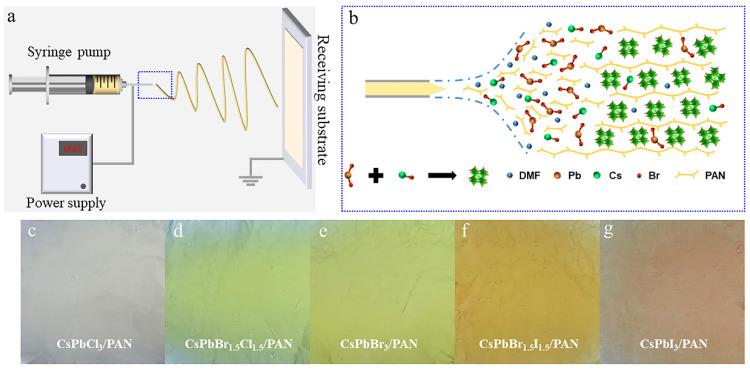

Inorganic CsPbX (X = Cl, Br, I) perovskite quantum dots (PQDs) have attracted widespread attention due to their excellent optical properties and extensive application prospects. However, their inherent structural instability significantly hinders their practical application despite their outstanding optical performance. To enhance stability, an in situ electrospinning strategy was used to synthesize CsPbX/polyacrylonitrile composite nanofibers. By optimizing process parameters (e.g., halide ratio, electrospinning voltage, and heat treatment temperature), all-inorganic CsPbX PQDs have been successfully grown in a polyacrylonitrile (PAN) matrix. During the electrospinning process, the rapid solidification of electrospun fibers not only effectively constrained the formation of large-sized PQDs but also provided effective physical protection for PQDs, resulting in the improvement in the water stability of PQDs by minimizing external environmental interference. Even after storage in water for over 100 days, the PQDs maintained approximately 93.5% of their photoluminescence intensity. Through the adjustment of halogen elements, the as-obtained composite nanofibers exhibited color-tunable luminescence in the visible light region, and based on this, a series of multicolor anti-counterfeiting patterns were fabricated. Additionally, benefiting from the excellent water stability and optical performance, the CsPbBr/PAN composite film was combined with red-emitting KSiF:Mn (KSF) on a blue LED (460 nm), producing a stable and efficient WLED device with a color temperature of around 6000 K and CIE coordinates of (0.318, 0.322). These results provide a general approach to synthesizing PQDs/polymer nanocomposites with excellent water stability and multicolor emission, thereby promoting their practical applications in multifunctional optoelectronic devices and advanced anti-counterfeiting.
无机CsPbX(X = Cl、Br、I)钙钛矿量子点(PQDs)因其优异的光学性能和广阔的应用前景而受到广泛关注。然而,尽管它们具有出色的光学性能,但其固有的结构不稳定性严重阻碍了它们的实际应用。为了提高稳定性,采用原位静电纺丝策略合成了CsPbX/聚丙烯腈复合纳米纤维。通过优化工艺参数(如卤化物比例、静电纺丝电压和热处理温度),全无机CsPbX PQDs已成功生长在聚丙烯腈(PAN)基质中。在静电纺丝过程中,电纺纤维的快速固化不仅有效地抑制了大尺寸PQDs的形成,还为PQDs提供了有效的物理保护,通过最小化外部环境干扰提高了PQDs的水稳定性。即使在水中储存超过100天后,PQDs仍保持其光致发光强度的约93.5%。通过调整卤素元素,所获得的复合纳米纤维在可见光区域表现出颜色可调的发光,并基于此制备了一系列多色防伪图案。此外,受益于优异的水稳定性和光学性能,CsPbBr/PAN复合薄膜与发红光的KSiF:Mn(KSF)在蓝色发光二极管(460 nm)上结合,制备出了色温和CIE坐标分别约为6000 K和(0.318, 0.322)的稳定高效的白光发光二极管器件。这些结果提供了一种合成具有优异水稳定性和多色发射的PQDs/聚合物纳米复合材料的通用方法,从而促进了它们在多功能光电器件和先进防伪中的实际应用。
