Numerical simulation of blasting behavior of rock mass with cavity under high in-situ stress.

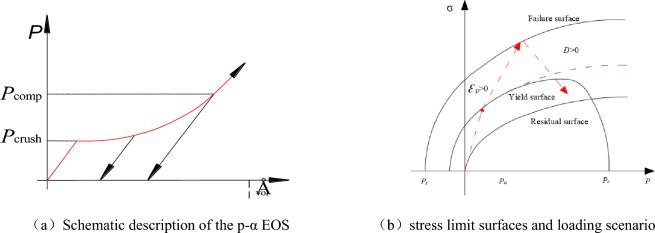

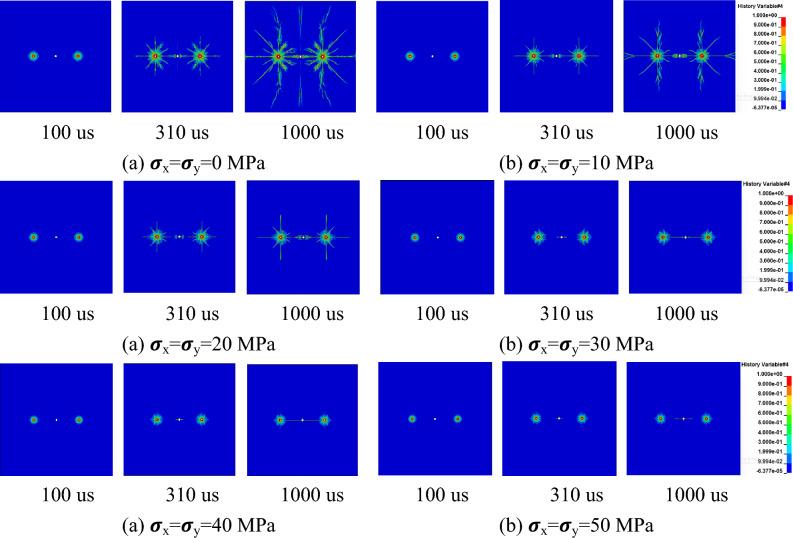

With the shift of coal seam mining to the deep, the in-situ stress of coal and rock mass increases gradually. High ground stress can limit the generation of rock cracks caused by blasting, and blasting usually shows different crushing states than low stress conditions. In order to study the blasting expansion rule of rock mass with cavity under high ground stress and the rock mass fracture state under different side stress coefficients. In this paper, the effective range of blasting and the stress distribution under blasting load are analyzed theoretically. The RHT (Riedel-Hiermaier-Thoma) model is used to numerically simulate the blasting process of rock mass with cavity under different ground stress, and the influence of ground stress and lateral pressure coefficient on the crack growth of rock mass is studied. The results show that when there is no ground stress, the damage cracks in rock mass are more concentrated in the horizontal direction and the fracture development tends to the direction where the holes are located, which confirms the guiding effect and stress concentration effect of the holes in rock mass, which helps to promote the crack penetration between the hole and the hole. The length difference of horizontal and vertical damage cracks in rock mass increases with the increase of horizontal and vertical stress difference. Under the same lateral stress coefficient, the larger the horizontal and vertical stress difference is, the stronger the inhibition effect on crack formation is. For blasting of rock mass with high ground stress, the crack formation length between gun holes decreases with the increase of stress level, and the crack extends preferentially in the direction of higher stress. Therefore, the placement of gun holes along the direction of greater stress and the shortening of hole spacing are conducive to the penetration of cracks between gun holes and empty holes. The research can provide reference for rock breaking behavior of deep rock mass blasting.
