A Comparative Study on the Wear Performance and High-Temperature Oxidation of Co-Free Cermets and Hardmetals.

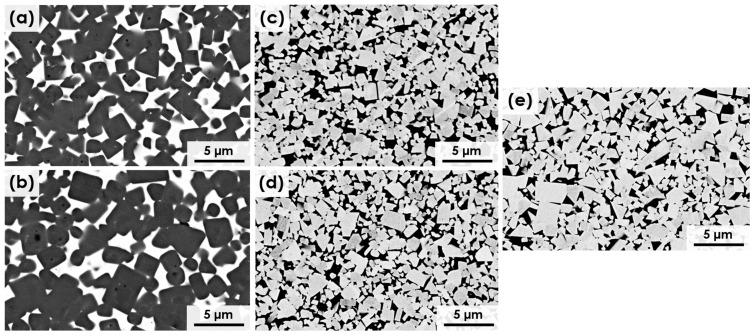

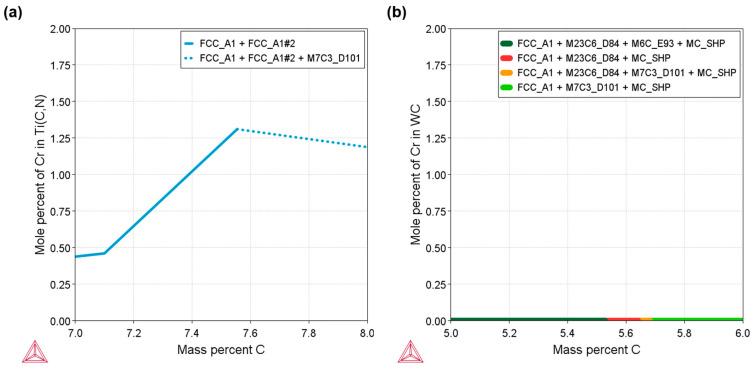

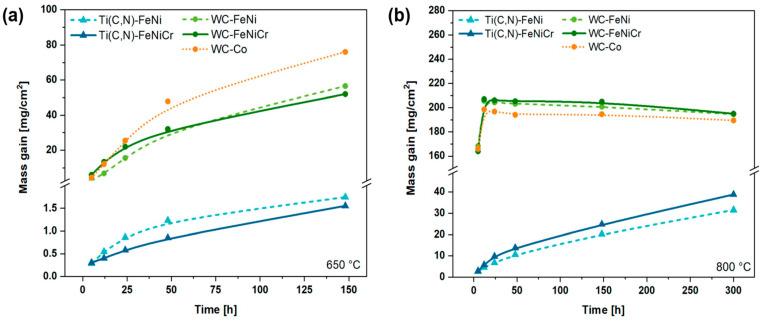

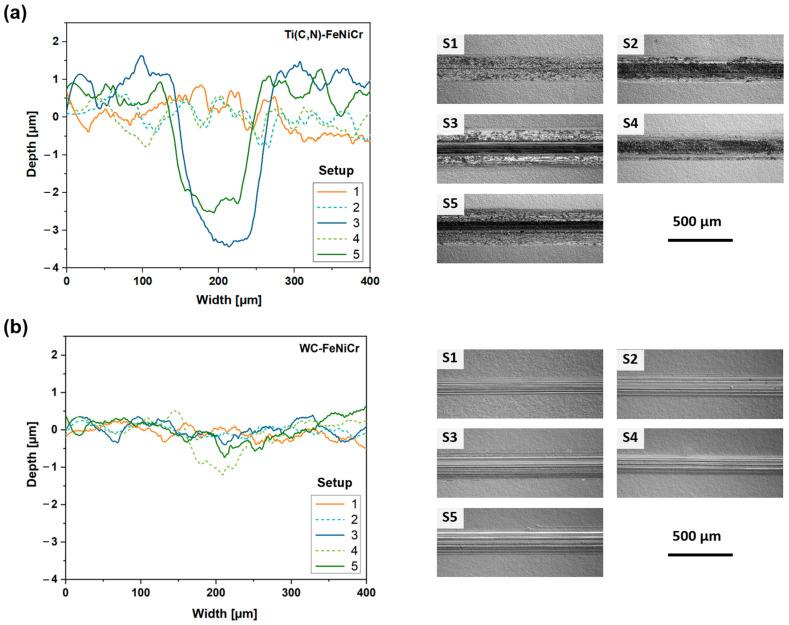

The present investigation addresses the mechanical properties, wear behaviour, and high-temperature oxidation of cermets and hardmetals based on either Ti(C,N) or WC and a metal binder based on Fe15Ni or Fe15Ni10Cr. This study also includes a commercial-grade WC-Co for comparative purposes. The production of these materials involved a powder metallurgy and sinter-HIP processing route under identical conditions. It is found that WC-based materials have superior mechanical properties, including hardness, fracture toughness, transversal rupture strength (TRS), and wear response, compared to Ti(C,N)-based materials. However, the latter show better oxidation behaviour than the former. Notably, WC-FeNi exhibits a higher hardness and TRS than the commercial-grade material (an increase of 7% and 9%, respectively). The difference in wear behaviour is due to the difference in wear mechanisms. In this regard, cermets wear through a tribolayer of Ti and Fe oxides, while hardmetals primarily wear through abrasion from ploughing. Thus, hardmetals exhibit a lower coefficient of friction (COF) and wear rate than cermets. Furthermore, Ti(C,N)-based materials form a protective layer of TiO, which enhances their integrity and reduces mass gain. The addition of Cr to the FeNi binder only appears to have a clear effect on the TRS of the materials.
