Intelligent Inspection Method and System of Plastic Gear Surface Defects Based on Adaptive Sample Weighting Deep Learning Model.

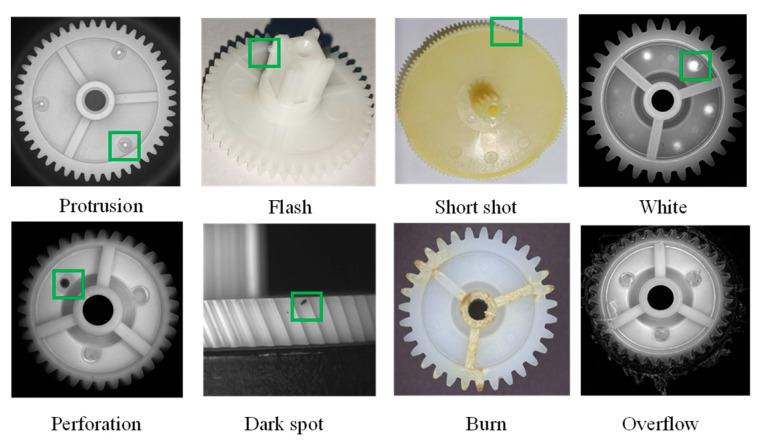

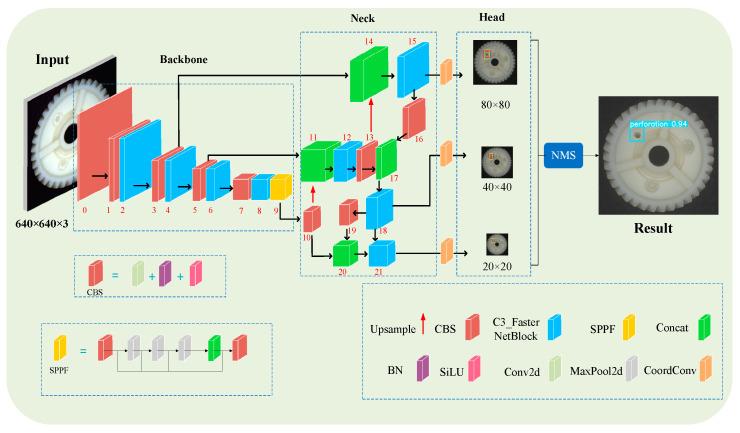

After injection molding, plastic gears often exhibit surface defects, including those on end faces and tooth surfaces. These defects encompass a wide range of types and possess complex characteristics, which pose challenges for inspection. Current visual inspection systems for plastic gears suffer from limitations such as single-category defect inspection and low accuracy. There is an urgent industry need for a comprehensive and accurate method and system for inspecting defects on plastic gears, with improved inspection capability and higher accuracy. This paper presents an intelligent inspection algorithm network for plastic gear defects (PGD-net), which effectively captures subtle defect features at arbitrary locations on the surface compared to other models. An adaptive sample weighting method is proposed and integrated into an improved Focal-IoU loss function to address the issue of low inspection accuracy caused by imbalanced defect dataset distributions, thus enhancing the regression accuracy for difficult defect categories. CoordConv layers are incorporated into each inspection head to improve the model's generalization capability. Furthermore, a dataset of plastic gear surface defects comprising 16 types of defects is constructed, and our algorithm is trained and tested on this dataset. The PGD-net achieves a comprehensive mean average precision (mAP) value of 95.6% for the 16 defect types. Additionally, an online inspection system is developed based on the PGD-net algorithm, which can be integrated with plastic gear production lines to achieve online full inspection and automatic sorting of plastic gear defects. The entire system has been successfully applied in plastic gear production lines, conducting daily inspections of over 60,000 gears.
