Zaidan Liena, Novodchuk Inna, H Xu Alexander, Nica Alexandru, Takaloo Saeed, Lloyd Christopher, Karimi Reza, Sanderson Joe, Bajcsy Michal, Yavuz Mustafa
Department of Electrical and Computer Engineering, University of Waterloo, Waterloo, ON N2L 3G1, Canada.
Waterloo Institute for Nanotechnology (WIN), University of Waterloo, Waterloo, ON N2L 3G1, Canada.
Materials (Basel). 2024 Jul 24;17(15):3648. doi: 10.3390/ma17153648.

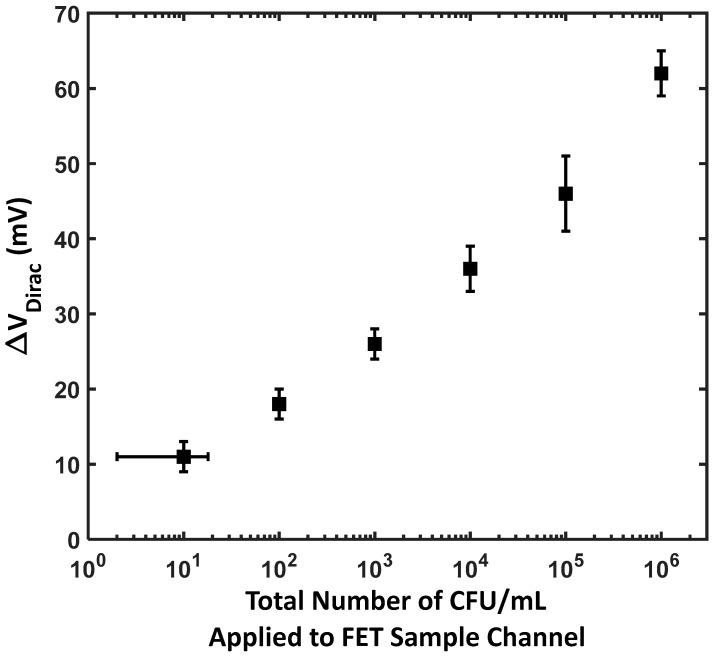

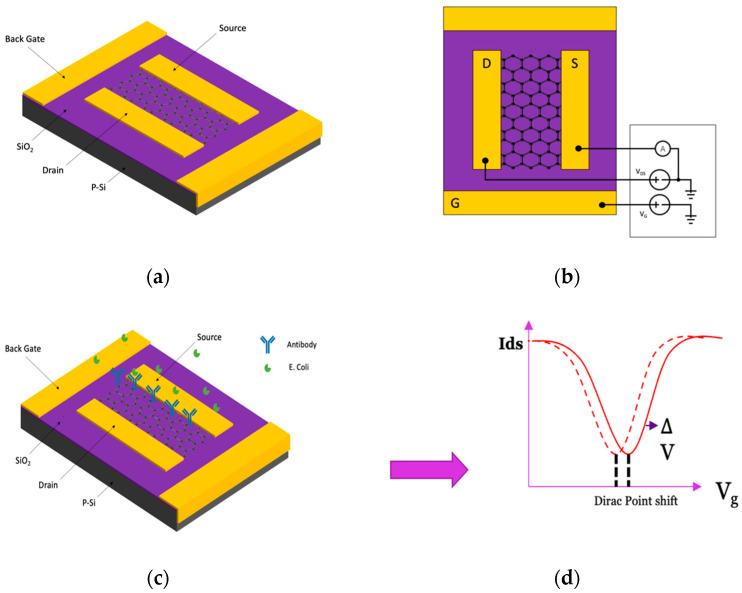

() was among the first organisms to have its complete genome published (Genome Sequence of 1997 Science). It is used as a model system in microbiology research. can cause life-threatening illnesses, particularly in children and the elderly. Possible contamination by the bacteria also results in product recalls, which, alongside the potential danger posed to individuals, can have significant financial consequences. We report the detection of live () in liquid samples using a biosensor based on a field-effect transistor (FET) biosensor with B/N co-coped reduced graphene oxide (rGO) gel (BN-rGO) as the transducer material. The FET was functionalized with antibodies to detect K12 O-antigens in phosphate-buffered saline (PBS). The biosensor detected the presence of planktonic bacterial cells within a mere 2 min. The biosensor exhibited a limit of detection (LOD) of 10 cells per sample, which can be extrapolated to a limit of detection at the level of a single cell per sample and a detection range of at least 10-10 CFU/mL. The selectivity of the biosensor for was demonstrated using () as a sample contaminant. We also present a comparison of our functionalized BN-rGO FET biosensor with established detection methods of k12 bacteria, as well as with state-of-the-art detection mechanisms.
()是最早公布其完整基因组的生物之一(《1997年科学》杂志上的基因组序列)。它被用作微生物学研究中的模型系统。()可引发危及生命的疾病,尤其是在儿童和老年人中。细菌的可能污染还会导致产品召回,这除了对个人构成潜在危险外,还可能产生重大的经济后果。我们报告了一种基于场效应晶体管(FET)生物传感器的生物传感器在液体样品中检测活的()的情况,该生物传感器以B/N共掺杂还原氧化石墨烯(rGO)凝胶(BN-rGO)作为传感材料。FET用抗体进行功能化处理,以检测磷酸盐缓冲盐水(PBS)中的K12 O抗原。该生物传感器在短短2分钟内就检测到了浮游细菌细胞的存在。该生物传感器的检测限(LOD)为每个样品10个细胞,这可以外推到每个样品单个细胞水平的检测限和至少10-10 CFU/mL的检测范围。使用()作为样品污染物证明了该生物传感器对()的选择性。我们还将功能化的BN-rGO FET生物传感器与已建立的k12细菌检测方法以及最先进的检测机制进行了比较。
