结合数字图像处理与统计技术的地表水中微塑料识别工具

Identification Tools of Microplastics from Surface Water Integrating Digital Image Processing and Statistical Techniques.

作者信息

Dacewicz Ewa, Łobos-Moysa Ewa, Chmielowski Krzysztof

机构信息

Department of Sanitary Engineering and Water Management, Faculty of Environmental Engineering and Land Surveying, University of Agriculture in Kraków, Adam Mickiewicz Ave. 24/28, 30-059 Kraków, Poland.

Department of Water and Wastewater Engineering, Faculty of Power and Environmental Engineering, Silesian University of Technology, Akademicka 2A Str., 44-100 Gliwice, Poland.

出版信息

Materials (Basel). 2024 Jul 26;17(15):3701. doi: 10.3390/ma17153701.

Abstract

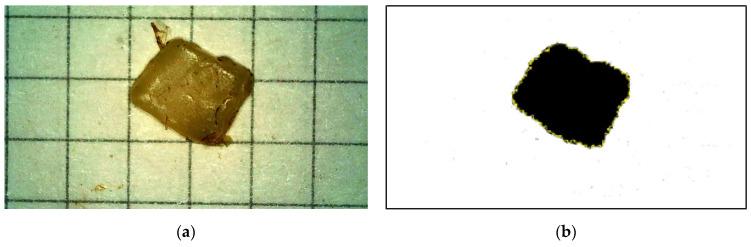

The primary objective of this study was to demonstrate the potential of digital image analysis as a tool to identify microplastic (MP) particles in surface waters and to facilitate their characterisation in terms of 2D and 3D morphology. Digital image analysis preceded by microscopic analysis was used for an exhaustive quantitative and qualitative evaluation of MPs isolated from the Vistula River. Using image processing procedures, 2D and 3D shape descriptors were determined. Principal Component Analysis was used to interpret the relationships between the parameters studied, characterising MP particle geometry, type and colour. This multivariate analysis of the data allowed three or four main factors to be extracted, explaining approximately 90% of the variation in the data characterising MP morphology. It was found that the first principal component for granules, flakes and films was largely represented by strongly correlated with 2D shape descriptors (area, perimeter, equivalent area diameter) and 3D shape descriptors (Corey Shape Factor, Compactness, Dimensionality). Considering the scraps, principal component PC1 was represented by only five of the above descriptors, and the Compactness variable had the largest contribution to principal component PC2. In addition, for granules, flakes and films, a relationship between 2D shape and the colour of their particles could be observed. For the most numerous MP group identified of multicoloured scraps, no such association was found. The results of our study can be used for further multivariate analysis regarding the presence of microplastic floating on the river surface, with a particular focus on particles of secondary origin. This is of key importance for optimising future efforts in conducting small-scale and multidimensional monitoring of and reducing plastics in the aquatic environment.

摘要

本研究的主要目的是证明数字图像分析作为一种工具,在识别地表水中微塑料(MP)颗粒并促进其二维和三维形态表征方面的潜力。在显微镜分析之前进行数字图像分析,用于对从维斯瓦河分离出的微塑料进行详尽的定量和定性评估。通过图像处理程序,确定了二维和三维形状描述符。主成分分析用于解释所研究参数之间的关系,这些参数表征了微塑料颗粒的几何形状、类型和颜色。对数据的这种多变量分析允许提取三到四个主要因素,解释了表征微塑料形态的数据中约90%的变化。结果发现,颗粒、薄片和薄膜的第一主成分在很大程度上由与二维形状描述符(面积、周长、等效面积直径)和三维形状描述符(科里形状因子、紧密度、维度)高度相关的因素表示。对于碎片,主成分PC1仅由上述五个描述符表示,紧密度变量对主成分PC2的贡献最大。此外,对于颗粒、薄片和薄膜,可以观察到二维形状与其颗粒颜色之间的关系。对于所识别出的数量最多的多色碎片这一微塑料组,未发现此类关联。我们的研究结果可用于进一步对漂浮在河面上的微塑料的存在进行多变量分析,特别关注二次来源的颗粒。这对于优化未来在水生环境中进行小规模和多维度塑料监测及减少塑料方面的工作至关重要。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7b7c/11313241/8d2259948e03/materials-17-03701-g001.jpg
