An effective ultrasound fetal palate screening software based on the "sequential sector scan through the oral fissure" and three-dimensional ultrasound.

BACKGROUND

Orofacial clefts are one of the most common congenital malformations of the fetal face and ultrasound is mainly responsible for its diagnosis. It is difficult to view the fetal palate, so there is currently no unified standard for fetal palate screening, and the diagnosis of cleft palate is not included in the relevant prenatal ultrasound screening guidelines. Many prenatal diagnoses for cleft palate are missed due to the lack of effective screening methods. Therefore, it is imperative to increase the display rate of the fetal palate, which would improve the detection rate and diagnostic accuracy for cleft palate. We aim to introduce a fetal palate screening software based on the "sequential sector scan though the oral fissure", an effective method for fetal palate screening which was verified by our follow up results and three-dimensional ultrasound and to evaluate its feasibility and clinical practicability.

METHODS

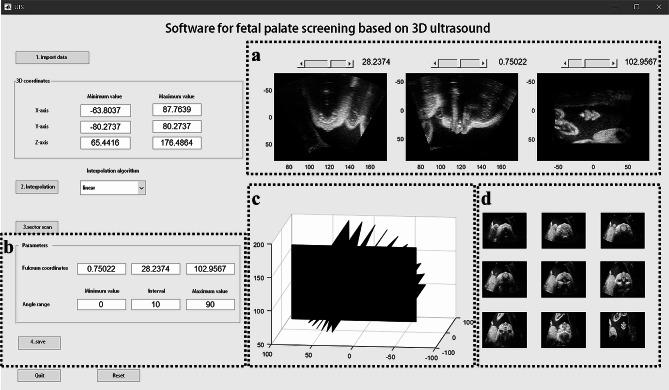

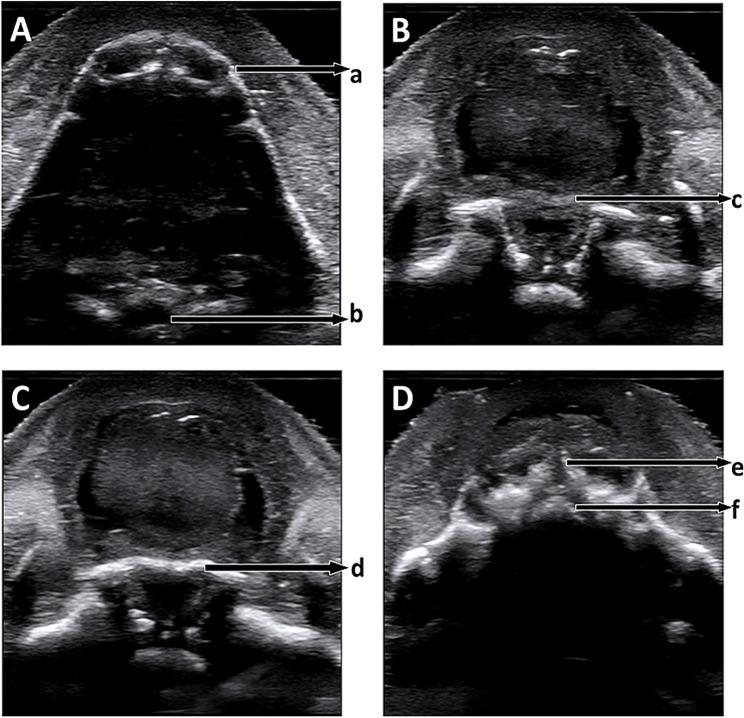

A software was designed and programmed based on "sequential sector scan through the oral fissure" and three-dimensional ultrasound. The three-dimensional ultrasound volume data of the fetal face were imported into the software. Then, the median sagittal plane was taken as the reference interface, the anterior upper margin of the mandibular alveolar bone was selected as the fulcrum, the interval angles, and the number of layers of the sector scan were set, after which the automatic scan was performed. Thus, the sector scan sequential planes of the mandibular alveolar bone, pharynx, soft palate, hard palate, and maxillary alveolar bone were obtained in sequence to display and evaluate the palate. In addition, the feasibility and accuracy of the software in fetal palate displaying and screening was evaluated by actual clinical cases.

RESULTS

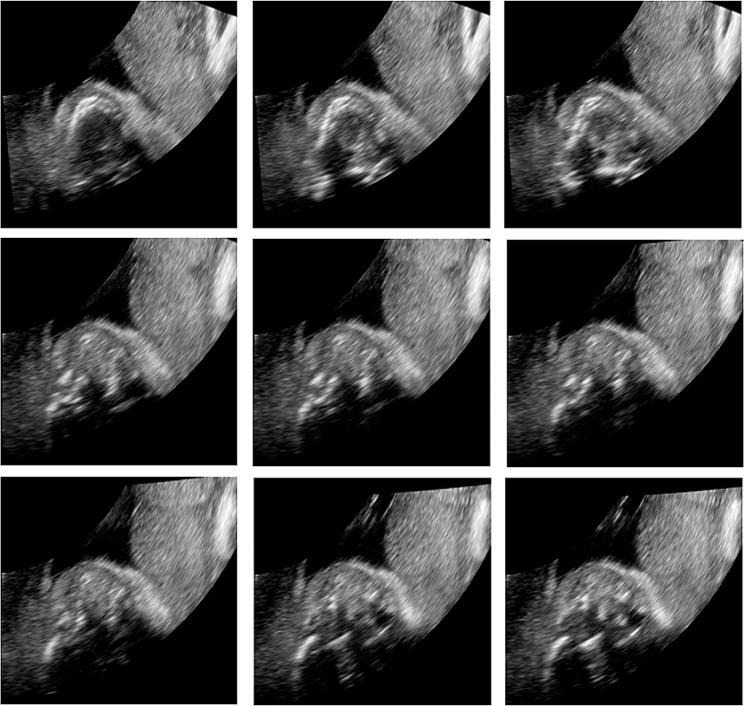

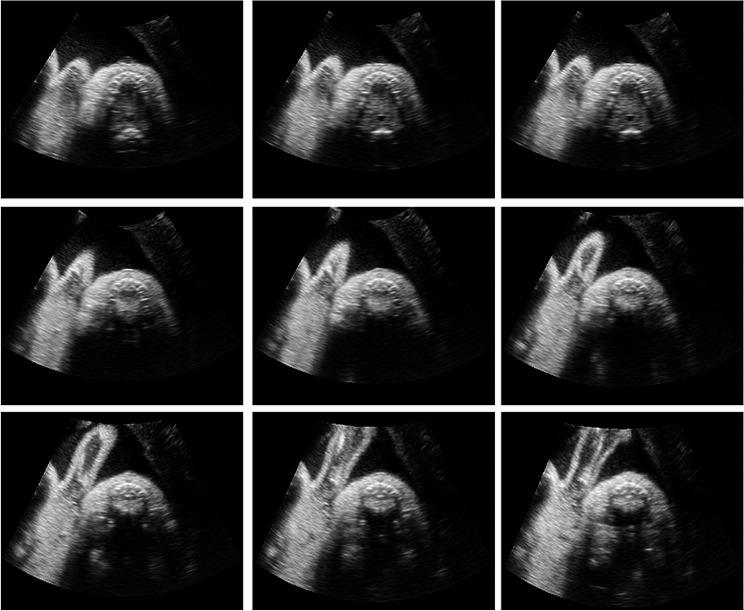

Full views of the normal fetal palates and the defective parts of the cleft palates were displayed, and relatively clear sequential tomographic images and continuous dynamic videos were formed after the three-dimensional volume data of 10 normal fetal palates and 10 cleft palates were imported into the software.

CONCLUSIONS

The software can display fetal palates more directly which might allow for a new method of fetal palate screening and cleft palate diagnosis.
