Zhang Zihui, Zhao Yingbo
School of Physical Science and Technology, ShanghaiTech University, Shanghai, China.
Shanghai Key Laboratory of High-Resolution Electron Microscopy, ShanghaiTech University, Shanghai, China.
Nat Commun. 2024 Aug 26;15(1):7339. doi: 10.1038/s41467-024-51845-1.

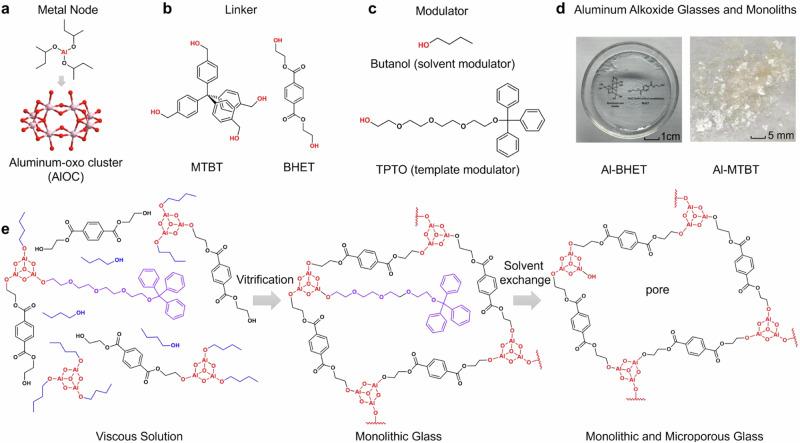

Metal-organic network-forming glasses are an emerging type of material capable of combining the modular design and high porosity of metal-organic frameworks and the high processability and optical transparency of glasses. However, a generalizable strategy for achieving both high porosity and high glass-forming ability in modularly designed metal-organic networks has yet to be developed. Herein, we develop a series of aluminum alkoxide glasses and monoliths by linking aluminum-oxo clusters with alcohol linkers. A bulky monodentate alcohol modulator is introduced during synthesis and act as both network plasticizer and pore template, which can be removed by the subsequent solvent exchange to give gas accessible pores. Glasses synthesized with the modulator template exhibit well-defined glass transitions in their as-synthesized form and high surface areas up to 500 m/g after activation, making them among the most porous glassy materials. The aluminum alkoxide glasses also have optical transparency and fluorescent properties, and their structures are elucidated by pair-distribution functions, spectroscopic and compositional analysis. These findings could significantly expand the library of microporous metal-organic network-forming glasses and enable their future applications.
金属有机网络形成玻璃是一种新兴材料,它能够将金属有机框架的模块化设计和高孔隙率与玻璃的高加工性和光学透明性结合起来。然而,在模块化设计的金属有机网络中实现高孔隙率和高玻璃形成能力的通用策略尚未开发出来。在此,我们通过将铝氧簇与醇连接体相连,开发了一系列醇铝玻璃和整体材料。在合成过程中引入了一种体积较大的单齿醇调节剂,它同时作为网络增塑剂和孔模板,随后通过溶剂交换将其去除,从而得到可让气体进入的孔。用调节剂模板合成的玻璃在其合成形式下表现出明确的玻璃转变,活化后具有高达500 m²/g的高比表面积,使其成为孔隙率最高的玻璃材料之一。醇铝玻璃还具有光学透明性和荧光特性,其结构通过对分布函数、光谱和成分分析得以阐明。这些发现可能会显著扩展微孔金属有机网络形成玻璃的种类,并推动它们未来的应用。
