Department of Neurology, Hospital Privado Universitario de Córdoba, Córdoba X5016, Argentina.
Department of Neurosurgery, Inselspital, Bern University Hospital, and University of Bern, 3010 Bern, Switzerland.
Medicina (Kaunas). 2024 Jul 30;60(8):1242. doi: 10.3390/medicina60081242.

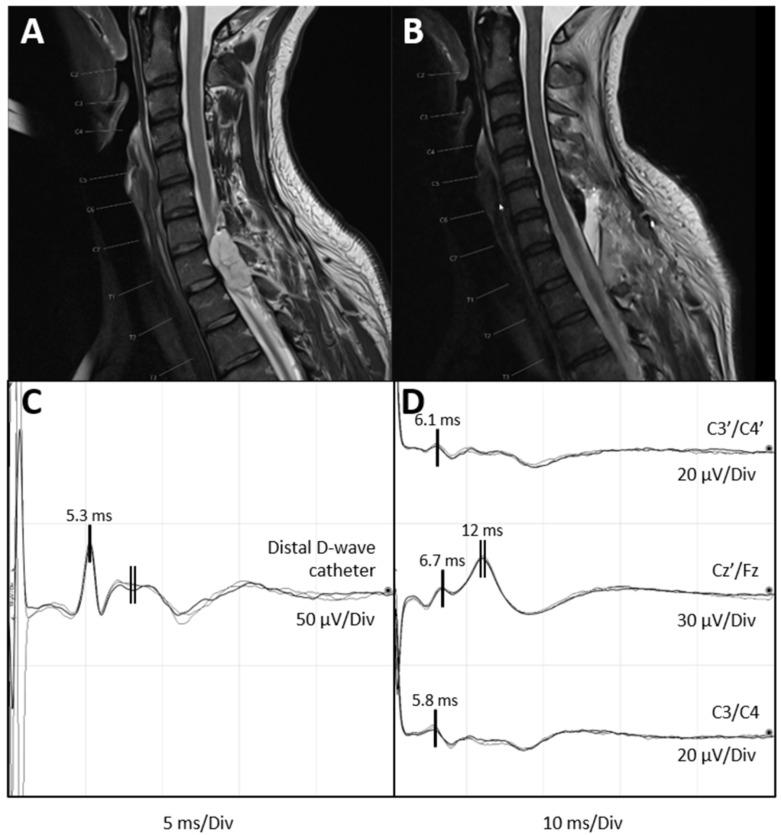

D-waves (also called direct waves) result from the direct activation of fast-conducting, thickly myelinated corticospinal tract (CST) fibres after a single electrical stimulus. During intraoperative neurophysiological monitoring, D-waves are used to assess the long-term motor outcomes of patients undergoing surgery for intramedullary spinal cord tumours, selected cases of intradural extramedullary tumours and surgery for syringomyelia. In the present manuscript, we discuss D-wave monitoring and its role as a tool for monitoring the CST during spinal cord surgery. We describe the neurophysiological background and provide some recommendations for recording and stimulation, as well as possible future perspectives. Further, we introduce the concept of anti D-wave and present an illustrative case with successful recordings.
D 波(也称为直接波)是由单次电刺激后快速传导、厚髓鞘皮质脊髓束(CST)纤维的直接激活引起的。在术中神经生理监测中,D 波用于评估接受脊髓髓内肿瘤、选择的硬脊膜外髓外肿瘤和脊髓空洞症手术的患者的长期运动结果。在本手稿中,我们讨论了 D 波监测及其作为监测脊髓手术期间 CST 的工具的作用。我们描述了神经生理学背景,并提供了一些关于记录和刺激的建议,以及可能的未来展望。此外,我们介绍了反 D 波的概念,并展示了一个成功记录的说明性案例。
