Li Xiang, Li Anmin, Qin Xiangdu, Yang Hailong, Cheng Peng
School of Resources, Environment and Materials, Guangxi University, Nanning 530004, China.
State Key Laboratory of Featured Metal Materials and Life-Cycle Safety for Composite Structures, Guangxi University, Nanning 530004, China.
Materials (Basel). 2024 Aug 21;17(16):4141. doi: 10.3390/ma17164141.

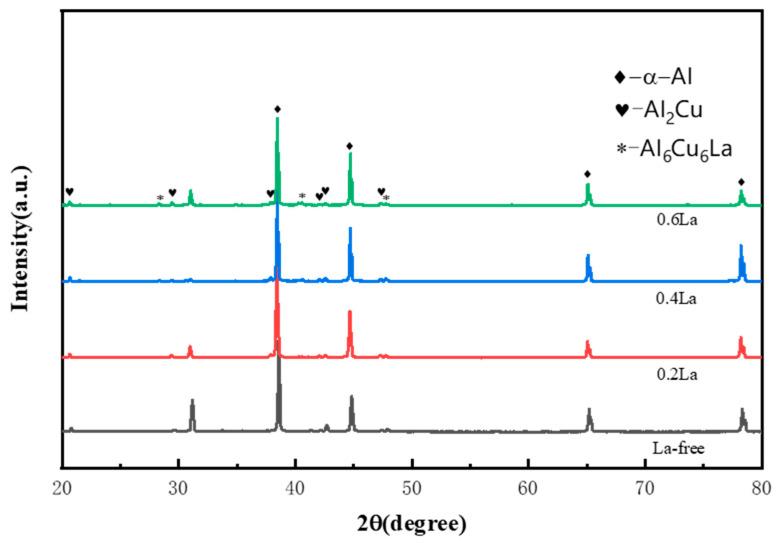

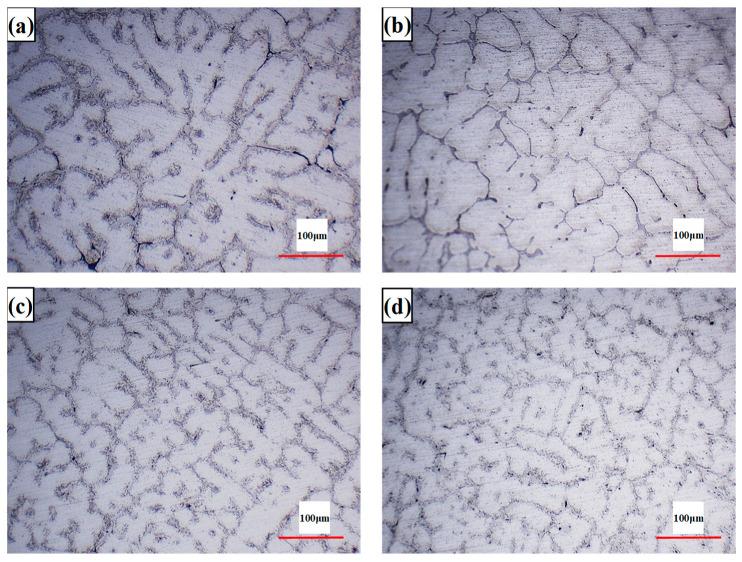

The effects of the rare earth element La on the microstructure and mechanical properties of cast Al-5.4Cu-0.7Mg-0.6Ag alloys have been investigated through metallographic observation, scanning electron microscopy analysis, transmission electron microscopy, X-ray diffraction, and tensile testing. The present form and action mechanism of La have been analyzed. The findings indicate that the inclusion of trace amounts of La markedly diminishes the grain size in the Al-Cu-Mg-Ag alloy. Furthermore, as the La content increases, the alloy's strength is significantly improved. When the La concentration reaches 0.4 wt.%, the mechanical properties of the alloy, both at room temperature and at 350 °C, surpass those of the alloy lacking rare earth elements. When the added rare earth La content exceeds 0.2 wt.%, the emergence of the AlCuLa phase causes the alloy structure to exhibit a skeletal morphology, altering the morphology and distribution of excess second phases along grain boundaries, thereby impacting the alloy's overall performance. Incorporating La leads to a reduction in the size of the strengthening precipitate phase Ω while also enhancing its precipitation density, but an excess of La leads to the emergence of AlCuLa, depleting the available Cu and suppressing the precipitation of the Ω phase, ultimately affecting the mechanical properties of the alloy.
通过金相观察、扫描电子显微镜分析、透射电子显微镜、X射线衍射和拉伸试验,研究了稀土元素镧对铸造Al-5.4Cu-0.7Mg-0.6Ag合金微观结构和力学性能的影响。分析了镧的存在形式及作用机制。研究结果表明,微量镧的加入显著减小了Al-Cu-Mg-Ag合金的晶粒尺寸。此外,随着镧含量的增加,合金强度显著提高。当镧浓度达到0.4 wt.%时,合金在室温及350℃下的力学性能均超过不含稀土元素的合金。当添加的稀土镧含量超过0.2 wt.%时,AlCuLa相的出现使合金组织呈现骨骼状形态,改变了沿晶界析出的过剩第二相的形态和分布,从而影响合金的整体性能。加入镧会导致强化析出相Ω尺寸减小,同时提高其析出密度,但过量的镧会导致AlCuLa出现,消耗了可用的铜并抑制了Ω相的析出,最终影响合金的力学性能。
