Microhardness and energy dispersive X-ray evaluation of dentinal walls following chemical and electrochemical dissolution of fractured nickel-titanium file: An in vitro study.

PURPOSE

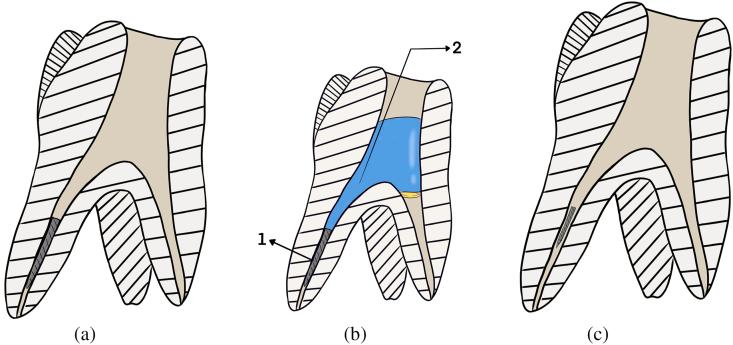

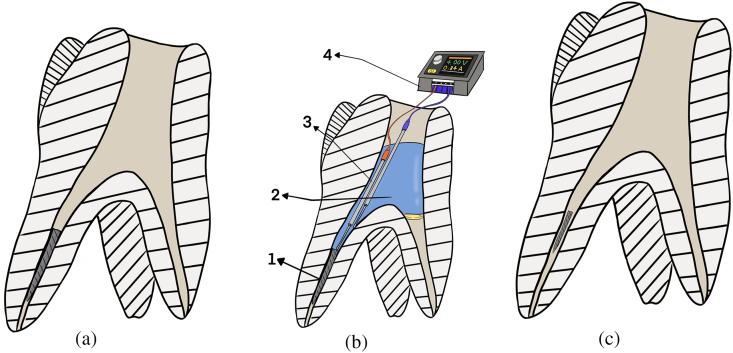

Chemical dissolution of nickel-titanium (NiTi) files involves the application of a fluoride solution in direct contact with a damaged instrument, whereas electrochemical dissolution involves the application of an electrical current to the electrolyte, which accelerates fragment dissolution. This study aimed to determine the hardness and concentration of calcium and phosphorus (Ca and P) ions in dentinal walls following chemical and electrochemical dissolution of fractured ProTaper F2 files with a novel chemical solution. : Thirty human maxillary first molar palatal roots with fractured ProTaper F2 files in the middle third (length, 2.5 mm were divided into three groups according to the treatment techniques used with a novel solution (NaF 12 g/L + NaCl 60 g/L + MgCl 60 g/L + CaCl 60 g/L) at pH 5: Group 1: distilled water (control group), Group 2: electrochemical dissolution, and Group 3: chemical dissolution using the novel solution. The novel solution was placed for 10 min using an electrochemical technique, and for 30 min in contact with the separated instrument in the chemical group. The Vickers microhardness test was performed in three areas: at 3, 6, and 9 mm from the apex, and an energy-dispersive X-ray test for both Ca and P ions was performed. The analysis of variance (ANOVA) and Tukey's tests were used for statistical analysis.

RESULTS

According to the one-way ANOVA analysis, no difference was observed between the tested approaches (P > 0.05) in the three areas evaluated (3, 6, and 9 mm), with no difference in the Ca/P ratio between the tested groups.

CONCLUSION

Compared to the control group, the use of chemical and electrochemical dissolution methods with the novel solution did not affect dentin hardness or dentinal structure in terms of the Ca/P ratio, thereby indicating promising results while saving time.
