Aerodynamic efficiency assessment of a cross-axis wind turbine integrated with an offshore deflector.

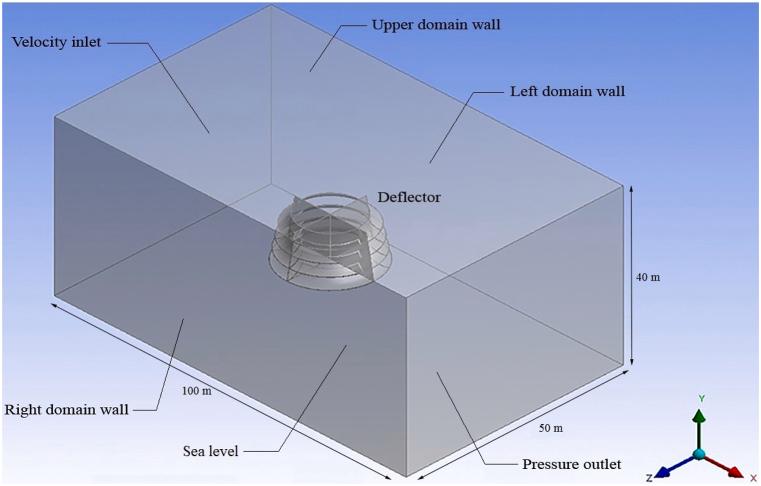

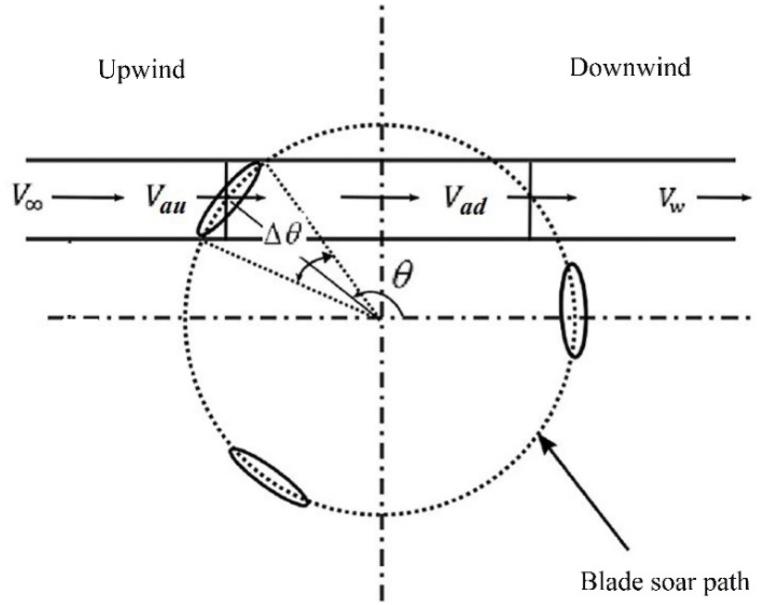

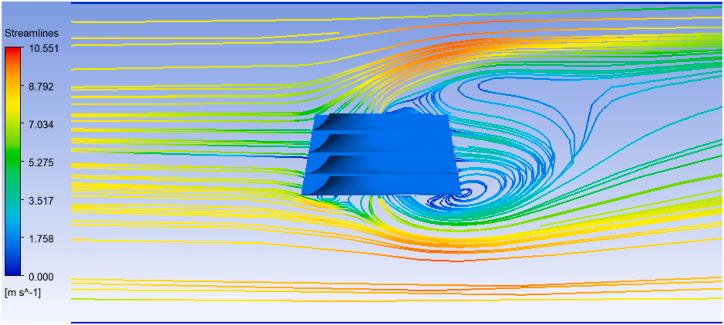

The present work examines the performance of an offshore cross-axis wind turbine (CAWT) with a flow deflector by integrating numerical and analytical methods. The deflector's geometry redirects flow in all directions, causing it to exit vertically and collide with the wind turbine's horizontal blades. In contrast, the blades of a vertical axis wind turbine (VAWT) harness the power of horizontal wind flow. The total power absorbed by the horizontal and vertical turbine blades represents the power of CAWT. In this study, the speed of the outflow from the deflector was initially determined through numerical simulation. The numerical simulation output was then utilized as an input for analytical Double Multiple Stream Tube (DMST) and Blade Element Momentum (BEM) methods to evaluate the vertical and horizontal turbine blades, respectively. This approach reduces the overall simulation time and establishes an offline coupling between analytical and numerical approaches. The findings of this research have unveiled a promising future for offshore wind energy generation. Through the implementation of a modeled deflector on a Cross-Axis Wind Turbine (CAWT), the power output reached a remarkable 19 KW with a power coefficient of 0.35 at an 8.4 m/s wind speed. The results indicate that the CAWT with the deflector produced a power output 35 % higher and was 45 % more efficient than a single Vertical-Axis Wind Turbine (VAWT). These outcomes illustrate the potential for greater energy production and efficiency in offshore wind farms.
