基于聚丙烯腈合成聚苯胺包覆复合阴离子交换膜用于酒石酸电渗析分离

Synthesis of polyaniline-coated composite anion exchange membranes based on polyacrylonitrile for the separation of tartaric acid electrodialysis.

作者信息

Ghaffar Abdul, Zulfiqar Sonia, Khan Muzzamil, Latif Muhammad, Cochran Eric W

机构信息

Department of Chemistry, Government Graduate College Ravi Road Shahdara Lahore-54950 Pakistan.

DIC Pakistan Limited Shahrah-e-Roomi, P. O Amer Sidhu Lahore-54760 Pakistan

出版信息

RSC Adv. 2024 Sep 18;14(40):29648-29657. doi: 10.1039/d4ra05508j. eCollection 2024 Sep 12.


DOI:10.1039/d4ra05508j
PMID:39297034
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11409453/
Abstract

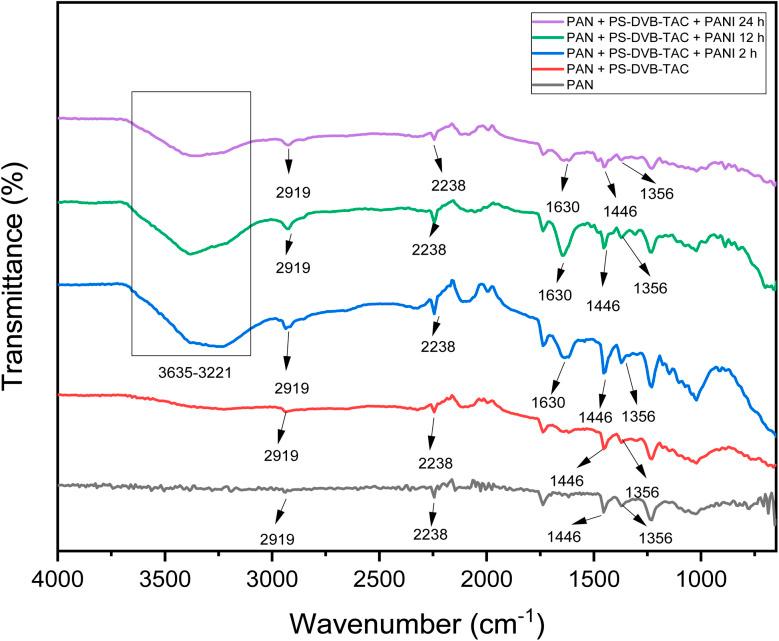

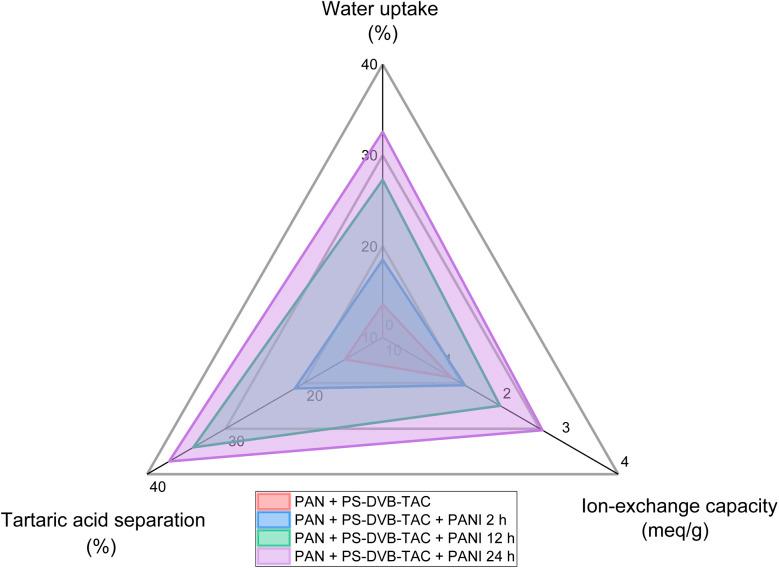

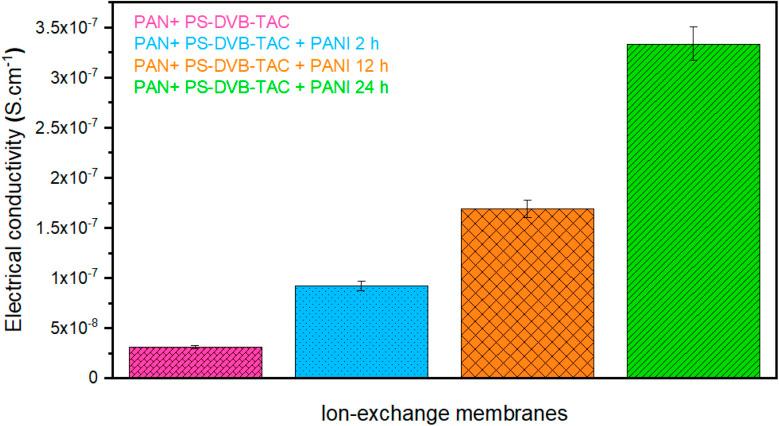

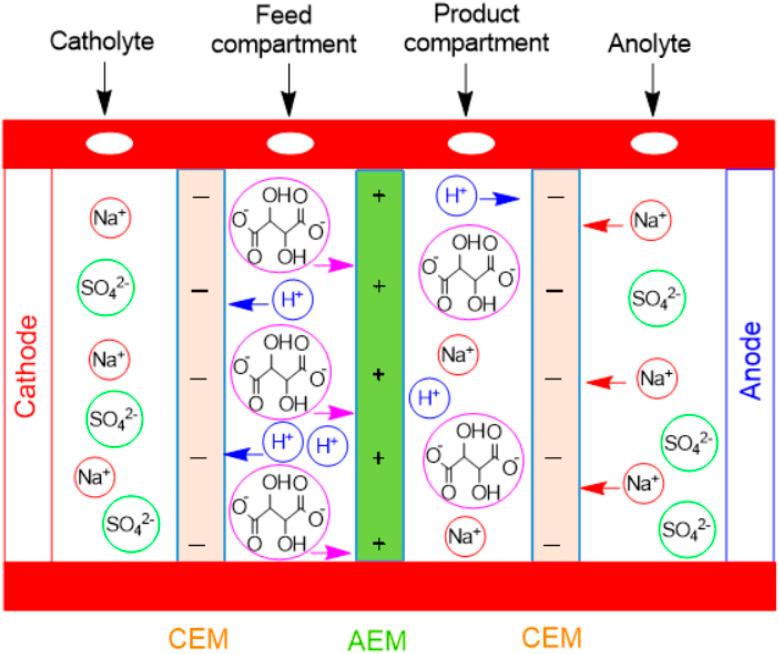

The increasing need to tackle major societal challenges such as environmental sustainability and resource scarcity has heightened global interest in green and efficient separation technologies. The separation of organic acids, particularly tartaric acid, holds significant industrial importance in the food and pharmaceutical sectors. Purifying tartaric acid is crucial due to its roles as a chiral catalyst, antioxidant, and stabilizer, which are vital for ensuring product quality and efficiency. In this study, we synthesized heterogeneous anion exchange membranes by casting a solution of polyacrylonitrile (PAN) homogeneously dispersed with micronized anion exchange resin [polystyrene-divinylbenzene-trimethyl ammonium chloride (PS-DVB-TAC)]. These membranes were further coated with polyaniline (PANI) through polymerization at different time intervals such as 2, 12, and 24 h. Cation exchange membranes were also prepared by solution casting of PAN dispersed with micronized cation exchange resin, sulfonated poly-styrene--divinylbenzene, and SPS-DVB. These synthesized anion exchange membranes with and without a PANI coating were examined for their separation performance of tartaric acid, along with the cation exchange membranes in a four-compartment electrodialyser at a constant voltage. The newly fabricated membranes were characterized by different techniques, including attenuated total reflectance-Fourier transform infrared spectroscopy for functional group analysis, scanning electron microscopy for their surface morphology, and the four-probe method for electrical conductivity. In addition, ion exchange capacity and water uptake have been measured. The electrodialysis experiments showed that 14.82 wt% of tartrate ions moved into the product compartment through the uncoated anion exchange membrane within 30 min at a voltage of 30 V. Under the same conditions, membranes coated with PANI at 2, 12, and 24 h raised the separation efficiency to 21.19%, 34.13%, and 37.21%, respectively. Findings indicate that membranes coated with PANI for extended periods demonstrate superior separation efficiency for tartaric acid. Consequently, this energy-efficient method shows significant potential for application in the food and pharmaceutical industries for separating tartaric acid and other organic and amino acids. This research can advance practical and sustainable separation technologies, addressing critical societal issues like resource efficiency and environmental sustainability.

摘要

应对环境可持续性和资源稀缺等重大社会挑战的需求日益增加,这提高了全球对绿色高效分离技术的兴趣。有机酸的分离,特别是酒石酸的分离,在食品和制药行业具有重要的工业意义。由于酒石酸作为手性催化剂、抗氧化剂和稳定剂的作用,对确保产品质量和效率至关重要,因此纯化酒石酸至关重要。在本研究中,我们通过浇铸均匀分散有微粉化阴离子交换树脂[聚苯乙烯-二乙烯基苯-三甲基氯化铵(PS-DVB-TAC)]的聚丙烯腈(PAN)溶液来合成非均相阴离子交换膜。这些膜通过在2、12和24小时等不同时间间隔进行聚合,进一步用聚苯胺(PANI)涂覆。阳离子交换膜也通过浇铸分散有微粉化阳离子交换树脂、磺化聚苯乙烯-二乙烯基苯和SPS-DVB的PAN来制备。在恒压下,在四室电渗析器中,对这些合成的有无PANI涂层的阴离子交换膜以及阳离子交换膜进行了酒石酸分离性能测试。通过不同技术对新制备的膜进行了表征,包括用于官能团分析的衰减全反射-傅里叶变换红外光谱、用于表面形态的扫描电子显微镜以及用于电导率的四探针法。此外,还测量了离子交换容量和吸水率。电渗析实验表明,在30V电压下,30分钟内有14.82wt%的酒石酸根离子通过未涂覆的阴离子交换膜进入产品室。在相同条件下,分别在2、12和24小时用PANI涂覆的膜将分离效率提高到21.19%、34.13%和37.21%。研究结果表明,长时间用PANI涂覆的膜对酒石酸具有优异的分离效率。因此,这种节能方法在食品和制药行业分离酒石酸及其他有机和氨基酸方面具有巨大的应用潜力。这项研究可以推动实用和可持续的分离技术发展,解决资源效率和环境可持续性等关键社会问题。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/e5230788fac0/d4ra05508j-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/2b83bad6d8ae/d4ra05508j-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/498096e038ef/d4ra05508j-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/5d1e26f72985/d4ra05508j-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/28e57ec97ef2/d4ra05508j-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/f093b2a6a943/d4ra05508j-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/dede8545c594/d4ra05508j-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/e5230788fac0/d4ra05508j-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/2b83bad6d8ae/d4ra05508j-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/498096e038ef/d4ra05508j-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/5d1e26f72985/d4ra05508j-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/28e57ec97ef2/d4ra05508j-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/f093b2a6a943/d4ra05508j-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/dede8545c594/d4ra05508j-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9e29/11409453/e5230788fac0/d4ra05508j-f7.jpg
