Evaluating the Role of Mortar Composition on the Cyclic Behavior of Unreinforced Masonry Shear Walls.

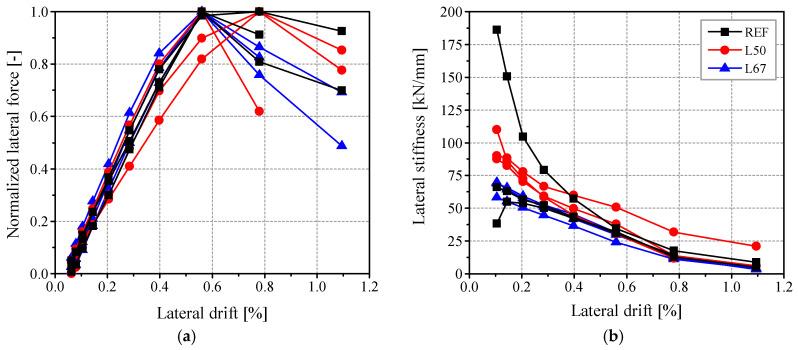

The mechanical behavior of unreinforced masonry (URM) shear walls under in-plane cyclic loading is crucial for assessing their seismic performance. Although masonry structures have been extensively studied, the specific influence of varying lime content in cement-lime mortars on the cyclic behavior of URM walls has not been adequately explored. This study addresses this gap by experimentally evaluating the effects of three mortar mixes with increasing lime content, 1:0:5, 1:1:6, and 1:2:9 (cement:lime:sand, by volume), on the cyclic performance of brick URM walls. Nine single-leaf wall specimens 900 mm × 900 mm were constructed and subjected to combined vertical compression and horizontal cyclic loading. Key parameters such as drift capacity, stiffness degradation, and energy dissipation were measured. The results indicated that the inclusion of lime leads to a moderate improvement in drift capacity and ductility of the walls, with the 1:1:6 mix showing the highest lateral capacity (0.55 MPa), drift at cracking (0.08%), and drift at peak capacity (0.31%). Stiffness degradation and energy dissipation were found to be comparable across all mortar types. These findings suggest that partial substitution of cement with lime can enhance certain aspects of masonry performance. Further research is recommended to optimize mortar compositions for unreinforced masonry applications.
