Detailed analysis of electrogram peak frequency to guide ventricular tachycardia substrate mapping.

AIMS

Differentiating near-field (NF) and far-field (FF) electrograms (EGMs) is crucial in identifying critical arrhythmogenic substrate during ventricular tachycardia (VT) ablation. A novel algorithm annotates NF-fractionated signals enabling EGM peak frequency (PF) determination using wavelet transformation. This study evaluated the algorithms' effectiveness in identifying critical components of the VT circuit during substrate mapping.

METHODS AND RESULTS

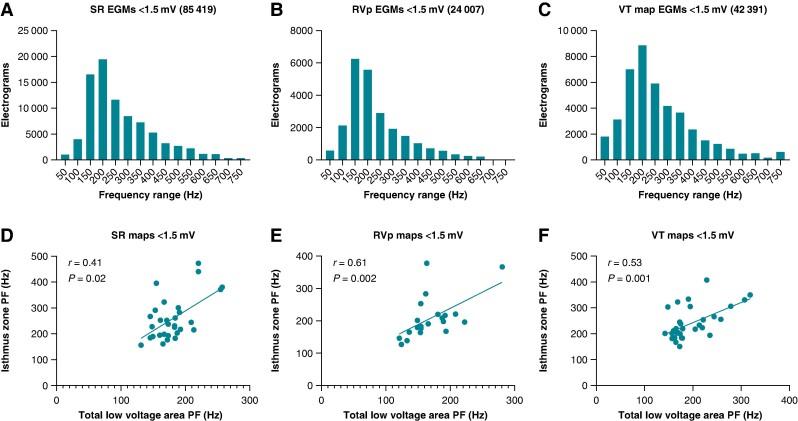

A multicentre, international cohort undergoing VT ablation was investigated. VT activation maps were used to demarcate the isthmus zone (IZ). Offline analysis was performed to evaluate the diagnostic performance of low-voltage area (LVA) PF substrate mapping. A total of 30 patients encompassing 198 935 EGMs were included. The IZ PF was significantly higher in sinus rhythm (SR) compared to right ventricular paced (RVp) substrate maps (234 Hz (195-294) vs. 197 Hz (166-220); P = 0.010). Compared to LVA PF, the IZ PF was significantly higher in both SR and RVp substrate maps (area under curve, AUC: 0.74 and 0.70, respectively). The LVA PF threshold of ≥200 Hz was optimal in SR maps (sensitivity 69%; specificity 64%) and RVp maps (sensitivity 60%; specificity 64%) in identifying the VT isthmus. In amiodarone-treated patients (n = 20), the SR substrate map IZ PF was significantly lower (222 Hz (186-257) vs. 303 Hz (244-375), P = 0.009) compared to amiodarone-naïve patients (n = 10). The ≥200 Hz LVA PF threshold resulted in an 80% freedom from VT with a trend towards reduced ablation lesions and radiofrequency times.

CONCLUSION

LVA PF substrate mapping identifies critical components of the VT circuit with an optimal threshold of ≥200 Hz. Isthmus PF is influenced by chronic amiodarone therapy with lower values observed during RV pacing.
