Ammonothermal Synthesis of Luminescent Imidonitridophosphate BaPN(NH):Eu.

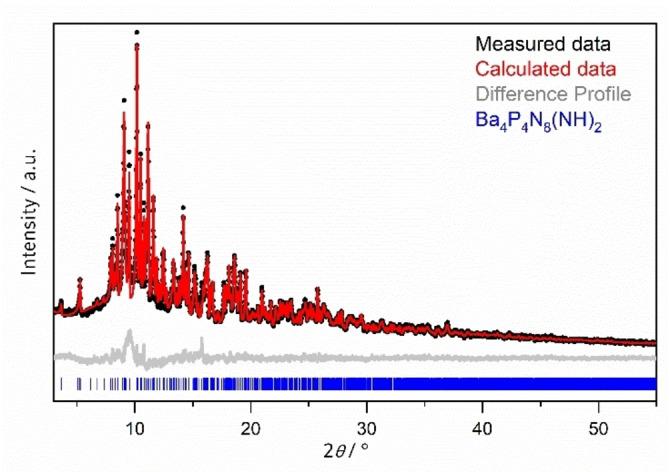

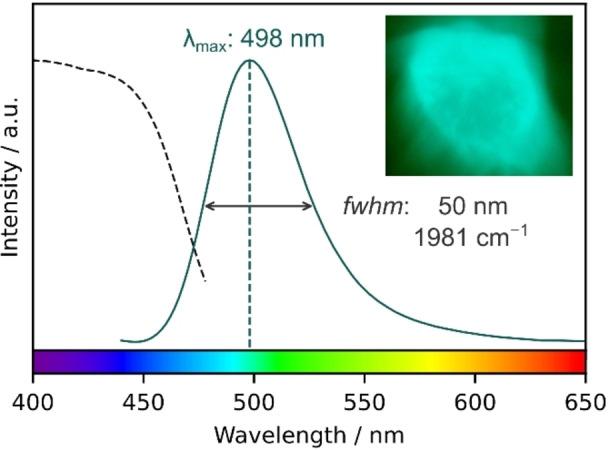

The structural variability of a compound class is an important criterion for the research into phosphor host lattices for phosphor-converted light-emitting diodes (pc-LEDs). Especially, nitridophosphates and the related class of imidonitridophosphates are promising candidates. Recently, the ammonothermal approach has opened a systematic access to this substance class with larger sample quantities. We present the successful ammonothermal synthesis of the imidonitridophosphate BaPN(NH):Eu. Its crystal structure is solved by X-ray diffraction and it crystallizes in space group Cc (no. 9) with lattice parameters a=12.5250(3), b=12.5566(4), c=7.3882(2) Å and β=102.9793(10)°. For the first time, adamantane-type (imido)nitridophosphate anions [PN(NH)] are observed next to metal ions other than alkali metals in a compound. The presence of imide groups in the structure and the identification of preferred positions for the hydrogen atoms are performed using a combination of quantum chemical calculations, Fourier-transform infrared, and solid-state NMR spectroscopy. Eu doped samples exhibit cyan emission (λ=498 nm, fwhm=50 nm/1981 cm) when excited with ultraviolet light with an impressive internal quantum efficiency (IQE) of 41 %, which represents the first benchmark for imidonitridophosphates and is promising for potential industrial application of this compound class.
