一项用于研究不同重建设置下PET图像放射组学特征稳定性的异质性体模研究。

A heterogeneous phantom study for investigating the stability of PET images radiomic features with varying reconstruction settings.

作者信息

Alsyed Emad, Smith Rhodri, Bartley Lee, Marshall Christopher, Spezi Emiliano

机构信息

School of Engineering, Cardiff University, Cardiff, United Kingdom.

Department of Nuclear Engineering, Faculty of Engineering, King Abdulaziz University, Jeddah, Saudi Arabia.

出版信息

Front Nucl Med. 2023 Feb 14;3:1078536. doi: 10.3389/fnume.2023.1078536. eCollection 2023.

Abstract

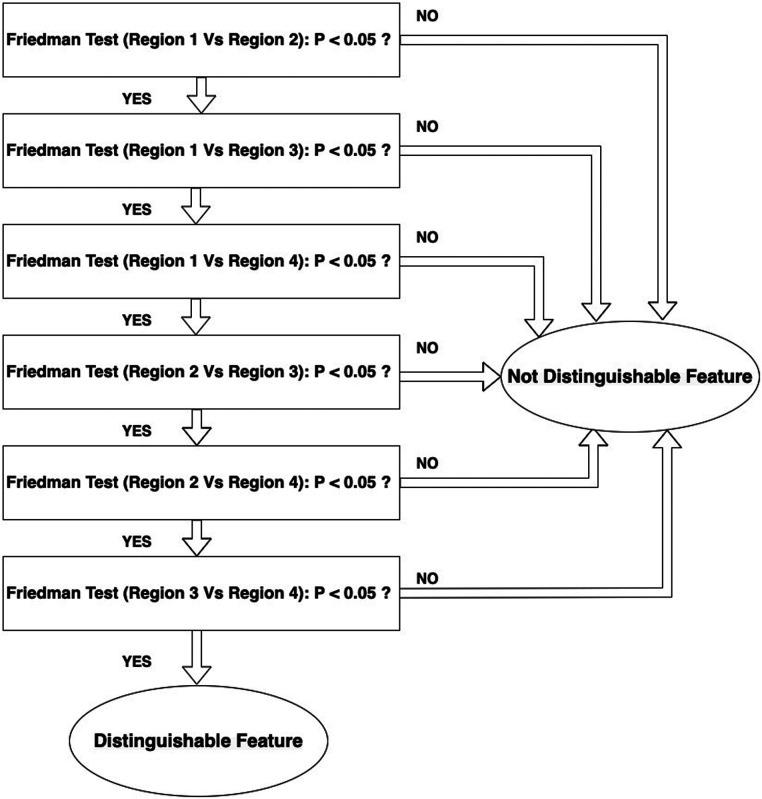

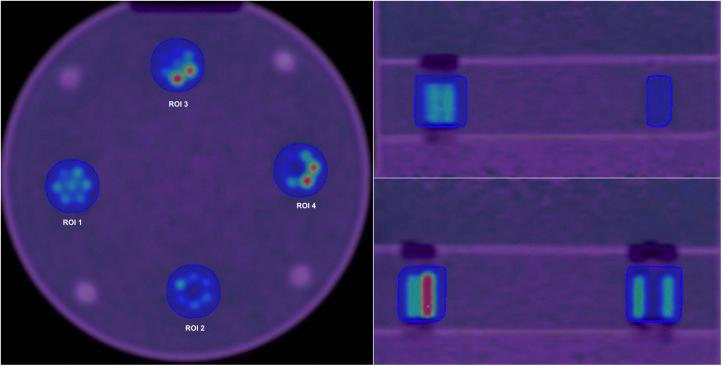

The purpose of this work was to assess the capability of radiomic features in distinguishing PET image regions with different uptake patterns. Furthermore, we assessed the stability of PET radiomic features with varying image reconstruction settings. An in-house phantom was designed and constructed, consisting of homogenous and heterogenous artificial phantom inserts. Four artificially constructed inserts were placed into a water filled phantom and filled with varying levels of radioactivity to simulate homogeneous and heterogeneous uptake patterns. The phantom was imaged for 80 min. PET images were reconstructed whilst varying reconstruction parameters. The parameters adjusted included, number of ordered subsets, number of iterations, use of time-of-flight and filter cut off. Regions of interest (ROI) were established by segmentation of the phantom inserts from the reconstructed images. In total seventy eight 3D radiomic features for each ROI with unique reconstructed parameters were extracted. The Friedman test was used to determine the statistical power of each radiomic feature in differentiating phantom inserts with different hetero/homogeneous configurations. The Coefficient of Variation (COV) of each feature, with respect to the reconstruction setting was used to determine feature stability. Forty three out of seventy eight radiomic features were found to be stable (COV 5%) against all reconstruction settings. To provide any utility, stable features are required to differentiate between regions with different hetro/homogeneity. Of the forty three stable features, fifteen (35%) features showed a statistically significant difference between the artificially constructed inserts. Such features included GLCM (Difference average, Difference entropy, Dissimilarity and Inverse difference), GLRL (Long run emphasis, Grey level non uniformity and Run percentage) and NGTDM (Complexity and Strength). The finding of this work suggests that radiomic features are capable of distinguishing between radioactive distribution patterns that demonstrate different levels of heterogeneity. Therefore, radiomic features could serve as an adjuvant diagnostic tool along with traditional imaging. However, the choice of the radiomic features needs to account for variability introduced when different reconstruction settings are used. Standardization of PET image reconstruction settings across sites performing radiomic analysis in multi-centre trials should be considered.

摘要

这项工作的目的是评估放射组学特征区分具有不同摄取模式的PET图像区域的能力。此外,我们评估了不同图像重建设置下PET放射组学特征的稳定性。设计并构建了一个内部体模,它由均匀和异质的人工体模插入物组成。将四个人工构建的插入物放入充满水的体模中,并填充不同水平的放射性物质,以模拟均匀和异质的摄取模式。对该体模进行了80分钟的成像。在改变重建参数的同时重建PET图像。调整的参数包括有序子集数量、迭代次数、飞行时间的使用和滤波器截止。通过从重建图像中分割体模插入物来确定感兴趣区域(ROI)。对于每个具有独特重建参数的ROI,总共提取了78个3D放射组学特征。Friedman检验用于确定每个放射组学特征区分具有不同异质/同质配置的体模插入物的统计能力。每个特征相对于重建设置的变异系数(COV)用于确定特征稳定性。发现78个放射组学特征中有43个在所有重建设置下都是稳定的(COV<5%)。为了具有实用性,需要稳定的特征来区分具有不同异质/同质的区域。在43个稳定特征中,15个(35%)特征在人工构建的插入物之间显示出统计学上的显著差异。这些特征包括灰度共生矩阵(差异平均值、差异熵、不相似性和逆差异)、灰度游程长度矩阵(长游程强调、灰度非均匀性和游程百分比)和邻域灰度差矩阵(复杂性和强度)。这项工作的发现表明,放射组学特征能够区分显示不同异质水平的放射性分布模式。因此,放射组学特征可以作为传统成像的辅助诊断工具。然而,放射组学特征的选择需要考虑使用不同重建设置时引入的变异性。在多中心试验中进行放射组学分析的不同站点之间,应考虑PET图像重建设置的标准化。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f603/11459985/3c614e1e1956/fnume-03-1078536-g001.jpg
