Wang Qilin, Wang Wei, Fan Yizhuo, Fang Jian, Chen Yu, Ruan Shengping
College of Electronic Science & Engineering, Jilin University, Changchun 130012, China.
Institute of Semiconductors, Chinese Academy of Sciences, Beijing 100083, China.
Sensors (Basel). 2024 Oct 29;24(21):6931. doi: 10.3390/s24216931.

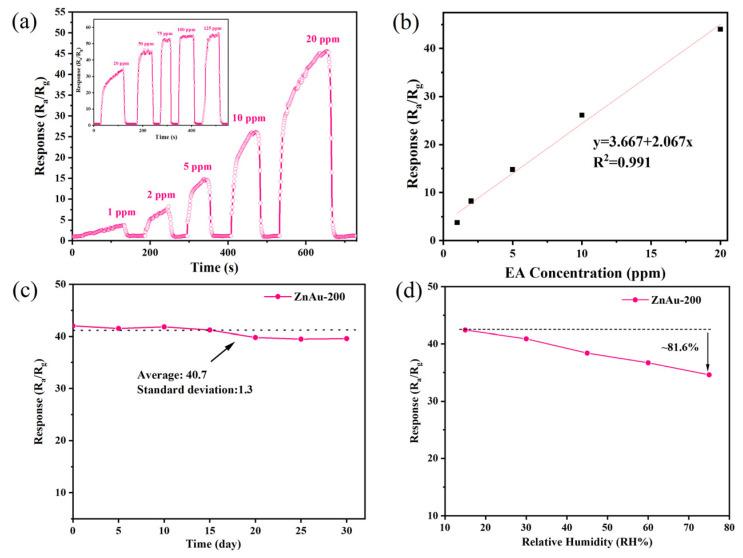

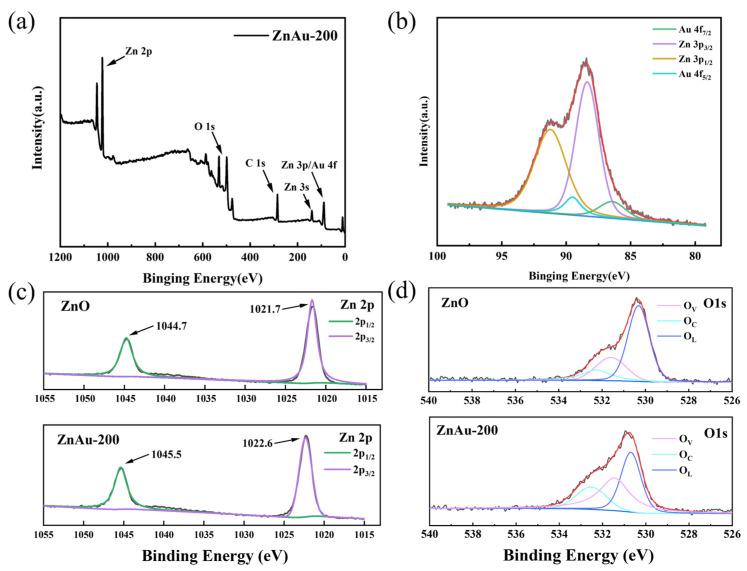

Ethyl acetate is a critical medical indicator for detecting certain types of cancer. However, at present, available sensitive materials often exhibit drawbacks, such as high operating temperatures and poor responses to low concentrations of ethyl acetate. In this study, a ZnO nanorod sensing material was prepared using high-temperature annealing and a hydrothermally synthesized metal-organic framework (MOF) as a template. Au nanodots (AuNDs) were subsequently modified on the ZnO nanorods using an in situ ion reduction, which provided a better dispersion of Au nanodots compared with that obtained using the common reductant method. A variety of characterization methods indicate that the highly dispersed AuNDs, which possess a high catalytic activity, were loaded onto the surface as active centers, leading to a significant augmentation in the adsorption of oxygen on the surface compared with the original ZnO material. Consequently, the AuND@ZnO material exhibited heightened responsiveness to ethyl acetate at a lower operating temperature. The Au@ZnO-based sensor has a response rate (R/R) of 41.8 to 20 ppm ethyl acetate gas at 140 °C, marking a 17.4-fold increase compared with that of the original material. Due to its low power consumption and high responsiveness, AuND@ZnO is a promising candidate for the detection of ethyl acetate gas in medical applications.
乙酸乙酯是检测某些类型癌症的关键医学指标。然而,目前现有的敏感材料往往存在缺点,例如工作温度高以及对低浓度乙酸乙酯的响应较差。在本研究中,使用高温退火和水热合成的金属有机框架(MOF)作为模板制备了一种ZnO纳米棒传感材料。随后通过原位离子还原在ZnO纳米棒上修饰了金纳米点(AuNDs),与使用普通还原剂方法相比,这使得金纳米点具有更好的分散性。多种表征方法表明,具有高催化活性的高度分散的AuNDs作为活性中心负载在表面,与原始ZnO材料相比,导致表面氧吸附显著增加。因此,AuND@ZnO材料在较低的工作温度下对乙酸乙酯表现出更高的响应性。基于Au@ZnO的传感器在140°C下对20 ppm乙酸乙酯气体的响应率(R/R)为41.8,与原始材料相比提高了17.4倍。由于其低功耗和高响应性,AuND@ZnO是医学应用中检测乙酸乙酯气体的有前途的候选材料。
