用于无标记生物传感的高品质因数全介质超腔

High Quality-Factor All-Dielectric Metacavity for Label-Free Biosensing.

作者信息

Zheng Yuqiao, Sun Jiacheng, Ma Yaqing, Zhang Hongyong, Cui Zhen, Paschos Giannis G, Song Xixi, Tao Ying, Savvidis Pavlos, Kong Wei, Wen Liaoyong, Bian Sumin, Sawan Mohamad

机构信息

Zhejiang University, Hangzhou, Zhejiang, 310058, China.

CenBRAIN Neurotech Center of Excellence, School of Engineering, Westlake University, Hangzhou, Zhejiang, 310030, China.

出版信息

Adv Sci (Weinh). 2025 Jan;12(4):e2410125. doi: 10.1002/advs.202410125. Epub 2024 Nov 18.

Abstract

High sensitivity and high quality-factor are crucial for achieving outstanding sensing performance in photonic biosensors. However, strong optical field confinement and high light-biomolecule interactions on photonic surfaces are usually contradictory and challenging to satisfy simultaneously. Here, a distinctive configuration for addressing this issue is reported: embedding a nanophotonic metasurface inside a micro vertical cavity as a meta-channel (metacavity) biosensor. The analyte solution serves as the cavity medium, thereby maximizing the light-analyte interaction. Simulation validation is conducted to optimize the metacavity with high structural robustness and remarkable optical and sensing properties. Large-scale low-cost metacavity biosensors are realized by combining anodic aluminum oxide template technique and wafer bonding. Experimentally, the metacavity biosensor demonstrates a notable quality-factor (maximum 4140) and high bulk refractometric sensitivity (450 nm RIU), resulting in an unprecedented figure-of-merit (1670 RIU). Moreover, the metacavity biosensor achieves high surface sensitivity, together with a detection-limit of 119 viral copies mL for label-free severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) pseudovirus sensing, revealing remarkable performance in both bulk and surface sensing.

摘要

高灵敏度和高品质因数对于在光子生物传感器中实现卓越的传感性能至关重要。然而,光子表面上强的光场限制和高光与生物分子的相互作用通常相互矛盾,难以同时满足。在此,报道了一种用于解决该问题的独特结构:将纳米光子超表面嵌入微垂直腔中作为元通道(元腔)生物传感器。分析物溶液用作腔介质,从而使光与分析物的相互作用最大化。进行了模拟验证,以优化具有高结构稳健性以及卓越光学和传感特性的元腔。通过结合阳极氧化铝模板技术和晶圆键合实现了大规模低成本的元腔生物传感器。在实验中,元腔生物传感器展示出显著的品质因数(最大为4140)和高的体折射灵敏度(450 nm/RIU),从而得到了前所未有的品质因数(1670 RIU)。此外,元腔生物传感器实现了高表面灵敏度,并且在无标记检测严重急性呼吸综合征冠状病毒2(SARS-CoV-2)假病毒时检测限为119个病毒拷贝/毫升,在体传感和表面传感方面均展现出卓越性能。

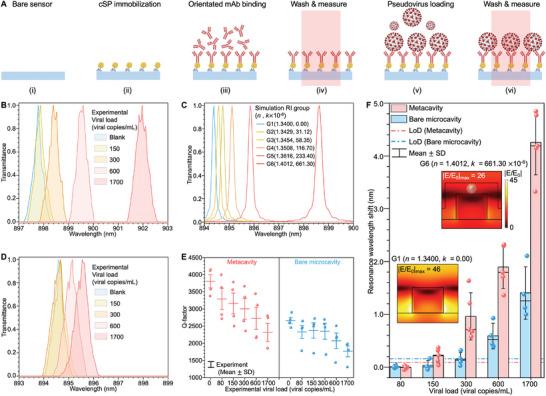

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3dd5/11775555/39c0b8db02e8/ADVS-12-2410125-g005.jpg
