Novel Simple Approach for Production of Elastic Poly(propylene carbonate).

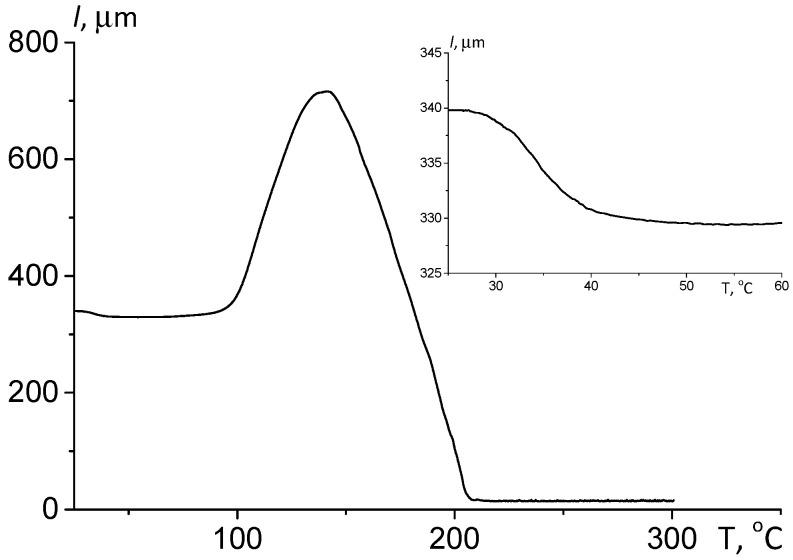

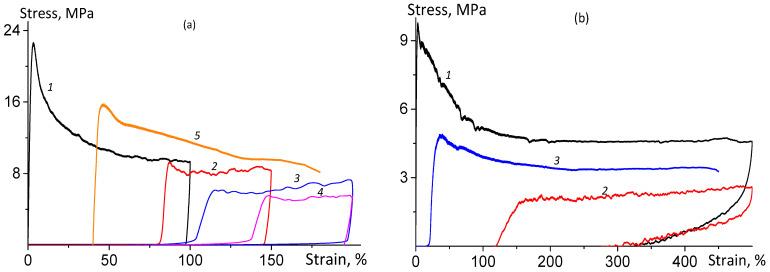

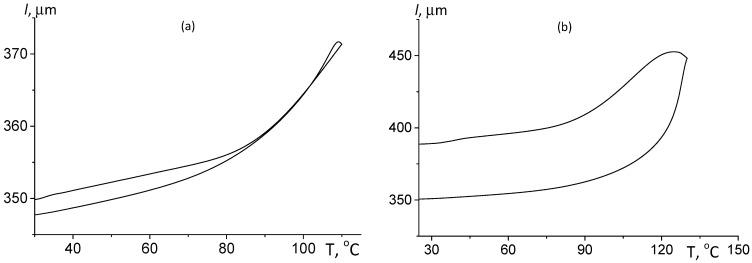

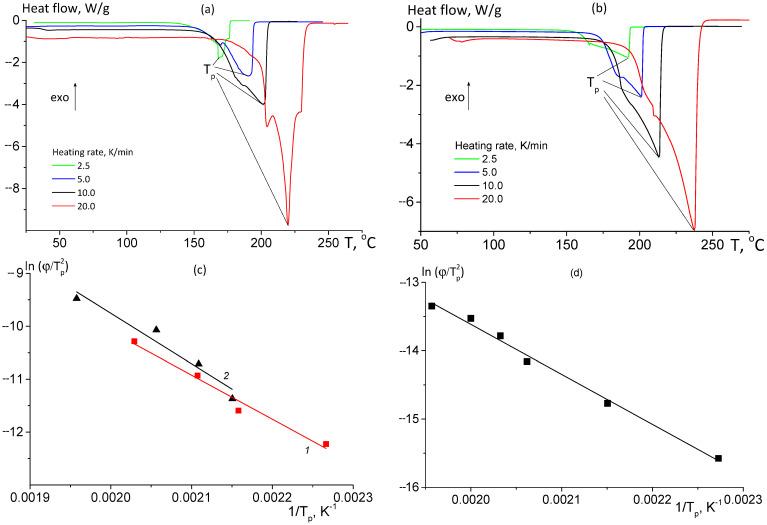

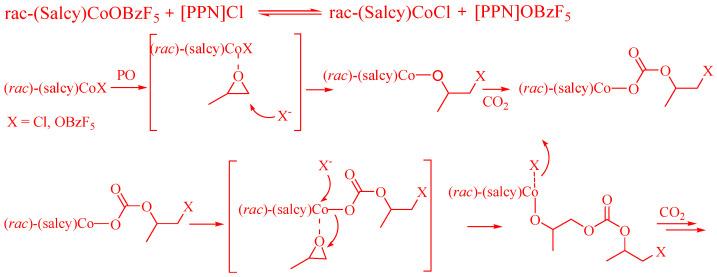

The simple approach of increasing the elastic properties of atactic poly(propylene carbonate) (PPC) with Mn = 71.4 kDa, ĐM = M/M = 1.86, and predominantly carbonate units (>99%) is suggested by selecting the appropriate hot pressing temperature for PPC between 110 and 140 °C. Atactic PPC is synthesized through ring-opening copolymerization of ()-propylene oxide and CO mediated by racemic salen complex of Co(III). Hot pressing PPC results in the release of a small amount of propylene carbonate (PC), sufficient to lower the glass transition temperature from 39.4 to 26.1 °C. Consequently, increasing the pressing temperature from 110 to 140 °C generates materials with a reduced modulus of elasticity (from 1.94 to 0.09 GPa), yield strength (from 38 to 2 MPa) and increased tensile elongation (from 140 to 940%). Thermomechanical analysis has shown a significant expansion in sample volume by hundreds of percent within the 80-130 °C range. PPC also displays large, reversible deformations, which can be utilized by creating shape memory materials.
