Adsorption and Diffusion of CH, N, and Their Mixture in MIL-101(Cr): A Molecular Simulation Study.

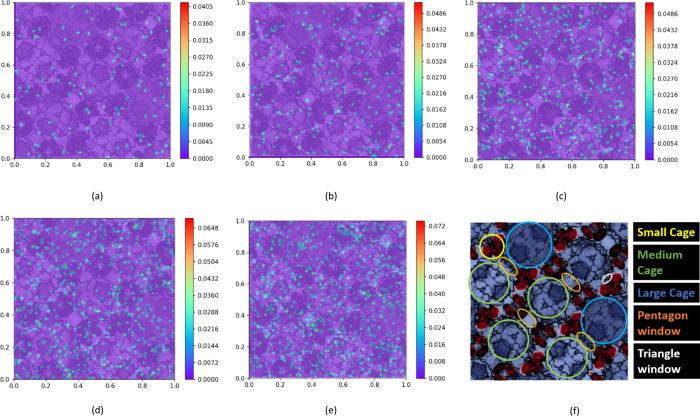

A comprehensive quantitative grasp of methane (CH), nitrogen (N), and their mixture's adsorption and diffusion in MIL-101(Cr) is crucial for wide and important applications, e.g., natural gas upgrading and coal-mine methane capturing. Previous studies often overlook the impact of gas molecular configuration and MIL-101 topology structure on adsorption, lacking quantitative assessment of primary and secondary adsorption sites. Additionally, understanding gas mixture adsorption mechanisms remains a research gap. To bridge this gap and to provide new knowledge, we utilized Monte Carlo and molecular dynamics simulations for computing essential MIL-101 properties, encompassing adsorption isotherms, density profiles, self-diffusion coefficients, radial distribution function (RDF), and CH/N selectivity. Several novel and distinctive findings are revealed by the atomic-level analysis, including (1) the significance of C=C double bond of the benzene ring within MIL-101 for CH and N adsorption, with Cr and O atoms also exerting notable effects. (2) Density distribution analysis reveals CH's preference for large and medium cages, while N is evenly distributed along pentagonal and triangular window edges and small tetrahedral cages. (3) Calculations of self-diffusion and diffusion activation energies suggest N's higher mobility within MIL-101 compared to CH. (4) In the binary mixture, the existence of CH can decrease the diffusion coefficient of N. In summary, this investigation provides valuable microscopic insights into the adsorption and diffusion phenomena occurring in MIL-101, thereby contributing to a comprehensive understanding of its potential for applications, e.g., natural gas upgrading and selective capture of coal-mine methane.
