聚乳酸长丝水分含量对3D打印过程中粉尘排放的影响

The Influence of Polylactic Acid Filament Moisture Content on Dust Emissions in 3D Printing Process.

作者信息

Karwasz Anna, Osiński Filip, Kaczmarek Weronika, Furmaniak Kacper, Rojek Izabela

机构信息

Faculty of Mechanical Engineering, Poznan University of Technology, Piotrowo 3, 60-138 Poznań, Poland.

Faculty of Computer Science, Kazimierz Wielki University, Chodkiewicza 30, 85-064 Bydgoszcz, Poland.

出版信息

Sensors (Basel). 2024 Dec 10;24(24):7890. doi: 10.3390/s24247890.


DOI:10.3390/s24247890
PMID:39771629
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11678983/
Abstract

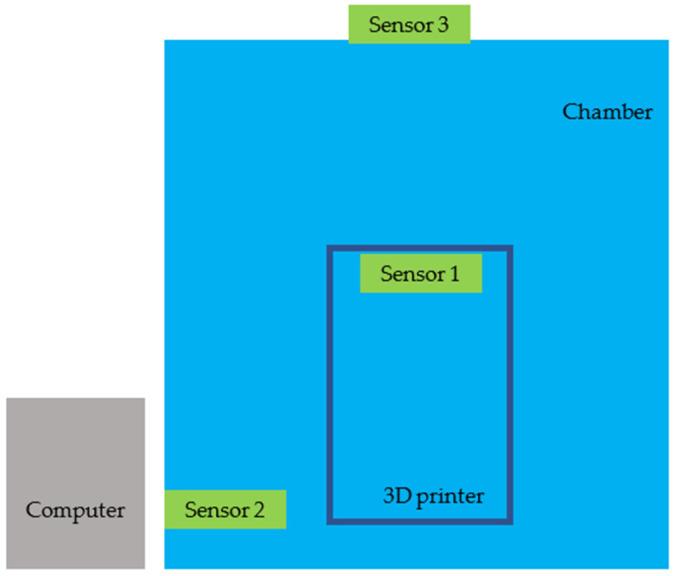

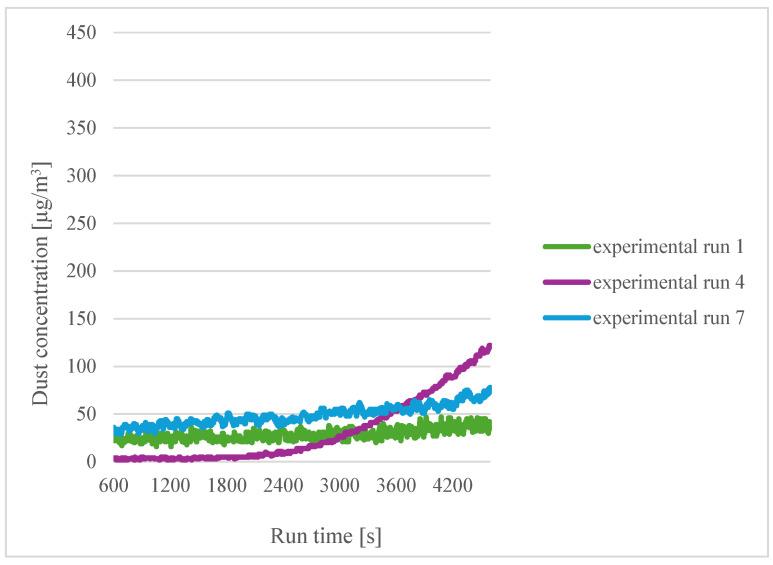

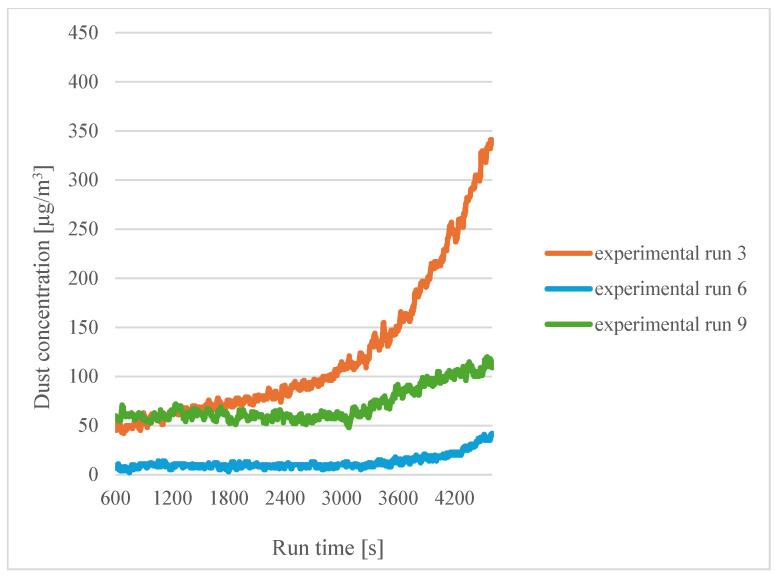

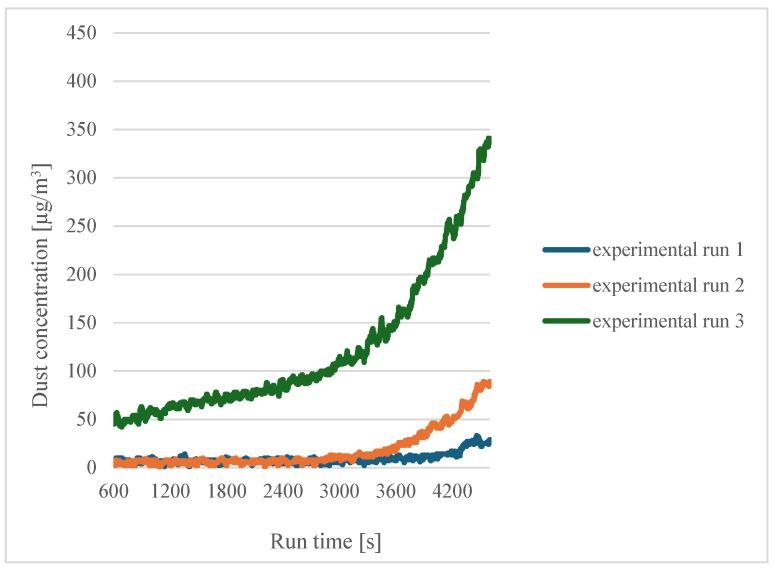

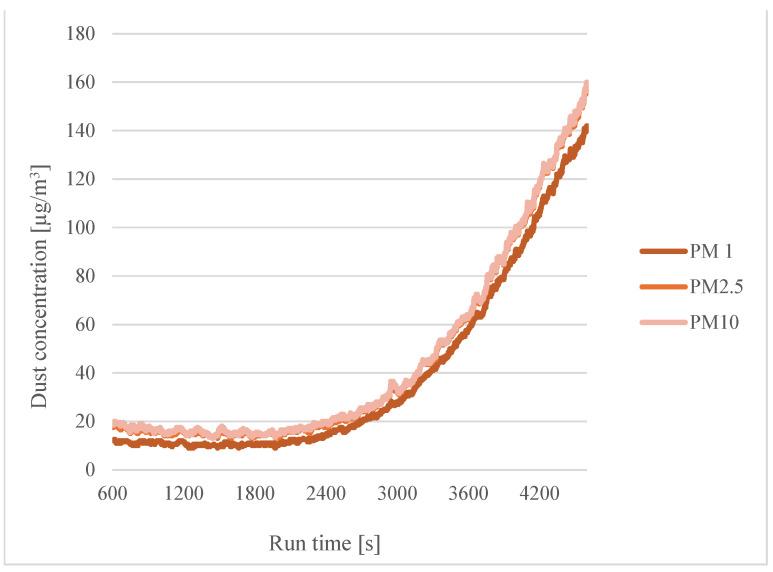

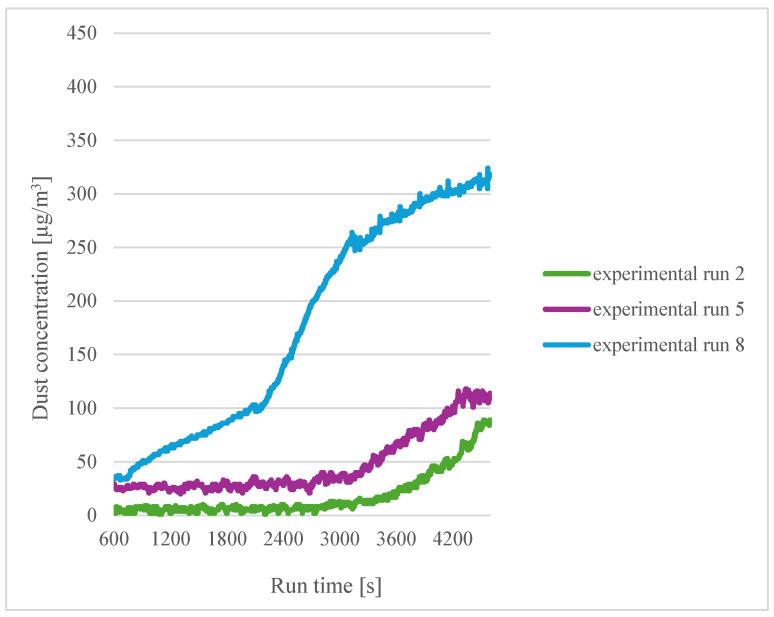

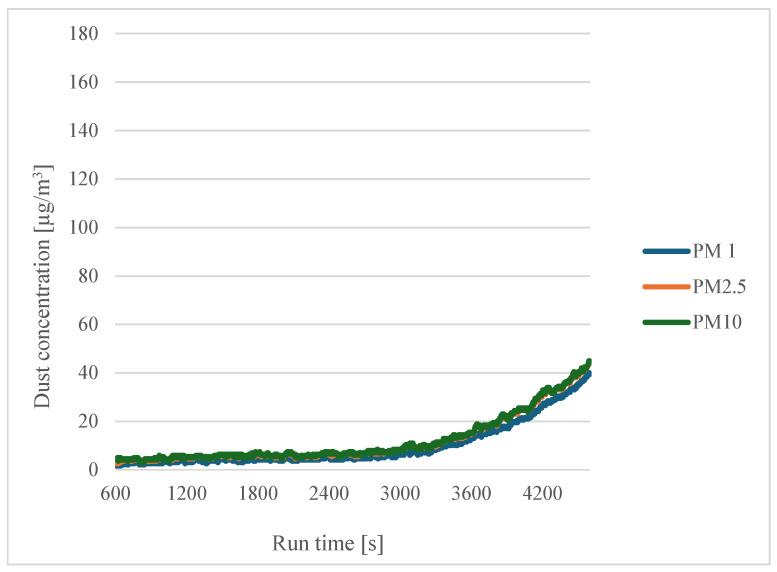

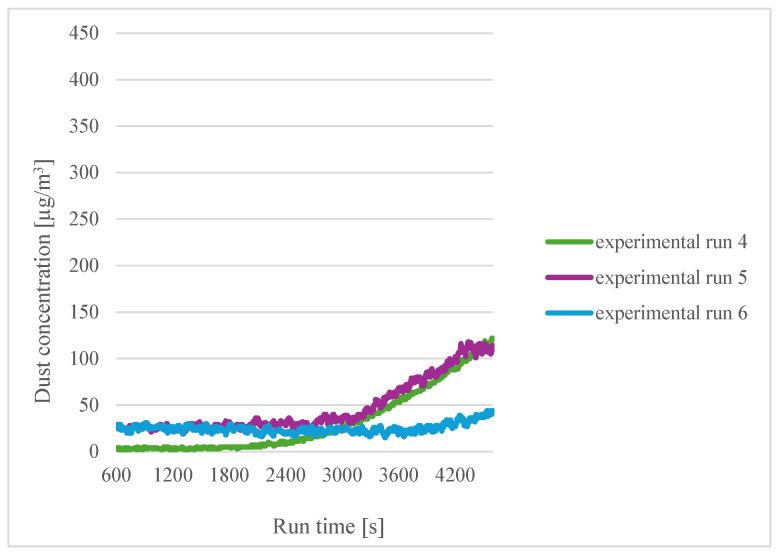

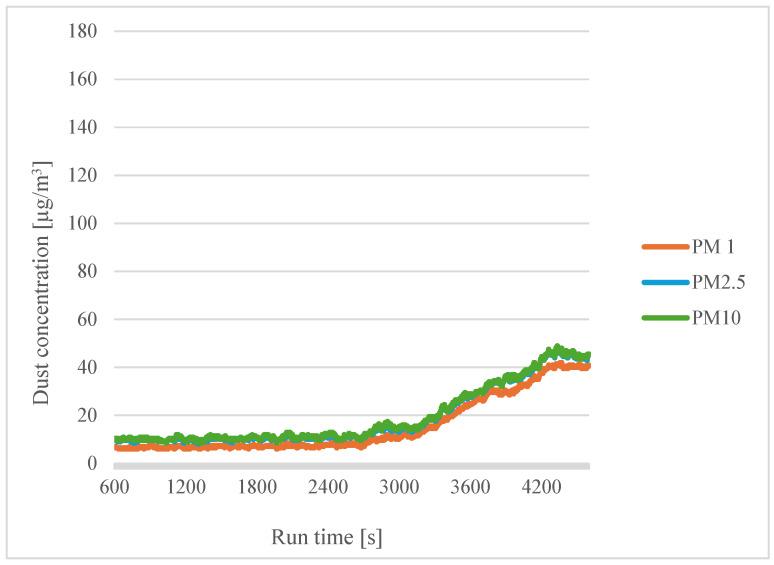

This paper presents the results of a study on the effect of moisture content in polylactic acid (PLA) filaments on dust emissions during incremental manufacturing. The tests were conducted in a customised chamber using a standard 3D printer, and Plantower PMS3003 sensors were used to monitor air quality by measuring PM1, PM2.5 and PM10 concentrations. The filament humidity levels tested were 0.18%, 0.61% and 0.83%. The results show that a higher moisture content in the filament significantly increases dust emissions. For dry filaments (0.18% humidity), the average dust emissions ranged from 159 to 378 µg/m. Slightly humid filaments (0.61%) produced higher emissions, with averages between 59 and 905 µg/m, with one outlier reaching up to 1610 µg/m. For very humid filaments (0.83%), the highest average emissions were observed, ranging from 57 to 325 µg/m, along with greater variability (standard deviation up to 198). These findings highlight that increased filament humidity correlates with elevated dust emissions and greater instability in emission levels, raising potential health concerns during 3D printing.

摘要

本文介绍了一项关于聚乳酸(PLA)长丝含水量对增材制造过程中粉尘排放影响的研究结果。测试在一个定制的腔室内使用标准3D打印机进行,并使用Plantower PMS3003传感器通过测量PM1、PM2.5和PM10浓度来监测空气质量。测试的长丝湿度水平分别为0.18%、0.61%和0.83%。结果表明,长丝中较高的含水量会显著增加粉尘排放。对于干燥的长丝(湿度为0.18%),平均粉尘排放量在159至378微克/立方米之间。湿度稍高的长丝(0.61%)产生的排放量更高,平均值在59至905微克/立方米之间,有一个异常值高达1610微克/立方米。对于湿度非常高的长丝(0.83%),观察到最高的平均排放量,范围在57至325微克/立方米之间,并且变化性更大(标准偏差高达198)。这些发现突出表明,长丝湿度增加与粉尘排放升高以及排放水平的更大不稳定性相关,这在3D打印过程中引发了潜在的健康问题。
