通过整合无人机RGB图像和深度学习增强对高覆盖度魔芋的识别与计数

Enhanced recognition and counting of high-coverage Amorphophallus konjac by integrating UAV RGB imagery and deep learning.

作者信息

Yang Ziyi, Hu Kunrong, Kou Weili, Xu Weiheng, Wang Huan, Lu Ning

机构信息

College of Big Data and Intelligent Engineering, Southwest Forestry University, Kunming, 650223, Yunnan, China.

Key Laboratory of National Forestry and Grassland Administration on Forestry and Ecological Big Data, Kunming, 650223, Yunnan, China.

出版信息

Sci Rep. 2025 Feb 22;15(1):6501. doi: 10.1038/s41598-025-91364-7.

Abstract

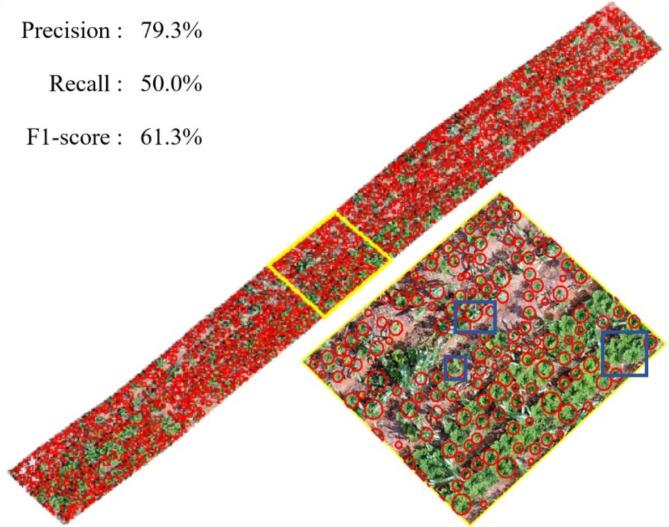

Accurate counting of Amorphophallus konjac (Konjac) plants can offer valuable insights for agricultural management and yield prediction. While current studies have primarily focused on detecting and counting crop plants during the early stages of low coverage, there is limited investigation into the later stages of high coverage, which could impact the accuracy of forecasting yield. High canopy coverage and severe occlusion in later stages pose significant challenges for plant detection and counting. Therefore, this study evaluated the performance of the Count Crops tool and a deep learning (DL) model derived from early-stage unmanned aerial vehicle (UAV) imagery in detecting and counting Konjac plants during the high-coverage growth stage. Additionally, the study proposed an approach that integrates the DL model with Konjac location information from both early-stage and high canopy coverage stage imagery to improve the accuracy of recognizing Konjac plants during the high canopy coverage stage. The results indicated that the Count Crops tool outperformed the DL model constructed solely from early-stage imagery in detecting and counting Konjac plants during the high-coverage period. However, given the single stem and erect growth characteristics of Konjac, incorporating the DL model with the location information of the Konjac plants achieved the highest accuracy (Precision = 98.7%, Recall = 86.7%, F1-score = 92.3%). Our findings indicate that combining DL detection results from the early growth stages of Konjac, along with plant positional information from both growth stages, not only significantly improved the accuracy of detecting and counting plants but also saved time on annotating and training DL samples in the later stages. This study introduces an innovative approach for detecting and counting Konjac plants during high-coverage periods, providing a new perspective for recognizing and counting other crop plants at high-overlapping growth stages.

摘要

准确统计魔芋植株数量可为农业管理和产量预测提供有价值的见解。虽然目前的研究主要集中在低覆盖早期阶段的作物植株检测和计数上,但对高覆盖后期阶段的研究较少,而这可能会影响产量预测的准确性。后期高树冠覆盖率和严重遮挡对植物检测和计数构成了重大挑战。因此,本研究评估了Count Crops工具和基于早期无人机(UAV)图像的深度学习(DL)模型在高覆盖生长阶段检测和计数魔芋植株的性能。此外,该研究提出了一种方法,将DL模型与早期和高树冠覆盖阶段图像中的魔芋位置信息相结合,以提高高树冠覆盖阶段魔芋植株识别的准确性。结果表明,在高覆盖期检测和计数魔芋植株时,Count Crops工具优于仅基于早期图像构建的DL模型。然而,鉴于魔芋单茎直立生长的特性,将DL模型与魔芋植株的位置信息相结合可实现最高的准确率(精确率=98.7%,召回率=86.7%,F1分数=92.3%)。我们的研究结果表明,将魔芋早期生长阶段的DL检测结果与两个生长阶段的植株位置信息相结合,不仅显著提高了植株检测和计数的准确性,还节省了后期DL样本标注和训练的时间。本研究介绍了一种在高覆盖期检测和计数魔芋植株的创新方法,为识别和计数其他处于高重叠生长阶段的作物植株提供了新的视角。
