Zhang Liangshutong, Zhang Yupu, Li Xinyu, Han Donghao, Zhai Wei, Wang Jianyuan
MOE Key Laboratory of Materials Physics and Chemistry under Extraordinary Conditions & Shaanxi Provincial Key Laboratory of Condensed Matter Structure and Properties, School of Physical Science and Technology, Northwestern Polytechnical University, Xi'an, 710072, P. R. China.
Adv Sci (Weinh). 2025 May;12(17):e2414438. doi: 10.1002/advs.202414438. Epub 2025 Mar 11.

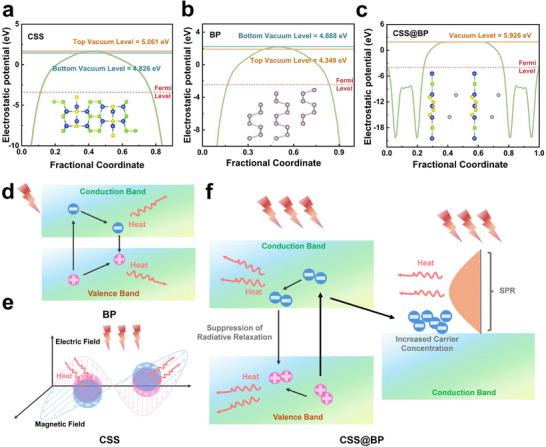

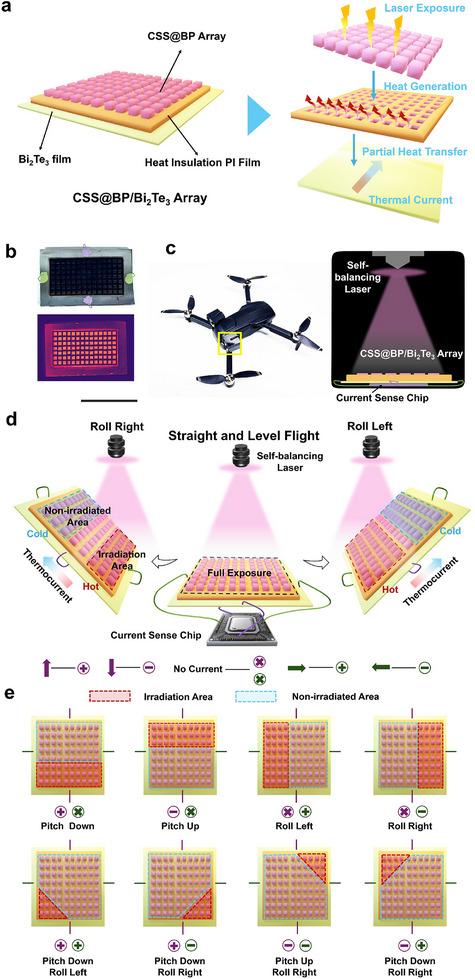

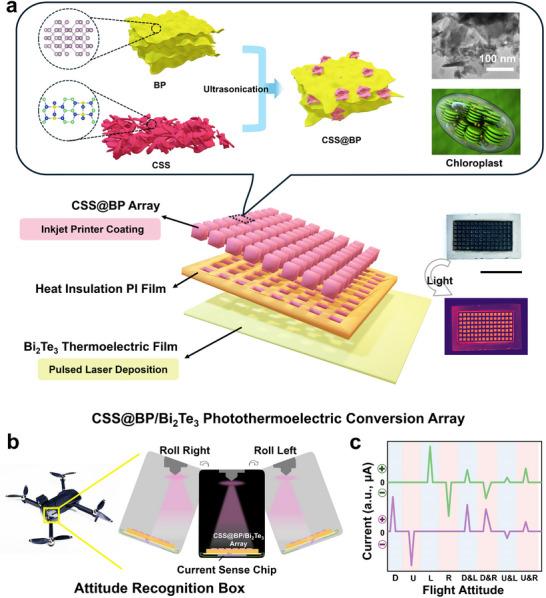

The realization of fast, simple and efficient flight attitude recognition is crucial for flight safety and control stability, but still faces challenges in new materials and technologies. Herein, a chloroplast-like selenium-doped copper sulfide@black phosphorus (CSS@BP) composite material is prepared by ultrasonic chemical synthesis using BP nanosheets to effectively absorb light energy and disperse CSS layers to promote rapid photothermal conversion, which shows the temperature change more than ≈40 °C and an excellent photothermal conversion efficiency of 68.9% at 405 nm, corresponding to the theoretical calculation results. Moreover, the CSS@BP/BiTe photothermoelectric conversion array prepared by pulsed laser deposition coated BiTe thermoelectric layer and laminated porous insulating polyimide film can generate rapid thermal current changes through irradiated/non-irradiated thermal gradients. Hence, a portable attitude recognition box (ARB) is assembled with a based CSS@BP/BiTe array with a self-balancing laser and a current measurement chip that enables accurate attitude recognition through the bidirectional current generated by changes of irradiated area. Excitably, the ARB demonstrates over 86.47% accuracy without complex algorithms, showing excellent stability and robustness. Thus, this work offers an innovative solution for advancing photothermal materials and low-cost high-precision flight attitude sensing technologies.
实现快速、简单且高效的飞行姿态识别对于飞行安全和控制稳定性至关重要,但在新材料和技术方面仍面临挑战。在此,通过超声化学合成法,利用黑磷纳米片制备了一种类叶绿体的硒掺杂硫化铜@黑磷(CSS@BP)复合材料,该材料能有效吸收光能并分散CSS层以促进快速光热转换,在405nm处温度变化超过≈40°C,光热转换效率高达68.9%,与理论计算结果相符。此外,通过脉冲激光沉积法制备的CSS@BP/BiTe光热电转换阵列,在其上涂覆BiTe热电层并层压多孔绝缘聚酰亚胺薄膜,可通过照射/未照射的热梯度产生快速的热电流变化。因此,利用基于CSS@BP/BiTe阵列、自平衡激光器和电流测量芯片组装了一个便携式姿态识别盒(ARB),该识别盒能够通过照射面积变化产生的双向电流实现精确的姿态识别。令人兴奋的是,该ARB在无需复杂算法的情况下准确率超过86.47%,展现出出色的稳定性和鲁棒性。因此,这项工作为推进光热材料和低成本高精度飞行姿态传感技术提供了一种创新解决方案。
