Dong Yingchao, Violet Camille, Sun Chunyi, Li Xianhui, Sun Yuxuan, Zheng Qingbin, Tang Chuyang, Elimelech Menachem
School of Science and Engineering, The Chinese University of Hong Kong, Shenzhen, Guangdong Province, China.
Department of Chemical and Environmental Engineering, Yale University, New Haven, CT, USA.
Nat Commun. 2025 Mar 18;16(1):2659. doi: 10.1038/s41467-025-57888-2.

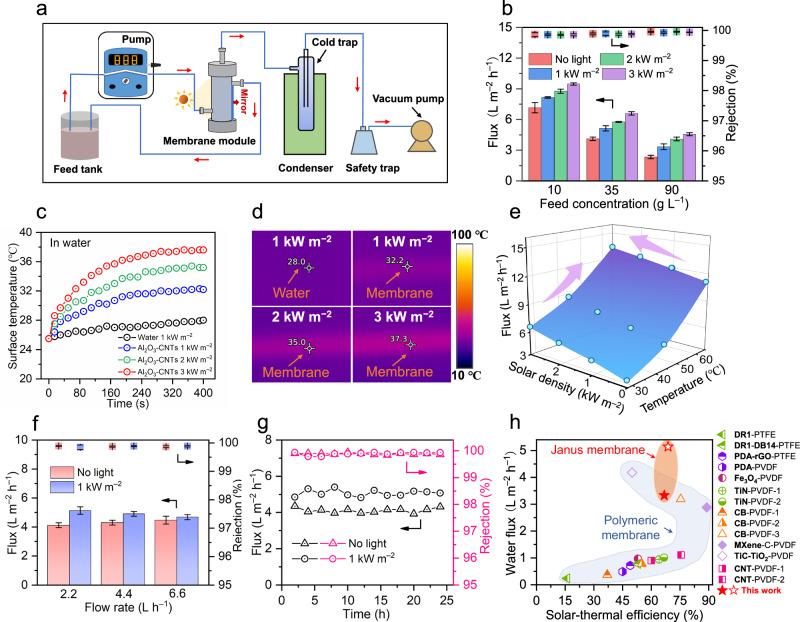

The desalination performance of conventional distillation membranes is limited by insufficient stability and energy efficiency, impeding their application in sustainable water production. Herein, we report a ceramic-carbon Janus membrane with solar-thermal functionality for enhanced desalination performance, energy efficiency, and stability for hypersaline water treatment. The feed and permeate sides of this Janus membrane are designed with different properties such as wettability, conductivity, and solar-thermal conversion to enhance performance. We demonstrate that this membrane exhibits higher solar-thermal efficiency (66.8-68.8%) and water flux (3.3-5.1 L m h) than most existing polymeric solar-thermal distillation membranes. Simulation results ascribe enhanced performance to an increased membrane surface temperature, which mitigates temperature polarization and attenuation, thus enhancing the desalination driving force. The nano-carbon membrane surface accelerates water evaporation by inducing a transition from free water to intermediate water with decreased hydrogen bonding and a lower evaporation energy barrier. Water vapor molecules transport through the membrane pores by a combined mechanism of Knudsen diffusion and viscous flow. Even for seawater and hypersaline water, the membrane exhibits stable water flux and salt rejection due to its scaling-resistant surface and stable interfacial temperature. This work provides a strategy for rationally designing next-generation Janus membranes for sustainable water purification.
传统蒸馏膜的脱盐性能受到稳定性和能源效率不足的限制,阻碍了它们在可持续水生产中的应用。在此,我们报道了一种具有太阳能热功能的陶瓷-碳 Janus 膜,用于提高高盐水处理的脱盐性能、能源效率和稳定性。这种 Janus 膜的进料侧和渗透侧设计有不同的特性,如润湿性、导电性和太阳能热转换,以提高性能。我们证明,这种膜比大多数现有的聚合物太阳能热蒸馏膜表现出更高的太阳能热效率(66.8-68.8%)和水通量(3.3-5.1 L m h)。模拟结果表明,性能的提高归因于膜表面温度的升高,这减轻了温度极化和衰减,从而增强了脱盐驱动力。纳米碳膜表面通过诱导从自由水到中间水的转变,减少氢键并降低蒸发能垒,从而加速水的蒸发。水蒸气分子通过努森扩散和粘性流的组合机制穿过膜孔。即使对于海水和高盐水,由于其抗结垢表面和稳定的界面温度,该膜也表现出稳定的水通量和脱盐率。这项工作为合理设计用于可持续水净化的下一代 Janus 膜提供了一种策略。
