Amino Acid-Based Hydrogel with Interpenetrating Gelatin and Cross-Linked by Metal Ions, Providing High Stretchability and Motion Sensitivity.

作者信息

Khodami Samaneh, Kaniewska Klaudia, Romanski Jan, Karbarz Marcin, Stojek Zbigniew

机构信息

University of Warsaw, Faculty of Chemistry, 1 Pasteura Str., Warsaw 02-093, Poland.

Biological and Chemical Research Center, University of Warsaw, 101 Żwirki I Wigury Av., PL, Warsaw 02-089, Poland.

出版信息

ACS Omega. 2025 Mar 17;10(12):12062-12075. doi: 10.1021/acsomega.4c10083. eCollection 2025 Apr 1.


DOI:10.1021/acsomega.4c10083
PMID:40191295
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11966301/
Abstract

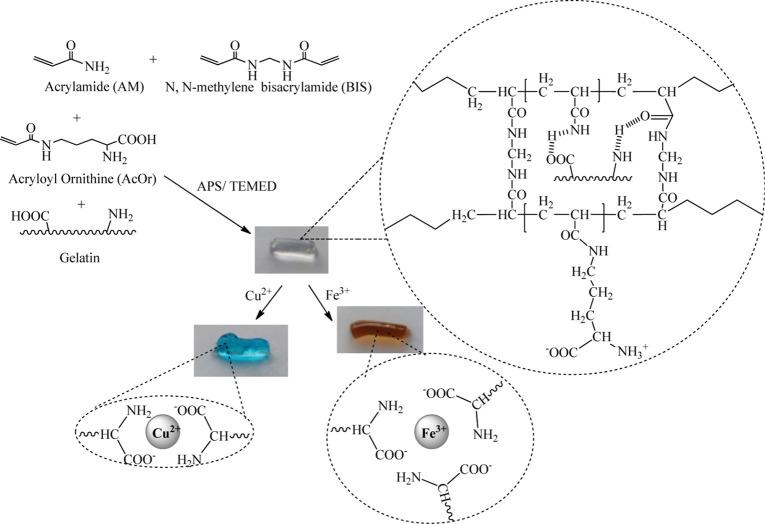

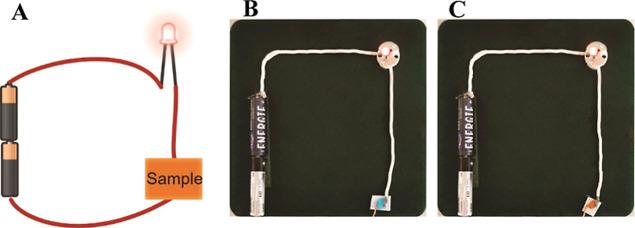

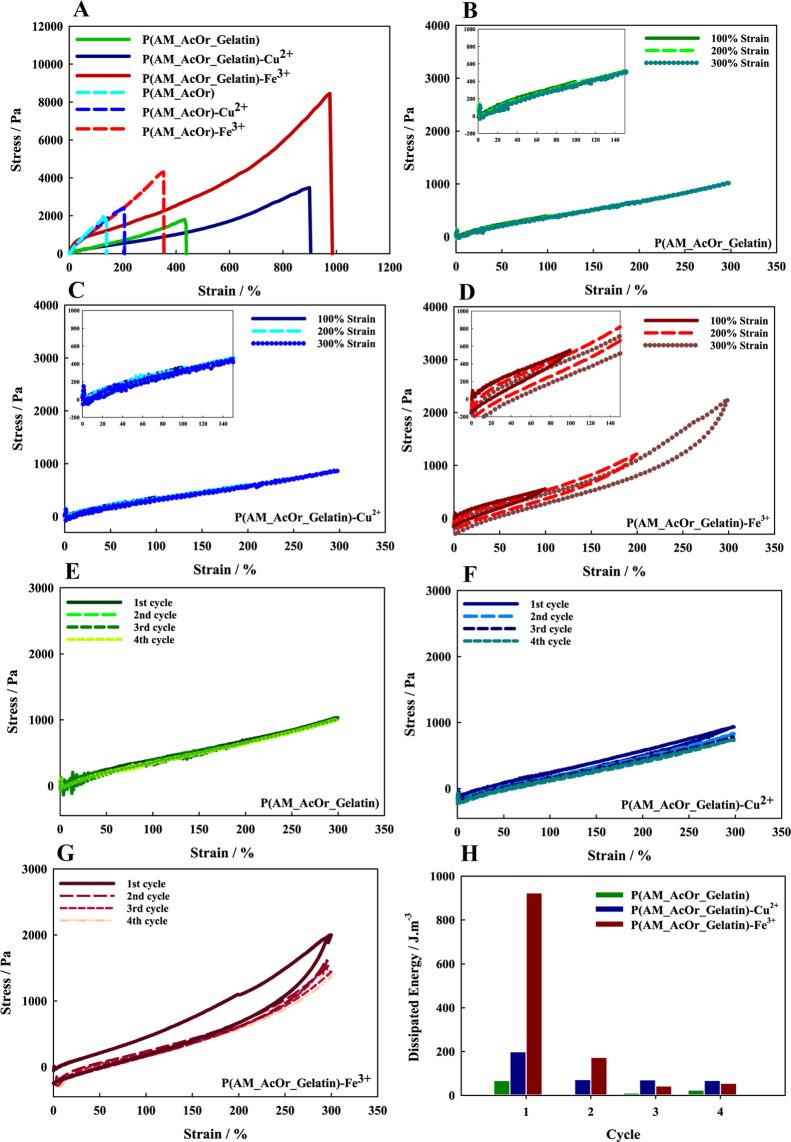

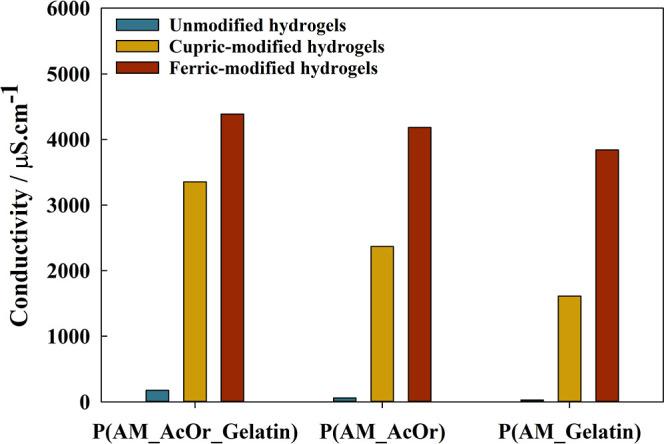

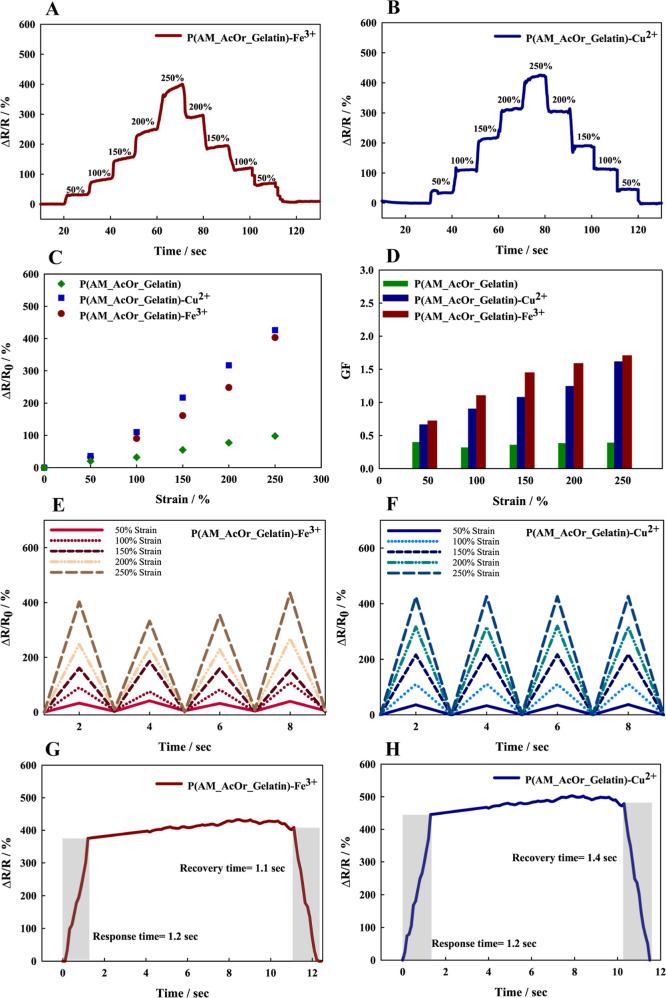

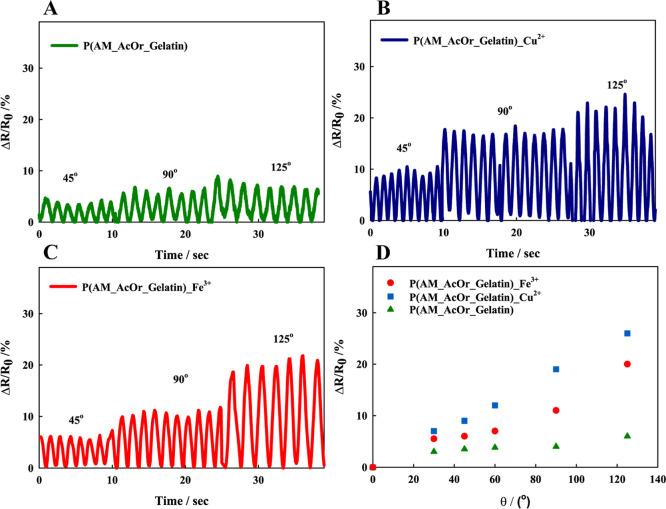

A double network structure with metal ions was created to enhance the mechanical stability of the hydrogels and increase their low conductivity. For this purpose, the P(AM_AcOr_Gelatin) hydrogel was synthesized by combining gelatin, a biocompatible polymer, -δ-acryloyl-ornithine (AcOr), an amino acid derivative, and acrylamide (AM). Because the amino acid-based monomer added charged groups to the hydrogel network, the hydrogel exhibited improved conductivity and motion sensitivity properties compared with polyacrylamide (PAM) hydrogels. Furthermore, we altered the P(AM_AcOr_Gelatin) hydrogel by introducing the Fe and Cu ions, resulting in the formation of the P(AM_AcOr_Gelatin)-Fe and P(AM_AcOr_Gelatin)-Cu hydrogels. The hydrogels containing metal ions had coordination bonds between the ions, gelatin, and AcOr. Additionally, there were other noncovalent bonds present, resulting in further increased conductivity (approximately 95% improvement) and stretchability (more than double). The conductivity and resistance of the hydrogels changed, depending on the bending position and strain applied to the hydrogel layer. The results demonstrated that the hydrogel layer had good strain sensitivity, with an enhanced gauge factor (GF) of approximately 1.7 (at 250% strain) and a conductivity ranging from 3355 to 4387 μS·cm.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/c40c98b092b8/ao4c10083_0011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/bbd10ee46de8/ao4c10083_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/454ae3743200/ao4c10083_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/af722106127d/ao4c10083_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/57183e1fadf6/ao4c10083_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/990ba0d77a62/ao4c10083_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/367a1b39ae01/ao4c10083_0006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/6396c169ba55/ao4c10083_0007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/5cb592214afa/ao4c10083_0008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/7e1904b2d4b9/ao4c10083_0009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/a39c85665ea9/ao4c10083_0010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/c40c98b092b8/ao4c10083_0011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/bbd10ee46de8/ao4c10083_0001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/454ae3743200/ao4c10083_0002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/af722106127d/ao4c10083_0003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/57183e1fadf6/ao4c10083_0004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/990ba0d77a62/ao4c10083_0005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/367a1b39ae01/ao4c10083_0006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/6396c169ba55/ao4c10083_0007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/5cb592214afa/ao4c10083_0008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/7e1904b2d4b9/ao4c10083_0009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/a39c85665ea9/ao4c10083_0010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/061a/11966301/c40c98b092b8/ao4c10083_0011.jpg
