用于乳房重建中基于穿支皮瓣映射的扩展现实:一项系统评价和荟萃分析。

Extended reality for mapping perforator-based flaps in breast reconstruction: a systematic review and meta-analysis.

作者信息

Lacey Hester, Khan Anas, Dheansa Baljit

机构信息

University Hospitals Sussex NHS Foundation Trust, Eastern Rd, Brighton and Hove, Brighton, BN2 5BE, UK.

Department of Plastic Surgery, Queen Victoria Hospital, Holtye Rd, East Grinstead, RH19 3DZ, UK.

出版信息

JPRAS Open. 2025 Feb 27;44:269-283. doi: 10.1016/j.jpra.2025.02.011. eCollection 2025 Jun.


DOI:10.1016/j.jpra.2025.02.011
PMID:40247954
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC12005224/
Abstract

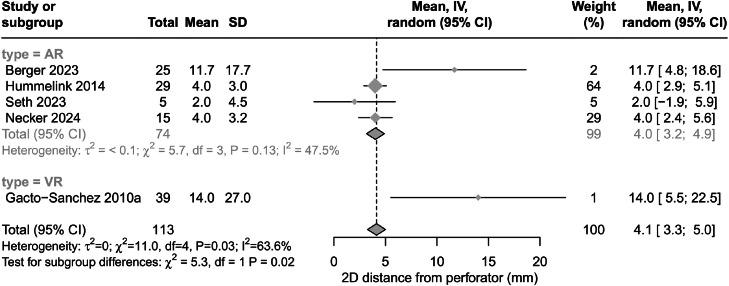

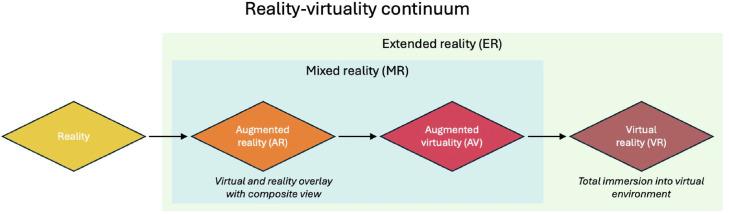

INTRODUCTION: Extended reality technologies including augmented reality (AR) and virtual reality (VR) can be used in surgical settings for surgical planning, perioperative visualisation of patient anatomy and simulation of operative steps. This study aimed to ascertain the role of extended reality in perforator-based breast reconstruction. METHODS: A systematic search of the literature was performed. Screening was conducted independently by two reviewers, with conflicts resolved through consensus. RESULTS: In total, 4957 articles were identified of which 10 were included, comprising 229 flaps. Overall, localisation of perforator emergence with AR and VR were 4 mm (95% confidence interval [CI] 3.2-4.9) and 14 mm (95% CI 5.5-22.5), respectively, from the correct intraoperatively identified location. Two studies reported a significant reduction in harvesting time (88 min for VR and 19 min for AR). The pooled mean image processing time from four studies was 39±47 min. Preoperative VR was associated with shorter operative times than conventional Doppler ultrasound (478±56.94 vs 606.29 ± 81.94 min, P<0.05). Use of a simulated environment for mapping perforators appeared to reduce complications (wound breakdown, flap revision, flap loss, infection); however, this failed to reach statistical significance (odds ratio 0.6; 95% CI 0.3-1.3; P=0.20). CONCLUSIONS: This study suggests that AR and VR offer limited benefit in improving accuracy of perforator identification; however, they may reduce flap harvesting and total operative time. Key limitations include heterogeneity and quality of the included studies. With larger sample sizes and higher quality evidence, definitive benefits and longitudinal outcomes relating to use of extended reality in perforator-based breast reconstruction may be established.

摘要

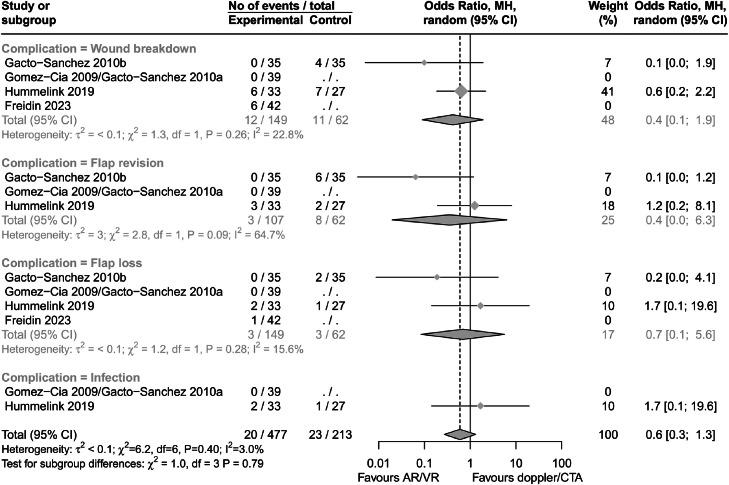

引言:包括增强现实(AR)和虚拟现实(VR)在内的扩展现实技术可用于手术场景,进行手术规划、患者解剖结构的围手术期可视化以及手术步骤模拟。本研究旨在确定扩展现实在穿支皮瓣乳房重建中的作用。 方法:对文献进行系统检索。由两名 reviewers 独立进行筛选,通过共识解决冲突。 结果:共识别出 4957 篇文章,其中 10 篇被纳入,包括 229 个皮瓣。总体而言,AR 和 VR 对穿支穿出点的定位与术中正确识别位置的距离分别为 4 毫米(95%置信区间[CI]3.2 - 4.9)和 14 毫米(95%CI 5.5 - 22.5)。两项研究报告称采集时间显著缩短(VR 为 88 分钟,AR 为 19 分钟)。四项研究的汇总平均图像处理时间为 39±47 分钟。术前 VR 与传统多普勒超声相比手术时间更短(478±56.94 对 606.29±81.94 分钟,P<0.05)。使用模拟环境绘制穿支似乎可减少并发症(伤口裂开、皮瓣修复、皮瓣丢失、感染);然而,这未达到统计学意义(优势比 0.6;95%CI 0.3 - 1.3;P = 0.20)。 结论:本研究表明,AR 和 VR 在提高穿支识别准确性方面益处有限;然而,它们可能会减少皮瓣采集和总手术时间。主要局限性包括纳入研究的异质性和质量。随着样本量增大及证据质量提高,或许能够确定扩展现实在穿支皮瓣乳房重建中的明确益处和长期结果。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/441412e99815/gr5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/8b18649274b4/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/81137e38d566/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/9ddd5ccbf913/gr3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/36cdb1f9fb04/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/441412e99815/gr5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/8b18649274b4/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/81137e38d566/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/9ddd5ccbf913/gr3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/36cdb1f9fb04/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a013/12005224/441412e99815/gr5.jpg
