纤维素纳米晶体和自组装木质素增强了PEDOT/PSS/PVA复合材料的机械性能和自供电可穿戴性能。

Cellulose Nanocrystal and Self-Assembling Lignin Enhanced the PEDOT/PSS/PVA Composite on Mechanical and Self-Powered Wearable Properties.

作者信息

Shi Shih-Chen, Hsieh Yan-Ching, Rahmadiawan Dieter

机构信息

Department of Mechanical Engineering, National Cheng Kung University, Tainan 70101, Taiwan.

Department of Mechanical Engineering, Universitas Negeri Padang, Padang, Sumatera Barat 25173, Indonesia.

出版信息

ACS Omega. 2025 Apr 10;10(15):14666-14675. doi: 10.1021/acsomega.4c07933. eCollection 2025 Apr 22.

Abstract

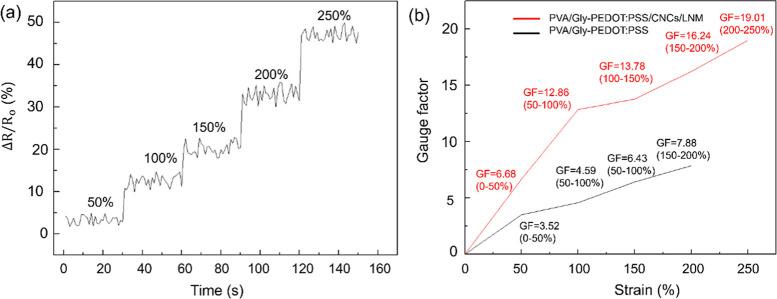

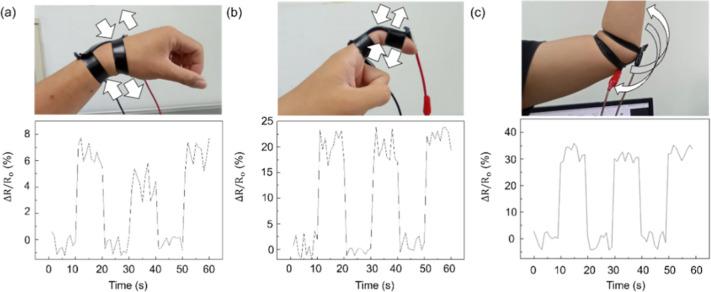

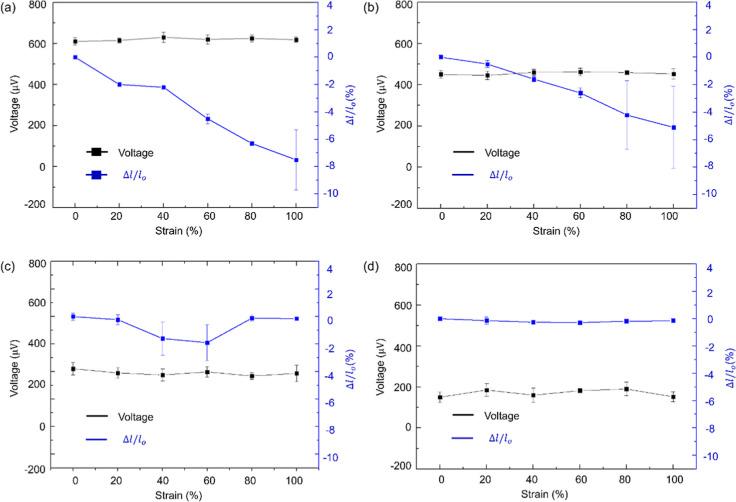

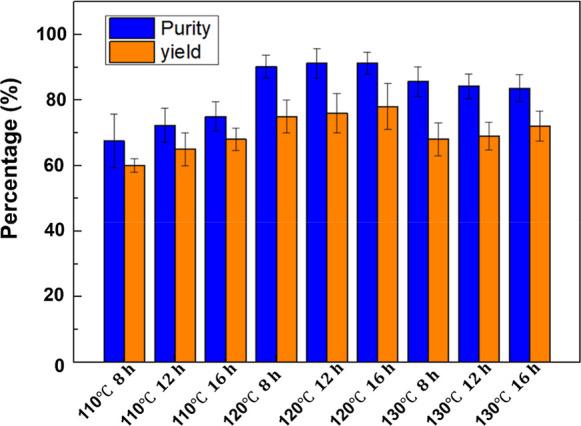

Lignin nanomicelle (LNM) synthesis via deep eutectic solvent (DES) has been optimized from a conventional duration of 2-3 days to a streamlined 12 h procedure utilizing autoclave reactor heating. This approach facilitates the efficient extraction of lignin from straw and its subsequent formation into LNMs via a simultaneous self-assembly mechanism. Integration of these amphiphilic LNMs into a cellulose nanocrystal (CNC) framework, combined with PEDOT: PSS in a poly(vinyl alcohol) (PVA) matrix, yields a self-powered strain sensor characterized by enhanced tensile properties and heightened strain sensitivity. Incorporating carboxyl functional groups from LNMs on the PVA matrix significantly augments the sensor's mechanical strength and elasticity. This is evidenced by achieving Young's modulus of 65.9 MPa and an elongation capacity of 320%, ensuring its efficacy in human motion detection. The synergistic inclusion of CNCs and LNMs amplifies the sensor's gauge factor, thereby augmenting its strain responsiveness. The elevated aspect ratio of CNCs establishes an efficacious electrical network that, in concert with the interaction between CNCs and PEDOT: PSS, diminishes the electrical percolation threshold, culminating in an improved gauge factor of 19, indicative of enhanced strain detection capabilities. Furthermore, the sensor can generate a thermoelectric voltage in response to thermal gradients, with the dynamic structures of LNM improving the conductivity and PEDOT: PSS dispersion within the PVA matrix, thereby optimizing the Seebeck coefficient. After enduring 5000 cycles of 100% strain deformation tests, the sensor demonstrates consistent performance, underscoring its reliability and durability. The fabricated PVA/Gly-LNM/CNCs/PEDOT: PSS composite material has been successfully applied to detect nuanced human gestures, including finger and wrist movements, affirming its potential utility in wearable technology applications.

摘要

通过深共熔溶剂(DES)合成木质素纳米胶束(LNM)的过程已从传统的2至3天优化为利用高压釜反应器加热的简化12小时程序。这种方法有助于从秸秆中高效提取木质素,并通过同步自组装机制将其随后形成LNM。将这些两亲性LNM整合到纤维素纳米晶体(CNC)框架中,并与聚(乙烯醇)(PVA)基质中的PEDOT:PSS相结合,产生了一种自供电应变传感器,其特点是拉伸性能增强和应变灵敏度提高。在PVA基质上引入来自LNM的羧基官能团显著增强了传感器的机械强度和弹性。这通过实现65.9 MPa的杨氏模量和320%的伸长能力得到证明,确保了其在人体运动检测中的功效。CNC和LNM的协同包含放大了传感器的应变片系数,从而增强了其应变响应性。CNC的高纵横比建立了一个有效的电网络,该电网络与CNC和PEDOT:PSS之间的相互作用协同作用,降低了电渗流阈值,最终使应变片系数提高到19,表明应变检测能力增强。此外,该传感器可以响应热梯度产生热电压,LNM的动态结构改善了PVA基质内的导电性和PEDOT:PSS分散性,从而优化了塞贝克系数。在经受5000次100%应变变形测试循环后,该传感器表现出一致的性能,突出了其可靠性和耐久性。所制备的PVA/Gly-LNM/CNCs/PEDOT:PSS复合材料已成功应用于检测细微的人体手势,包括手指和手腕运动,证实了其在可穿戴技术应用中的潜在效用。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8169/12019433/93276a736ffd/ao4c07933_0001.jpg
