Rismaningsih Nurmanita, Kubo Junya, Soto Masayuki, Akiyoshi Kazutaka, Kameyama Tatsuya, Yamamoto Takahisa, Yukawa Hiroshi, Baba Yoshinobu, Torimoto Tsukasa
Graduate School of Engineering, Nagoya University, Chikusa-ku, Nagoya, 464-8603, Japan.
Research Institute for Quantum and Chemical Innovation, Institutes of Innovation for Future Society, Nagoya University, Chikusa-ku, Nagoya, 464-8603, Japan.
Small. 2025 Aug;21(32):e2411142. doi: 10.1002/smll.202411142. Epub 2025 May 7.

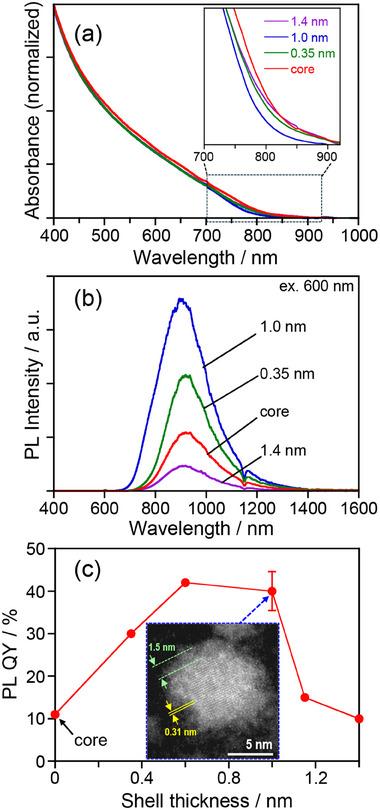

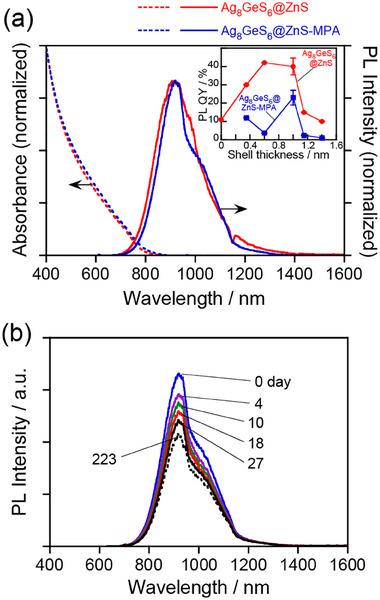

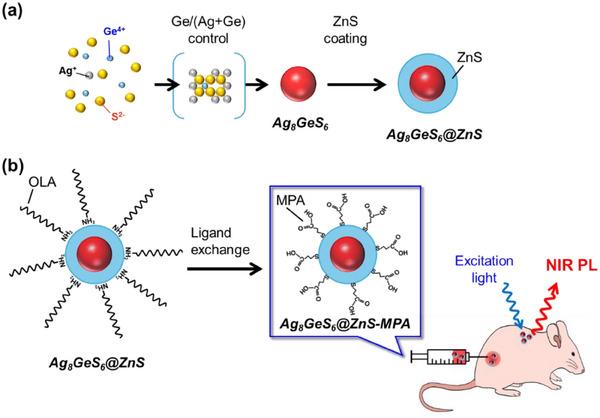

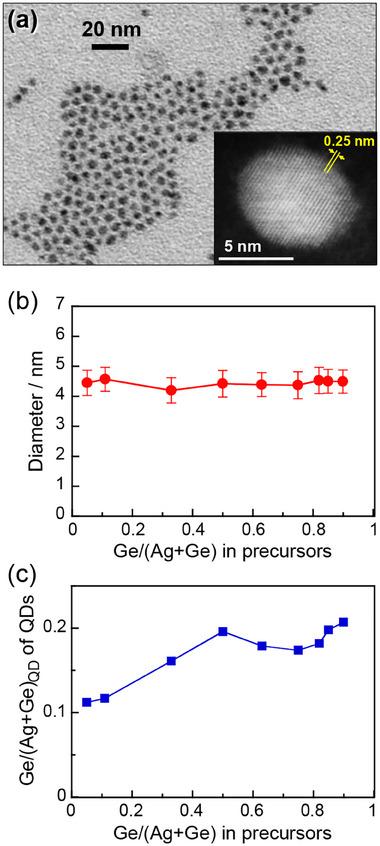

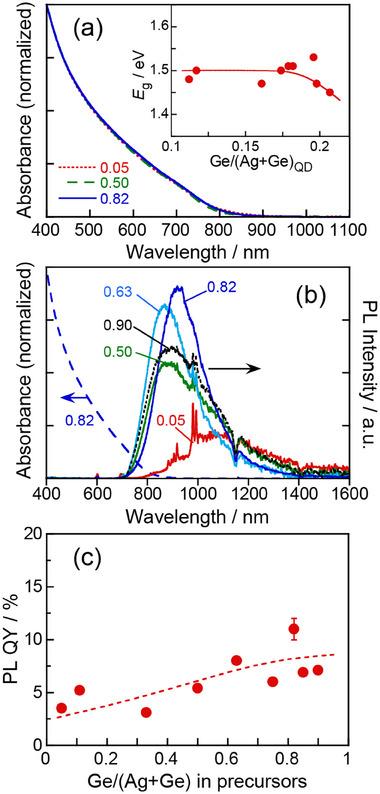

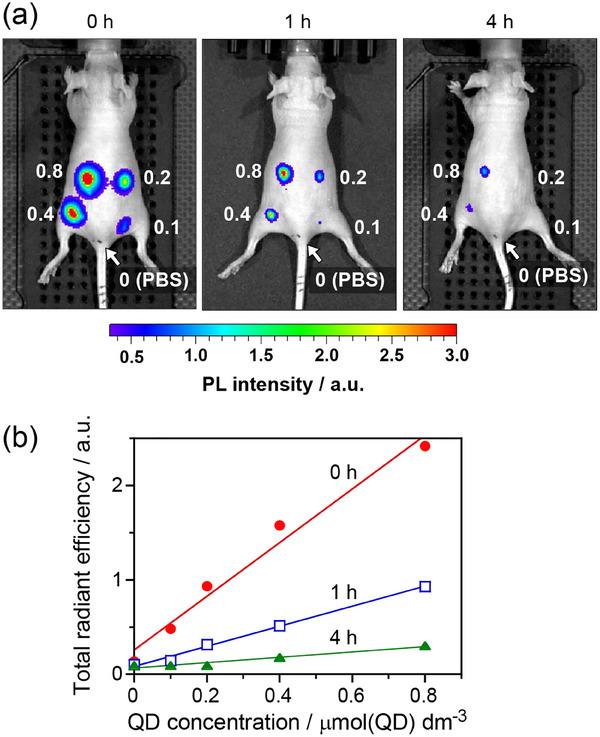

Quantum dots (QDs) composed of a group I-IV-VI semiconductor, AgGeS, have been intensively investigated for constructing efficient energy conversion systems. However, their potential for photoluminescence (PL)-based applications has remained unexplored. Herein, the first successful preparation of AgGeS QDs exhibiting near-infrared (NIR) PL is reported. These AgGeS QDs with an average diameter of 4.2-4.6 nm has an almost constant energy gap at 1.48-1.45 eV, even when the Ge/(Ag+Ge) precursor ratio is varied from 0.05 to 0.90. A significant PL peak is observed at 920 nm, the intensity being enlarged with an increase in the Ge/(Ag+Ge) ratio. The use of AgGeS QDs prepared with Ge/(Ag+Ge) = 0.82 in the precursors result in a PL quantum yield (QY) of 11%, which is further enhanced to 40% through surface coating with a ZnS shell of 1.0 nm in thickness, with the PL peak wavelength being slightly blue-shifted to 900 nm. Following surface modification with 3-mercaptopropionic acid for homogeneous dispersion in aqueous solutions, the AgGeS@ZnS QDs are utilized as an NIR PL probe for in vivo bioimaging. PL signals are clearly detected from depths of at least 15 mm beneath the back skin of a mouse, demonstrating their deep-tissue imaging capability.
由 I-IV-VI 族半导体 AgGeS 组成的量子点(QDs)已被深入研究用于构建高效的能量转换系统。然而,它们在基于光致发光(PL)的应用方面的潜力尚未得到探索。在此,报道了首次成功制备出表现出近红外(NIR)PL 的 AgGeS 量子点。这些平均直径为 4.2 - 4.6 纳米的 AgGeS 量子点,即使 Ge/(Ag + Ge) 前驱体比例从 0.05 变化到 0.90,其能隙也几乎恒定在 1.48 - 1.45 电子伏特。在 920 纳米处观察到一个显著的 PL 峰,其强度随着 Ge/(Ag + Ge) 比例的增加而增大。使用前驱体中 Ge/(Ag + Ge) = 0.82 制备的 AgGeS 量子点,其 PL 量子产率(QY)为 11%,通过用厚度为 1.0 纳米的 ZnS 壳层进行表面包覆,PL 量子产率进一步提高到 40%,PL 峰波长略微蓝移至 900 纳米。在用 3 - 巯基丙酸进行表面改性以在水溶液中均匀分散后,AgGeS@ZnS 量子点被用作体内生物成像的近红外 PL 探针。从小鼠背部皮肤下方至少 15 毫米深处清晰检测到 PL 信号,证明了它们的深层组织成像能力。
