视频地图：一种考虑数字高程模型（DEM）和语义信息的实时正射地理图像。

Video map: A realtime orthographic geo-image considering DEM and semantic information.

作者信息

Zhang Xingguo, Li Xiaodi, Ren Shuai, Liu Mohan, Yang Sen

机构信息

School of Geographic Sciences, Xinyang Normal University, Xinyang, China.

出版信息

PLoS One. 2025 May 14;20(5):e0323669. doi: 10.1371/journal.pone.0323669. eCollection 2025.

DOI:10.1371/journal.pone.0323669
PMID:40367246
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC12077791/
Abstract

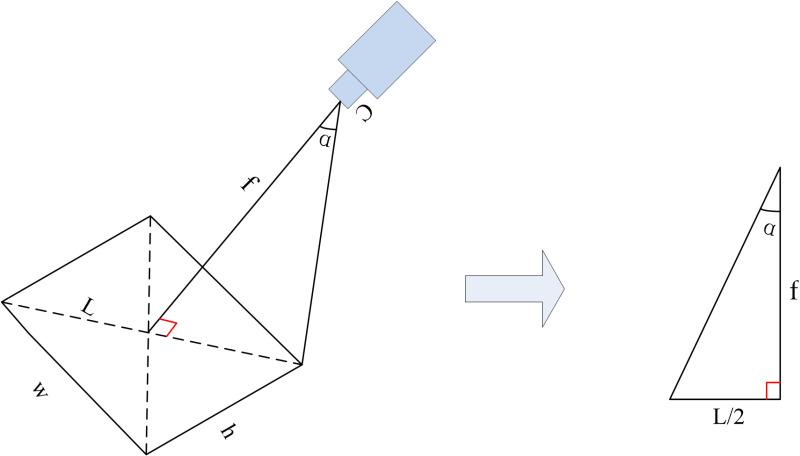

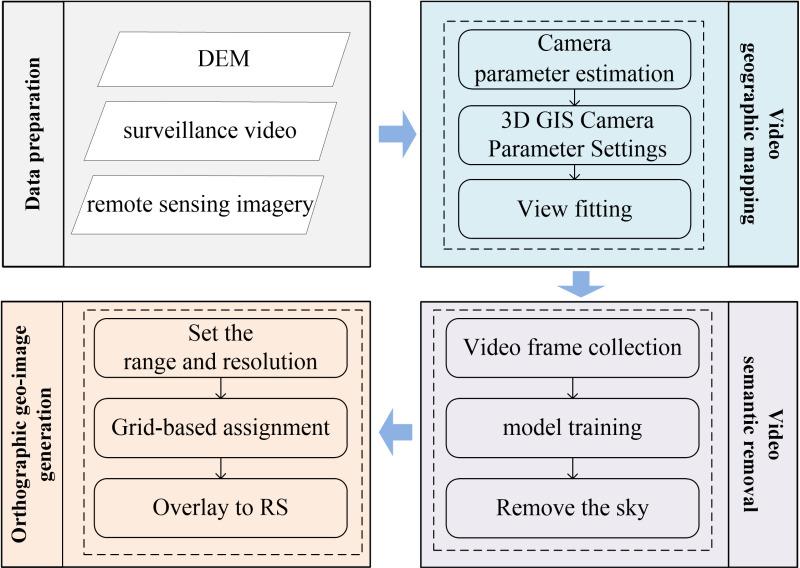

Aiming at the problem that it is difficult to accurately calibrate massive Pan-Tilt-Zoom Camera (PTZ) cameras on telecommunication tower and the visualization effect of orthographic geo-image is poor, this paper proposes a new method of realtime orthographic geo-image generating, which is considering Digital Elevation Model (DEM) and semantic information (ROGI-DS). First, through integrating tower cameras with 3D GIS, a camera calibration method based on view fitting (3D GIS-GeoC) is designed. Then, using the trained semantic segmentation model (TCSM), the sky area can automatically be identified and removed. Finally, based on the results of camera calibration and viewshed analysis, and the orthographic geo-image are generated. The results show that: (1) 3D GIS-GeoC method outperforms the traditional Perspective-n-Point (PnP) algorithm;(2) The tower camera semantic segmentation model (TCSM) achieves an accuracy of 96.7%; (3) ROGI-DS method improves the accuracy and visualization of orthographic geo-image under different terrain constraints, and can be used real-time monitoring of natural resources and emergency reliefs.

摘要

针对电信塔上大量云台摄像机难以精确校准以及正射地理影像可视化效果不佳的问题，本文提出了一种考虑数字高程模型（DEM）和语义信息的实时正射地理影像生成新方法（ROGI-DS）。首先，通过将塔上摄像机与3D GIS集成，设计了一种基于视图拟合的摄像机校准方法（3D GIS-GeoC）。然后，利用训练好的语义分割模型（TCSM），自动识别并去除天空区域。最后，基于摄像机校准和视域分析结果，生成正射地理影像。结果表明：（1）3D GIS-GeoC方法优于传统的透视n点（PnP）算法；（2）塔摄像机语义分割模型（TCSM）的准确率达到96.7%；（3）ROGI-DS方法在不同地形约束下提高了正射地理影像的精度和可视化效果，可用于自然资源实时监测和应急救援。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/078b90435fcf/pone.0323669.g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/c9d0f61056b0/pone.0323669.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/2b9f77cbc48c/pone.0323669.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/294c6495438c/pone.0323669.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/33763b61df17/pone.0323669.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/15a72515d46b/pone.0323669.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/7fc3f8097f34/pone.0323669.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/45b5f9e08a2c/pone.0323669.g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/2d5e569c716e/pone.0323669.g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/f73e0c5ecdae/pone.0323669.g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/631be7d4a8e3/pone.0323669.g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/b30d16ea848f/pone.0323669.g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/bcd9a6247fa8/pone.0323669.g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/83c7e551980a/pone.0323669.g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/3a26922c03ce/pone.0323669.g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/078b90435fcf/pone.0323669.g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/c9d0f61056b0/pone.0323669.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/2b9f77cbc48c/pone.0323669.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/294c6495438c/pone.0323669.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/33763b61df17/pone.0323669.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/15a72515d46b/pone.0323669.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/7fc3f8097f34/pone.0323669.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/45b5f9e08a2c/pone.0323669.g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/2d5e569c716e/pone.0323669.g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/f73e0c5ecdae/pone.0323669.g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/631be7d4a8e3/pone.0323669.g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/b30d16ea848f/pone.0323669.g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/bcd9a6247fa8/pone.0323669.g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/83c7e551980a/pone.0323669.g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/3a26922c03ce/pone.0323669.g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bbde/12077791/078b90435fcf/pone.0323669.g015.jpg
