用于高性能超级电容器的双金属ZIF-67 LDH纳米复合材料的结构导向合成

Structure-directed synthesis of bimetallic ZIF-67 LDH nanocomposites for high-performance supercapacitors.

作者信息

Rehman Zia Ur, Yao Shanshan, Miotello Antonio, Ben Henda Mouna, Farooq Umar, Aziz Irum, Althagafi Talal M, Almarhoon Zainab M, Zaki Magdi E A, Khan Afaq Ullah

机构信息

Institute for Advanced Materials, College of Materials Science and Engineering, Jiangsu University Zhenjiang 212013 P. R. China

Department of Chemistry, Hazara University Mansehra-21120 Khyber Pakhtunkhwa Pakistan.

出版信息

RSC Adv. 2025 May 19;15(21):16667-16676. doi: 10.1039/d5ra01889g. eCollection 2025 May 15.

DOI:10.1039/d5ra01889g
PMID:40391366
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC12086822/
Abstract

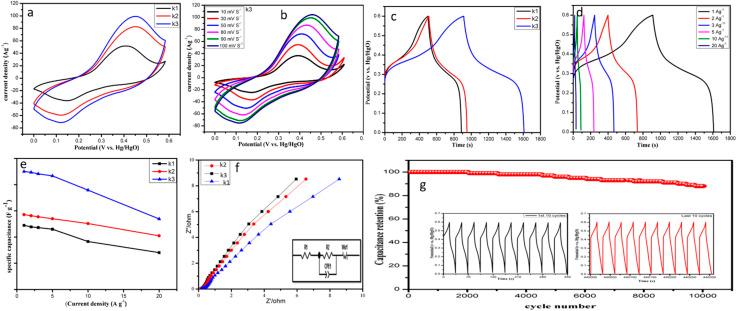

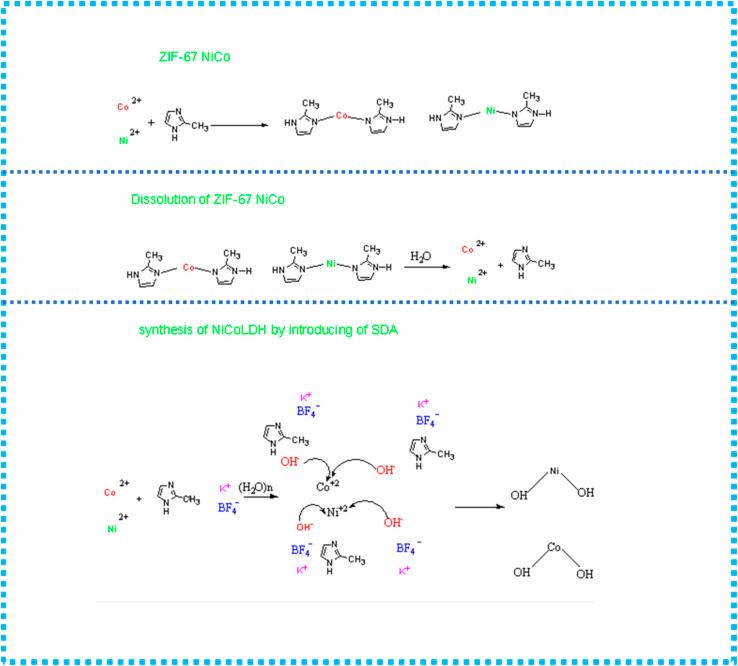

The energy storage ability of a device highly depends on the morphology of the materials used. A structure-directing agent (SDA) can be used to design materials with a specific surface morphology. Zeolite imidazole (ZIF-67) is a favorable electroactive material for energy storage devices. Here, we present a novel approach for synthesizing a ZIF-67 derived NiCo layer double hydroxide hollow surface sheet like morphology, in which potassium fluoroborate acts as a SDA. The hollow sheets possess the largest specific capacitance of 1171 F g at 1 A g. The energy storage device composed of ZIF-67 derivatives and a carbon electrode presents a maximum energy density of 26 W h kg at a power density of 804 W kg. The device shows good cyclic stability of 84% after 10 000 charge-discharge cycles. These outcomes reveal the promising potential of zeolite imidazole (ZIF-67)-based materials for use in next-generation energy storage devices.

摘要

器件的储能能力高度依赖于所使用材料的形态。结构导向剂（SDA）可用于设计具有特定表面形态的材料。沸石咪唑（ZIF-67）是一种适用于储能器件的电活性材料。在此，我们提出了一种合成ZIF-67衍生的镍钴层状双氢氧化物空心表面片状形态的新方法，其中氟硼酸钾用作结构导向剂。这些空心片在1 A g时具有1171 F g的最大比电容。由ZIF-67衍生物和碳电极组成的储能器件在功率密度为804 W kg时呈现出26 W h kg的最大能量密度。该器件在10000次充放电循环后显示出84%的良好循环稳定性。这些结果揭示了基于沸石咪唑（ZIF-67）的材料在下一代储能器件中的广阔应用前景。
