Effects of surface treatments on the adhesion strengths between polyether ether ketone and both composite resins and poly(methyl methacrylate).

BACKGROUND

This study evaluated the effects of three surface treatments-concentrated HSO, sodium borohydride (NaBH), and their combination-on the shear bond strengths between polyether ether ketone (PEEK) and both composite resins and poly(methyl methacrylate) (PMMA).

METHODS

PEEK specimens (n = 160) were randomly assigned to composite resin and PMMA groups, each of which was subdivided into normal and aging groups (n = 40), each comprising samples that were pristine (untreated) or treated with dimethyl sulfoxide (DMSO), NaBH, or concentrated HSO or sequentially treated with NaBH and concentrated HSO (n = 8). The shear bond strength (SBS) of the normal and aged specimens were measured. For the normal and treated specimens, the surface and cross-sectional morphologies were analyzed using scanning electron microscopy (SEM), the chemical bond modifications were investigated using X-ray photoelectron and attenuated total reflectance Fourier-transform infrared spectroscopies (XPS and ATR-FTIR, respectively), the mechanical strengths were measured using three-point bending tests, and the cytotoxicities were evaluated using cell-counting kit-8 (CCK-8) assays and 4',6-diamidino-2-phenylindole (DAPI) staining.

RESULTS

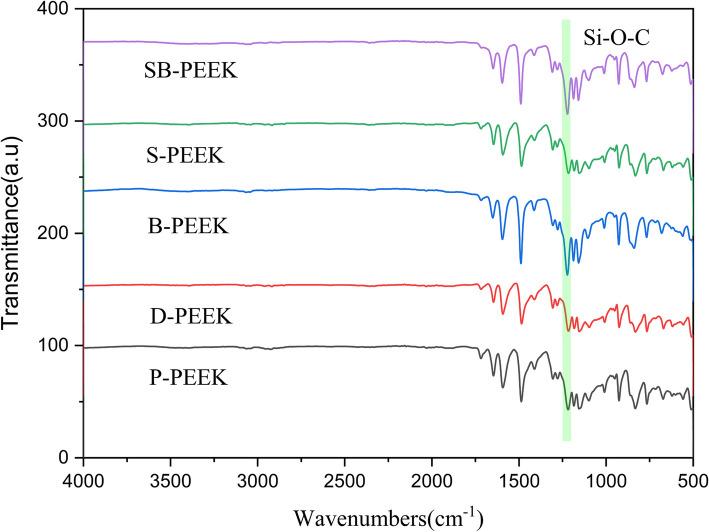

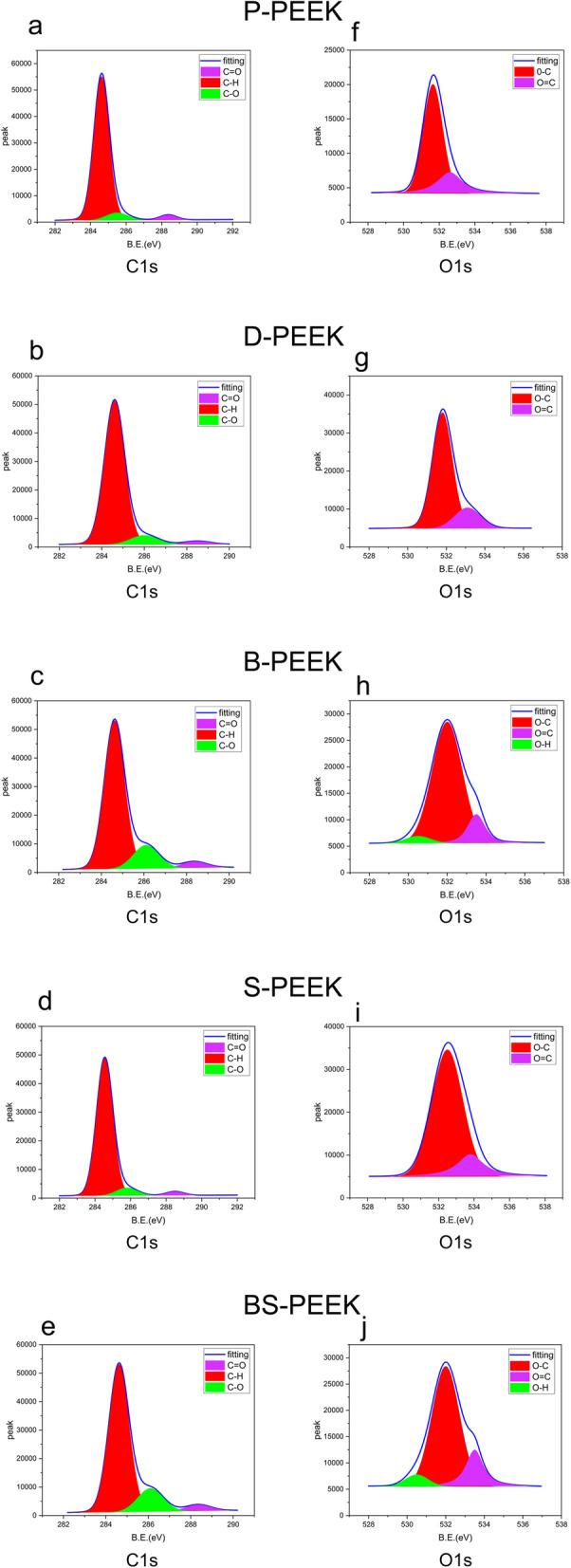

NaBH etched the PEEK surface, generating a fibrous texture, while concentrated HSO produced a surface possessing variously sized pores. Sequential treatment with NaBH and concentrated HSO produced dense, permeating pores. XPS confirmed that NaBH reduced carbonyl groups to hydroxyl groups on the PEEK surface. ATR-FTIR spectroscopy confirmed that the silane coupling agent grafted onto the PEEK surface, forming Si-O-C bonds. NaBH and concentrated HSO both strengthened the shear bonding between the PEEK and both the composite resins and PMMA (P < 0.05). The specimens sequentially treated with NaBH and 98% concentrated HSO possessed the strongest shear bonding (P < 0.05). The aged specimens sequentially treated with NaBH and concentrated HSO retained very strong shear bonds. CCK-8 cytotoxicity assays and DAPI staining confirmed that these surface treatments meet oral biocompatibility standards.

CONCLUSION

NaBH introduced chemical bonds to the PEEK surface, while concentrated-HSO-induced sulfonation enhanced the micromechanical interlocking between the PEEK and both the composite resins and PMMA. These combined physicochemical modifications significantly strengthened the adhesion between the PEEK and both the composite resins and PMMA and effectively strengthened PEEK's bonding.
